CDVI Elettroapriporta simmetrico con blocco e memoria invisibile 10-24V AC/DC JIS 1743-BT

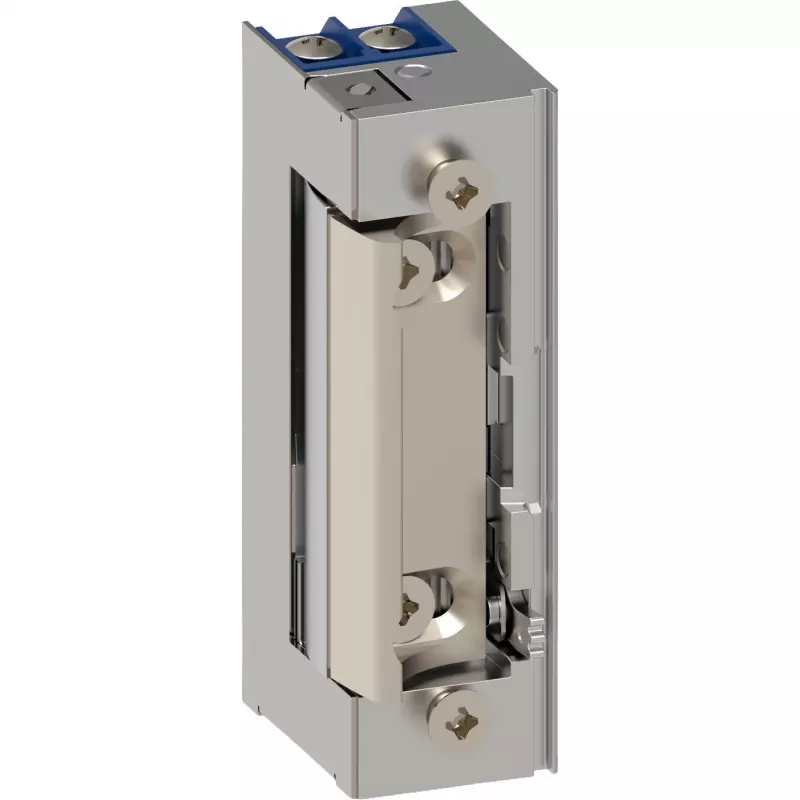

The CDVI SDTRINV1024 is a high-quality symmetrical electric strike designed for secure access control. Featuring invisible memory (latching) and a fail-secure operating mode, it ensures reliable locking even during power loss. Suitable for wooden, metal, and PVC doors, this strike offers adjustable latch depth and a mechanical release lever for permanent unlock.

Advantages

Robust zinc alloy construction with steel latch provides durability up to 200,000 cycles. The invisible memory function maintains the last state (locked/unlocked) after power interruption, enhancing security. Adjustable latch (3mm) allows fine-tuning for different door profiles.

Suitable for

• Access control systems on wooden, metal, and PVC doors
• Residential and commercial applications requiring fail-secure locking
• Integration with access control panels and keypads

Key specifications

• Operating Voltage: 10-24V AC/DC
• Holding Force: 3000 N (approx. 300 kg)
• Current Consumption: 280 mA (12V AC), 350 mA (12V DC), 140 mA (24V AC), 170 mA (24V DC)
• Durability: 200,000 cycles
• Material: Zinc alloy body, steel latch
• Operating Temperature: -20°C to +50°C
• Mounting: Flush mount

Recommendations

For optimal performance, use with a regulated power supply matching the voltage requirements. Ensure proper alignment of the strike with the door latch during installation.
