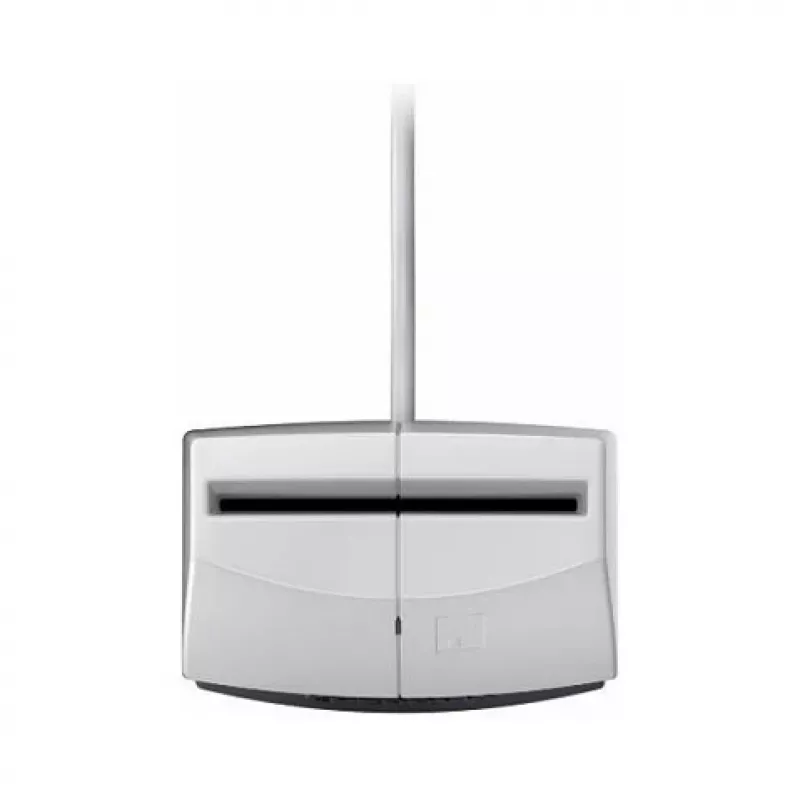

CHERRY ST-1150UB terminale smartcard USB-A grigio chiaro lettore di smartcard a contatto

For environments where secure card reading must be simple, fast, and utterly dependable, the CHERRY ST-1150UB strips away complexity without sacrificing compliance. Unlike generic readers that demand driver juggling or fail with certain card classes, this terminal pairs native CCID support with full ISO 7816 A/B/C coverage, so it works the moment it’s plugged into a USB-A port—on Windows, macOS, or Linux. The pale grey housing is built to survive daily handling, while the integrated status LED gives instant visual confirmation of every transaction.

Highlights

• Contact smart card terminal for ISO 7816 Class A, B, and C cards
• Supports T=0 and T=1 protocols, EMV 2000 Level 1 compliant
• USB 2.0 Full Speed with Type-A connector, bus powered—no external adapter
• CCID and PC/SC compliant for plug-and-play operation on major OS
• Robust pale grey plastic housing with >100,000 insertion cycles
• 1.75 m cable for flexible placement at desk or counter

In daily use

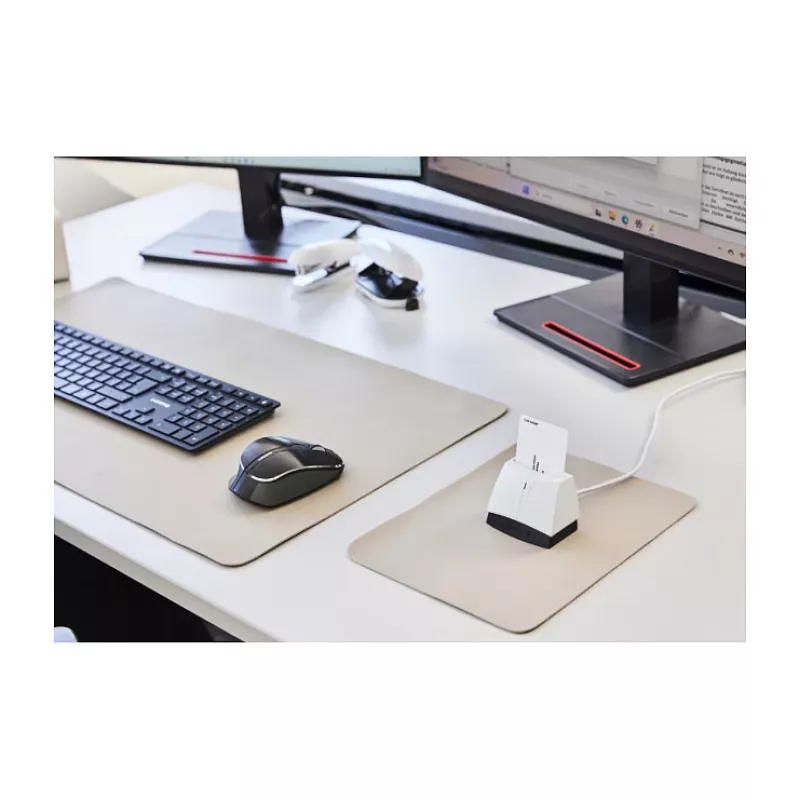

Connect the ST-1150UB to a free USB-A port and the operating system recognises it immediately—no driver installation required. Insert a contact smart card and the status LED confirms the read. The terminal remains stable during repeated card insertions thanks to its rugged build, and the 1.75 m cable allows positioning away from the host system. It operates silently and draws all power from the USB bus, keeping the workspace clutter-free.

Full specifications

• Brand: CHERRY
• Model: ST-1150UB
• MPN: ST-1150UB
• EAN: 4025112120565
• Interface: USB 2.0 Full Speed, USB Type-A
• Card type: Contact smart card
• Supported standards: ISO 7816 Class A, B, C
• Protocols: T=0, T=1
• Compliance: EMV 2000 Level 1, PC/SC, CCID
• Operating systems: Windows, macOS, Linux
• Cable length: 1.75 m
• LED indicator: Yes
• Card insertion cycles: >100,000
• Power source: USB bus powered
• Housing material: Robust plastic
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Humidity: 10% to 90% non-condensing
• Certifications: CE, FCC, VCCI, BSMI, KCC, WEEE, RoHS
• Plug and Play: Yes
• Product colour: Pale grey

Final note

The CHERRY ST-1150UB is a no-nonsense contact smart card terminal that delivers reliable performance for payment, authentication, and identification tasks—backed by CHERRY’s reputation for quality input devices.
