Chiave combinata Gedore 2297310 profondità 60 mm altezza 40 mm peso 98 g

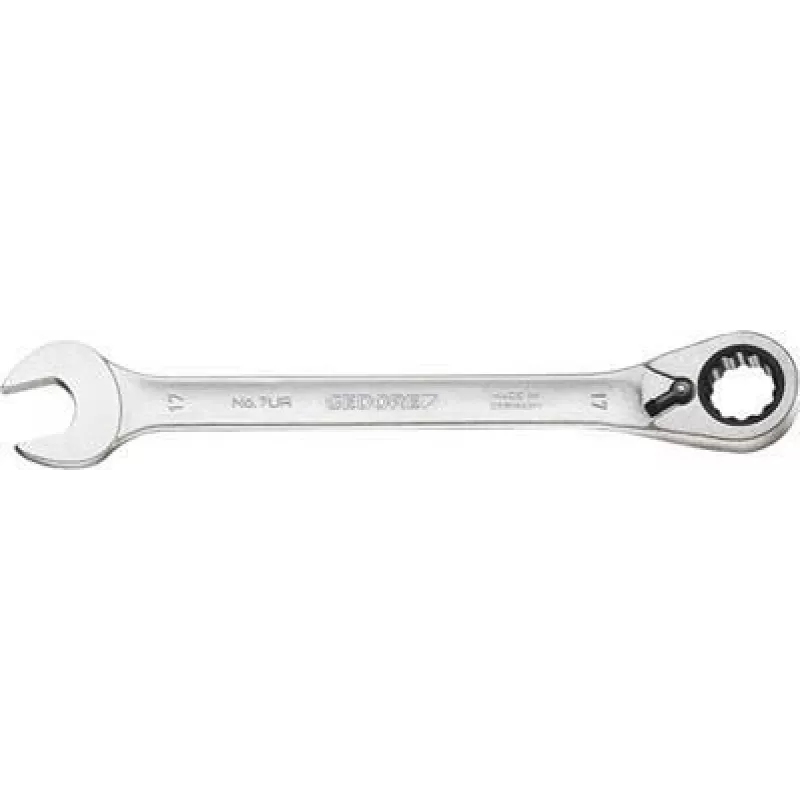

Combination wrench Gedore 2297310 with a depth of 60 mm and height of 40 mm. The tool features an offset ring end, UD profile and a hollow shaft for comfortable gripping. It is made from Gedore vanadium steel 31CrV3, hot-forged and matt chrome-plated for a non-glare finish. The jaw is precisely ground to the spanner size and the geometry is warp-resistant with a double T-girder effect.

Advantages

The ring end has a 13° offset from the shaft and the working angle is 7° for sizes 8–15 mm and 6° for sizes 16–24 mm, enabling access in confined spaces. The ratchet mechanism allows loosening and fast tightening via lever change, delivering high torque transfer. The hollow profile reduces weight while remaining stable, and treated locking insert and pawl increase wear resistance. The wrench combines proven Gedore jaw design with a stable hollow shaft and an improved U-20 ratchet mechanism.

Suitable for

Key specifications

How to use

Select the correct wrench size, position the ring or open end on the fastener and apply steady force. Use the ratchet function for quick tightening or loosening by changing the lever direction. For use as a bit ratchet, fit the separately ordered adaptor 7 RA or 7 RB. Ensure the jaw is fully engaged on the fastener to avoid slipping and damage.

Recommendations

Store the wrench clean and dry to prevent corrosion; avoid using the tool as a hammer or for prying. Check regularly for wear on the ratchet pawl and locking insert and replace if damaged. Use appropriate torque and correct size to preserve the precisely ground jaw.
