Chief TS318SU supporto a parete per TV 132,1 cm (52") nero

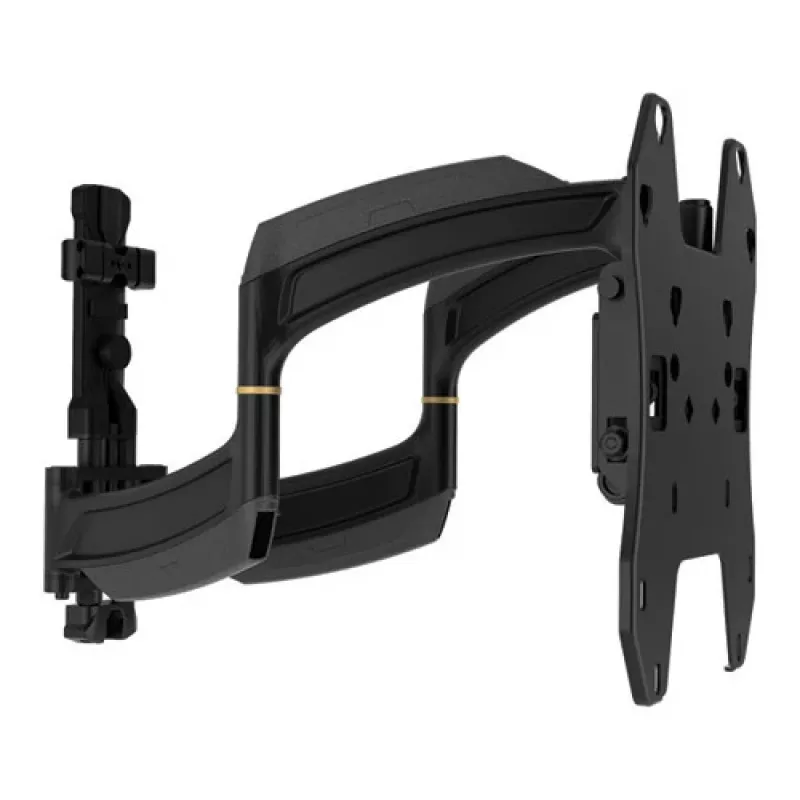

The Chief TS318SU TV mount is a dual swing arm wall mount designed for screens from 26" to 52" with a maximum load of 34 kg. The slim THINSTALL-style profile collapses to 1.3" (33 mm) from the wall and extends up to 18" (457 mm), offering flexible placement for LED, LCD and plasma TVs. The mount supports VESA patterns from 100 x 100 mm up to 600 x 400 mm and has a tilt range of -15° to 15° for convenient angle adjustments.

Advantages

The TS318SU provides a very low profile when retracted while allowing a full 18" (457 mm) extension to maximize viewing potential. Its Centris low-profile tilt gives up to 15° fingertip tilt for easy angle correction, and post-installation height adjustment of 1" (25 mm) lets you fine-tune screen alignment. Integrated cable management with enclosed, tool-free covers and a wide open wall plate simplifies routing power and signal cables for a clean installation. The black finish is designed to blend with most interiors.

Suitable for

• Mounting 26"–52" LED, LCD or plasma TVs
• Situations requiring a very low-profile wall mount that can extend
• Rooms where cable routing and a tidy installation are important
• Displays compatible with VESA 100 x 100 up to 600 x 400 mm

Key specifications

• Maximum weight capacity: 34 kg
• Suitable screen size: 26"–52"
• VESA compatibility: 100 x 100 mm to 600 x 400 mm
• Tilt range: -15° to 15° (Centris low-profile tilt)
• Wall clearance (collapsed): 1.3" (33 mm)
• Maximum extension: 18" (457 mm)
• Post-installation height adjustment: 1" (25 mm)
• Colour: Black

How to use

Attach the wall plate to a suitable wall stud or structural surface following the included mounting instructions and local building codes. Secure the arm assembly and mount the TV to the bracket using the appropriate VESA holes and hardware for your display. Use the Centris tilt function to set the desired viewing angle and use the 1" (25 mm) post-installation height adjustment to align the screen precisely. Route power and signal cables through the enclosed cable covers and the wide open wall plate for a neat finish.

Recommendations

Ensure total TV weight does not exceed 34 kg and that the selected mounting location can support the combined load. Verify VESA hole pattern compatibility before installation and use appropriate fasteners for your wall type. For safety and optimal results, consider professional installation if you are not experienced with wall mounts.
