Cimco 187012 Terminale a crimpare 1,5 mm² parzialmente isolato nero 100 pezzi

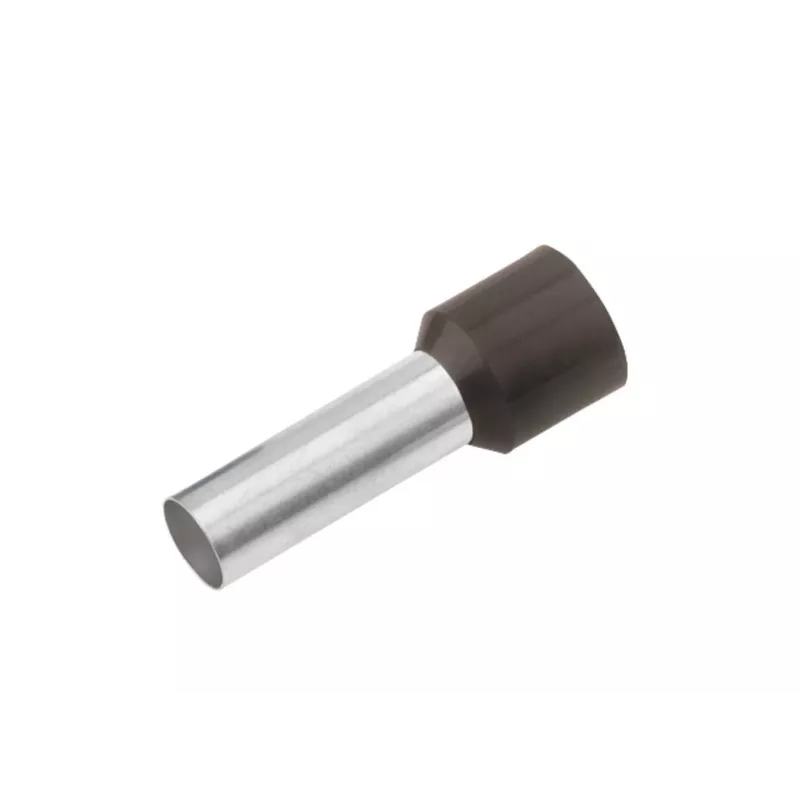

This Cimco wire end sleeve stands out with its partially insulated design, offering reliable termination for fine-stranded copper conductors while keeping the connection compact. The black polypropylene insulation provides clear visual identification and mechanical protection at the entry point.

Highlights

• Nominal cross-section: 1.5 mm²
• Partially insulated with black polypropylene collar
• Tin-plated electrolytic copper sleeve for corrosion resistance
• Pack of 100 pieces
• Halogen-free

In daily use

The sleeve length of 8 mm and total length of 14 mm suit standard terminal blocks and connectors. The tin plating ensures low contact resistance and long-term reliability in control cabinets and field wiring.

Full specifications

• Product type: Wire end sleeve (ferrule)
• Insulation type: Partially insulated
• Nominal cross-section: 1.5 mm²
• Colour: Black
• Quantity per pack: 100 pieces
• Sleeve material: Electrolytic copper (E-Cu)
• Sleeve surface treatment: Tin-plated
• Insulation material: Polypropylene (PP)
• Sleeve length: 8 mm
• Total length: 14 mm
• Temperature resistance: -40 °C to +105 °C
• Conductor compatibility: Fine-stranded copper conductors
• Halogen-free: Yes

Final note

A dependable choice for professional electrical installations requiring secure, vibration-resistant terminations.
