Cimco 187134 Capicorda 25 mm² parzialmente isolato nero 50 pz.

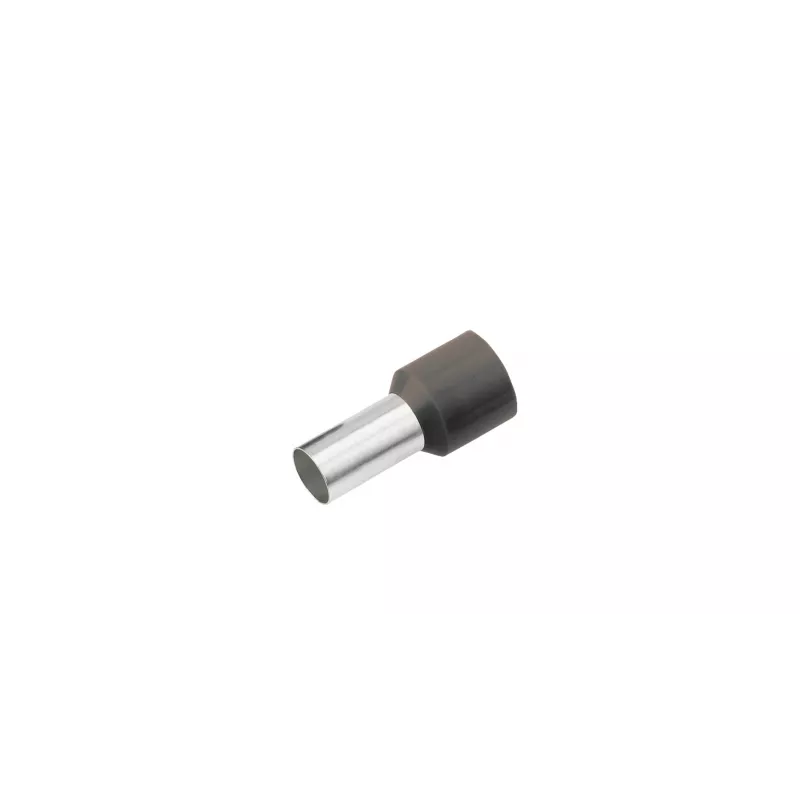

Wire end ferrule for fine-stranded conductors with a cross-section of 25 mm², featuring a tin-plated electrolytic copper body and a black polypropylene insulation collar. The flared entry simplifies conductor insertion, and the partial insulation provides reliable strain relief and protection against fraying during crimping.

Advantages

Tin-plated copper ensures excellent conductivity and corrosion resistance. The polypropylene insulation is halogen-free and withstands temperatures from -40°C to +105°C. The flared entry allows quick, damage-free insertion of fine-stranded conductors. Crimp connection creates a secure, gas-tight joint that prevents wire breakage at the clamping point.

Suitable for

• Fine-stranded copper conductors with 25 mm² cross-section
• Control cabinets, switchgear, and industrial wiring
• Applications requiring reliable, vibration-resistant terminations
• Use with standard crimping tools for wire end ferrules

Key specifications

• Type: Wire end ferrule, partially insulated
• Conductor cross-section: 25 mm²
• Colour: Black
• Material: Electrolytic copper (E-Cu), tin-plated
• Insulation: Polypropylene (PP), halogen-free
• Overall length: 20 mm
• Insulation length: 12 mm
• Inner diameter: 7.3 mm
• Outer diameter (insulation): 9.5 mm
• Temperature range: -40°C to +105°C
• Complies with DIN 46228 Part 4
• Pack quantity: 50 pieces

Recommendations

For secure and durable terminations of 25 mm² fine-stranded conductors, pair these ferrules with a calibrated crimping tool that matches the ferrule size. Always verify the crimp by visual inspection and a pull test.
