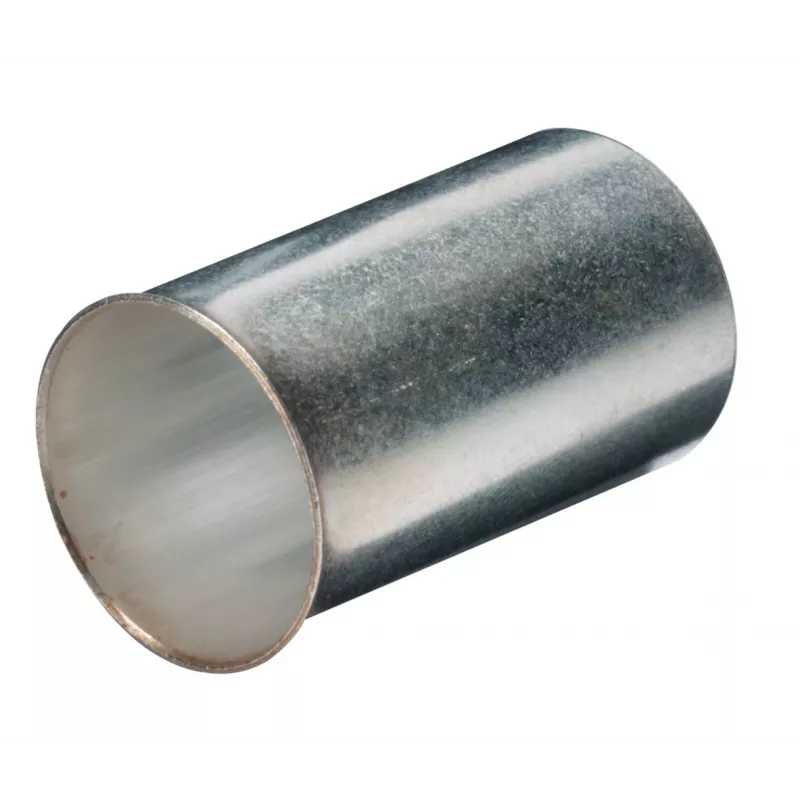

Cimco 187470 puntalino 70 mm² rame non isolato stagnato 100 pz.

When terminating large stranded copper conductors in industrial panels, switchgear or control cabinets, a reliable crimp connection is essential. The Cimco 187470 wire end ferrule provides a secure, gas-tight crimp for 70 mm² conductors, ensuring low contact resistance and long-term stability. Made from electrolytic copper with a tin coating, it offers excellent conductivity and corrosion protection.

Who is it for

Electricians, panel builders and maintenance technicians working with high-current power distribution, motor connections or grounding systems where large cross-section conductors must be terminated safely and durably.

Main features

• For 70 mm² stranded copper conductors
• Uninsulated sleeve, tinned surface for corrosion resistance
• DIN 46228 Part 1 compliant dimensions
• Pack of 100 pieces
• Crimp connection for reliable, vibration-proof termination

Specifications

• Wire cross-section: 70 mm²
• Insulation: uninsulated
• Material: electrolytic copper (E-Cu), tin-plated
• Overall length: 30 mm
• Crimp barrel length: 20 mm
• Inner diameter: 11.5 mm
• Outer diameter: 13.5 mm
• Wall thickness: 1.0 mm
• Temperature range: -40°C to +125°C
• Standard: DIN 46228 Part 1
• Quantity: 100 pieces

Tips

Use a hexagonal crimping tool sized for 70 mm² ferrules to achieve a full, uniform compression. Ensure the conductor is fully inserted up to the barrel end before crimping.
