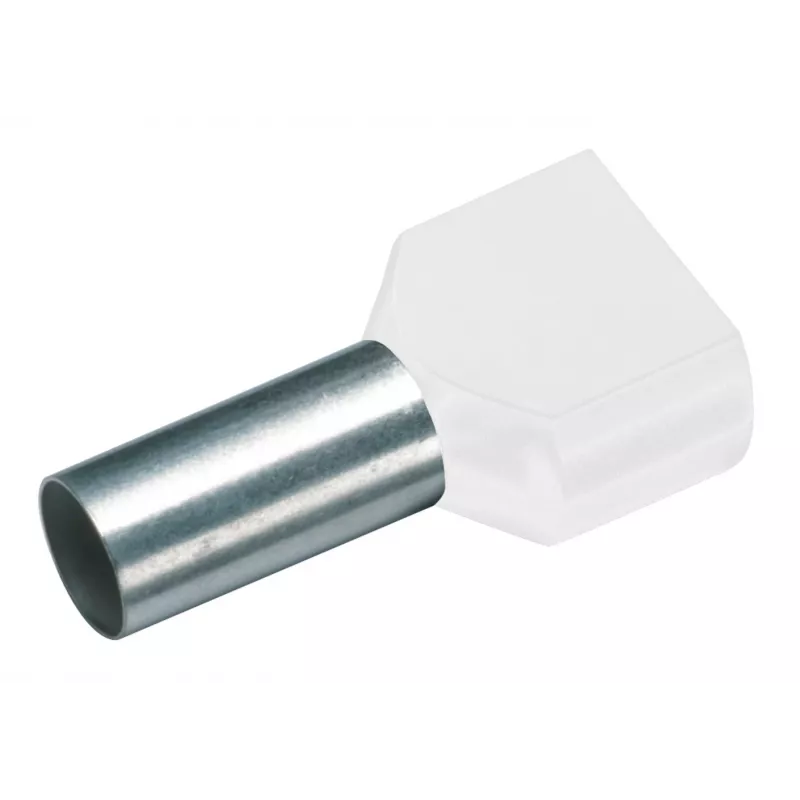

Cimco 187717 Capicorda doppio 0,5 mm² parzialmente isolato bianco 100 pezzi

Twin wire end sleeve for reliable crimp connections in electrical installations. The 0.5 mm² sleeve accommodates two conductors and features a white partially insulated collar for secure, vibration-resistant terminations.

Advantages

Electrolytic copper sleeve with tin plating ensures excellent conductivity and corrosion resistance. The halogen-free insulation collar provides reliable strain relief and easy identification by colour code. Crimp connection per DIN 46228 Part 4 guarantees consistent quality.

Suitable for

• Terminating two 0.5 mm² conductors in control cabinets
• Industrial wiring and panel building
• Applications requiring vibration-resistant connections

Key specifications

• Nominal cross-section: 0.5 mm² (per wire)
• Sleeve material: Electrolytic copper, tin-plated
• Insulation: Partially insulated, white
• Total length: 14 mm
• Metal sleeve length: 8 mm
• Insulation collar length: 6 mm
• Inner diameter: 1.3 mm
• Outer diameter (collar): 2.5 mm
• Flange diameter: 2.5 mm
• Temperature range: -40°C to +105°C
• Halogen-free: Yes
• RoHS compliant: Yes
• Quantity: 100 pieces

Recommendations

Use with a suitable crimping tool for twin wire end sleeves to achieve a gas-tight connection. Select the sleeve size based on the total cross-section of both conductors.
