CIMCO viti a testa cilindrica M4x16 DIN84a zincate 190832

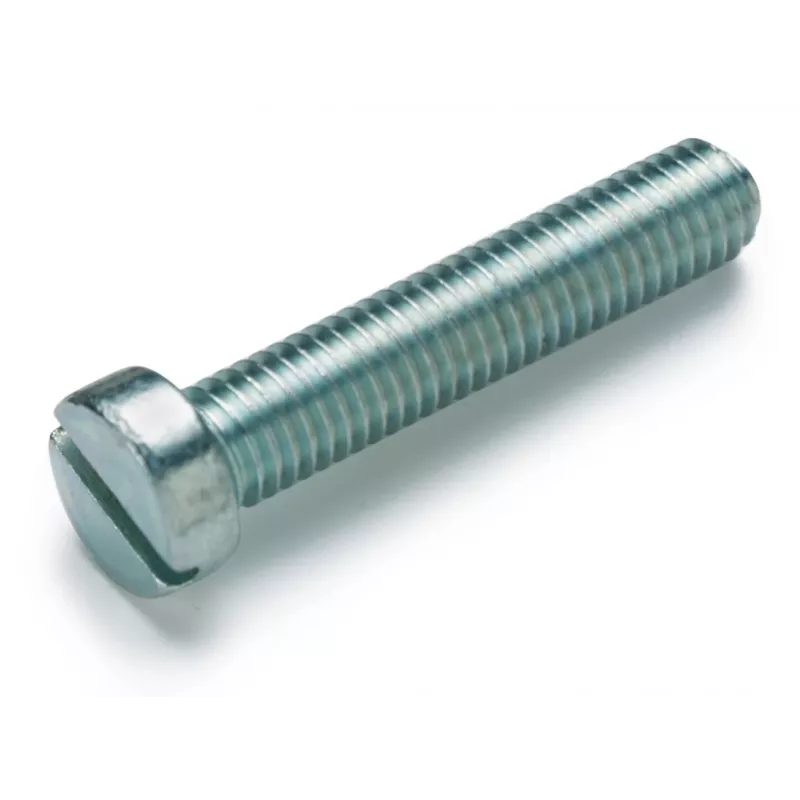

These CIMCO cylindrical screws are manufactured to DIN 84a, ensuring consistent dimensions and reliable fastening for general-purpose applications. The slotted cheese head design allows for straightforward installation with a flathead screwdriver, while the zinc-plated steel construction provides moderate corrosion protection.

Highlights

• Metric M4 thread with 16 mm length
• Slotted cheese head per DIN 84a
• Zinc-plated steel for corrosion resistance
• Coarse thread pitch of 0.7 mm

In daily use

Ideal for metal-to-metal or metal-to-plastic connections, these screws offer a dependable hold in machinery, equipment, and general fastening tasks. The slotted drive is compatible with common flathead screwdrivers, making them easy to install and remove.

Full specifications

• Thread diameter: M4
• Screw length: 16 mm
• Head diameter: 7 mm
• Head height: 2.8 mm
• Slot width: 1.0 mm
• Slot depth: 1.6 mm
• Thread pitch: 0.7 mm
• Material: Steel
• Surface finish: Zinc plated

Final note

A reliable choice for standard fastening needs, combining DIN compliance with practical corrosion protection.
