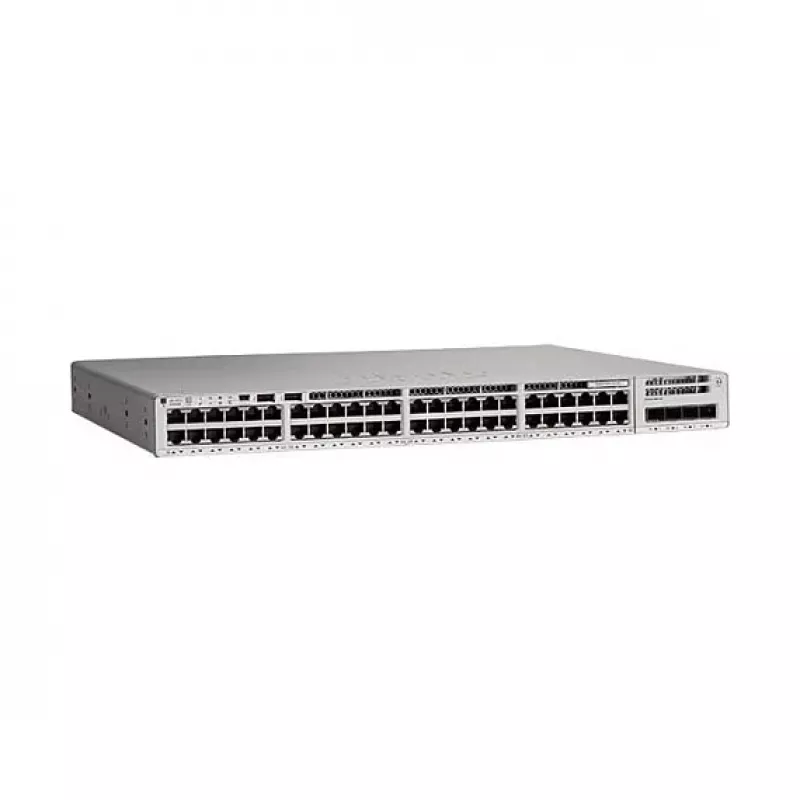

Cisco Catalyst 9200 switch Layer 3 48 porte PoE+ Network Essentials (C9200-48PL-E)

Modern enterprise networks demand high performance, robust security, and seamless scalability. The Cisco Catalyst 9200 48-Port PoE+ Network Essentials Layer 3 Switch (C9200-48PL-E) meets these demands, providing a solid foundation for your business. With 48 Gigabit Ethernet ports and a 740W PoE budget, this switch powers IP phones, wireless access points, and IoT devices while delivering reliable connectivity.

Who is it for

Ideal for small to medium-sized businesses, branch offices, and enterprise access layer deployments. It suits organizations needing a managed, secure, and scalable network infrastructure.

Main features

• 48 x 10/100/1000Base-T ports with PoE+ (IEEE 802.3at) support
• 740W PoE power budget for powering devices
• Layer 3 routing capabilities (static, RIP, OSPF limited, EIGRP stub)
• 1 network module slot for optional uplink modules (4x 1G SFP, 4x 10G SFP+, or 2x 25G SFP28)
• Switching capacity of 104 Gbps and forwarding rate of 154.76 Mpps
• Enhanced security: IEEE 802.1X, ACLs, DHCP snooping, IP Source Guard
• Management via CLI, SNMP, Web UI, and Cisco DNA Center ready
• Stacking with Cisco StackWise-160 (optional, up to 8 switches)

Specifications

• Switch Type: Managed, Layer 3
• Number of Ports: 48
• Ethernet Ports: 48 x 10/100/1000Base-T (RJ-45)
• PoE Support: PoE+ (IEEE 802.3at)
• PoE Power Budget: 740 W
• Uplink Slots: 1 x Network Module Slot
• Switching Capacity: 104 Gbps
• Forwarding Rate: 154.76 Mpps
• MAC Address Table: 16,000 entries
• VLANs Supported: 1024
• Jumbo Frame Support: 9198 bytes
• Routing Protocols: Static, RIP, OSPF (limited), EIGRP Stub
• Security Algorithms: IEEE 802.1X, ACLs, DHCP snooping, IP Source Guard
• Management Protocols: SNMP v1/v2c/v3, RMON, CLI, Web UI
• Stacking Capability: Cisco StackWise-160 (optional, up to 8 switches)
• Form Factor: 1U Rack-mountable
• Power Redundancy: Optional redundant power supplies
• License Level: Cisco Network Essentials
• Processor: Dual-core x86 CPU

Tips

To maximize performance, consider installing optional uplink modules for high-speed connectivity. Use the PoE budget wisely to power critical devices. For enhanced security, configure ACLs and DHCP snooping.
