Citofono audio Fanvil I16SV-02P

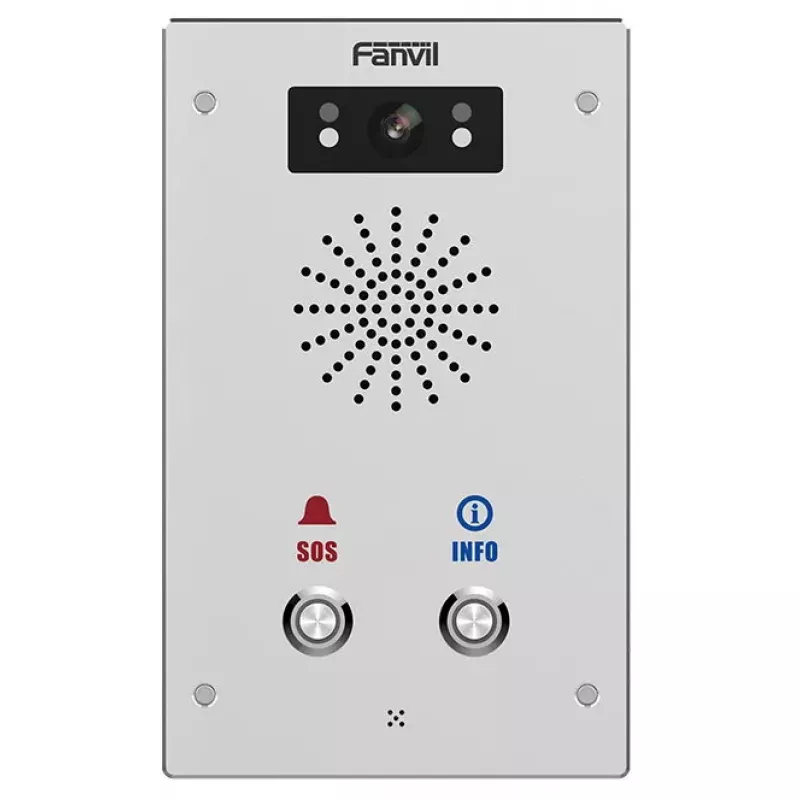

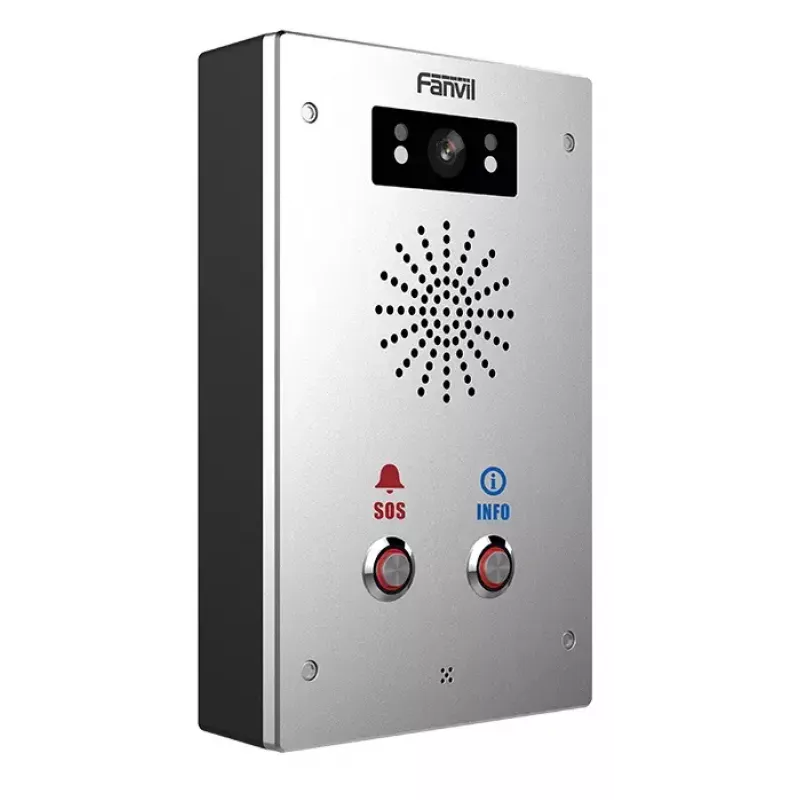

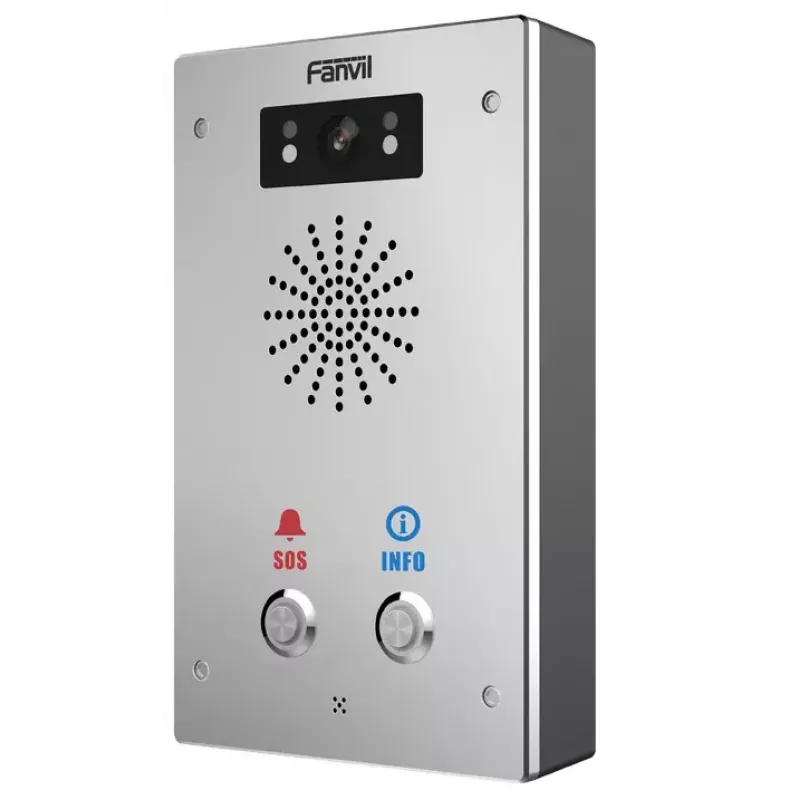

The Fanvil I16SV-02P is a stainless-steel audio intercom system designed for wall mounting. It combines audio intercom, video intercom capability, and broadcasting functions in a compact, durable housing. The device features two programmable shortcut buttons and wired network connectivity via RJ-45. With IP65 dust and water resistance and IK10 impact protection, the unit is suitable for both indoor and outdoor installations where reliable voice communication and monitoring are required.

Advantages

The Fanvil I16SV-02P offers robust protection against dust, water and physical impact thanks to its IP65 and IK10 ratings, and its stainless-steel construction ensures long-term durability. Two shortcut buttons simplify access to common functions, while the RJ-45 wired interface provides stable network connectivity. Its wall-mount form factor and compact dimensions (195 × 120 × 40 mm) make installation straightforward in a variety of locations.

Suitable for

• Entrance control and access points in residential and commercial buildings
• Perimeter gates and outdoor security posts
• Parking garages and loading bays
• Public facilities requiring broadcasting and intercom communication

Key specifications

• Model: Fanvil I16SV-02P
• Material: stainless steel
• Protection rating: IP65 (dust/water), IK10 (impact)
• Connectivity: RJ-45 wired network
• Buttons: 2 programmable shortcut buttons
• Dimensions: 195 mm (W) × 120 mm (D) × 40 mm (H)
• Manufacturer code (MPN): I16SV-02P
• EAN: 6937295604184

How to use

Mount the Fanvil I16SV-02P on a suitable wall surface following local installation standards and ensure the unit is positioned to protect the RJ-45 connector from direct weather exposure where possible. Connect the device to the network using the RJ-45 port and configure SIP settings on your VoIP/communication platform according to the Fanvil provisioning guide. Program the two shortcut buttons to required functions such as direct call, broadcast or emergency alert. Verify audio and, if applicable, video functionality and adjust volume or network parameters as needed.

Recommendations

Install the intercom at a recommended height for user access and consider adding a sheltered mounting location in exposed outdoor sites. Regularly inspect seals and fastenings to maintain IP65 and IK10 protection; schedule periodic functional tests to ensure reliable audio and broadcasting performance.
