CLUB3D cavo USB Type-C a DP 1.4 8K60Hz M/M 1,8m/5,9ft

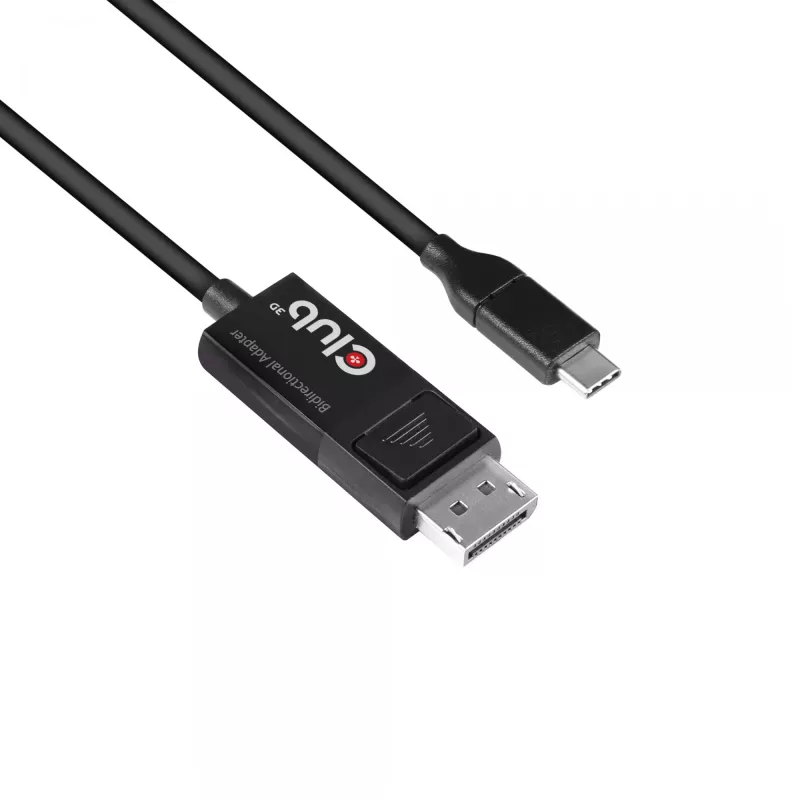

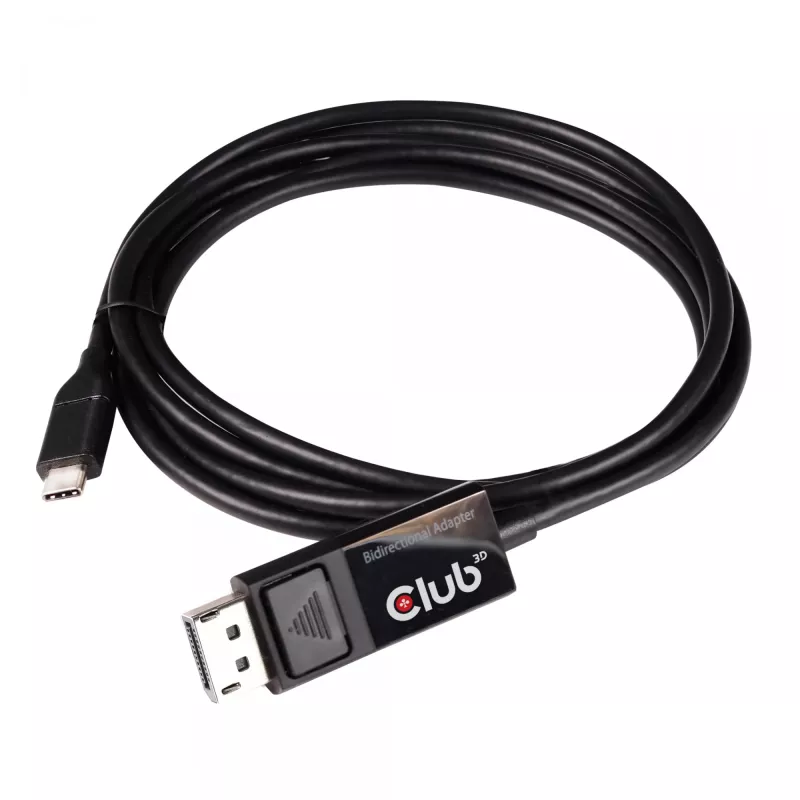

The Club 3D CAC-1557 is a USB Type-C to DisplayPort 1.4 cable that converts a USB-C source with DisplayPort Alternate Mode to a DisplayPort 1.4 monitor, TV or projector. The cable is bus-powered from the USB-C port and requires no external power, making it suitable for modern notebooks, MacBook (Pro) and tablets.

Advantages

This USB-C to DisplayPort 1.4 cable supports up to 4K UHD at 120Hz or 8K at 60Hz with HDR for sharp video and high dynamic range. It delivers up to 8 channels of digital audio and provides smooth motion at high frame rates, useful for gaming, video playback and high-resolution desktop work. The cable is compatible with devices that support DisplayPort Alternate Mode over USB-C and works across common operating systems.

Key specifications

• Model: CAC-1557
• Interface: USB Type-C (DisplayPort Alt Mode) to DisplayPort 1.4
• Maximum video: 8K @ 60Hz or 4K @ 120Hz with HDR
• Audio: up to 8 channels digital audio
• Power: bus-powered from USB-C port (no external power required)
• DP Dual Mode (DP++) support: not supported
• Compatibility: devices with USB-C DisplayPort ALT Mode 1.4; supports major OS including macOS, Windows and Chrome OS

How to use

Connect the USB-C end to a source device that supports DisplayPort Alternate Mode and the DisplayPort end to a monitor, TV or projector. Ensure the source device’s USB-C port supports DisplayPort ALT Mode 1.4 and set the display input to the correct DisplayPort source. No external power is needed; the cable draws power from the USB-C port. Adjust resolution and refresh rate in the operating system or display settings to match the monitor’s capabilities.

Recommendations

Check your device manual to confirm that the USB-C port supports DisplayPort ALT Mode 1.4. For optimal performance at high resolutions and refresh rates, use a DisplayPort 1.4 compatible display and updated graphics drivers on your host device.
