CLUB3D HDMI™ 2.0 UHD 4K60Hz SwitchBox 4 Porte con telecomando IR

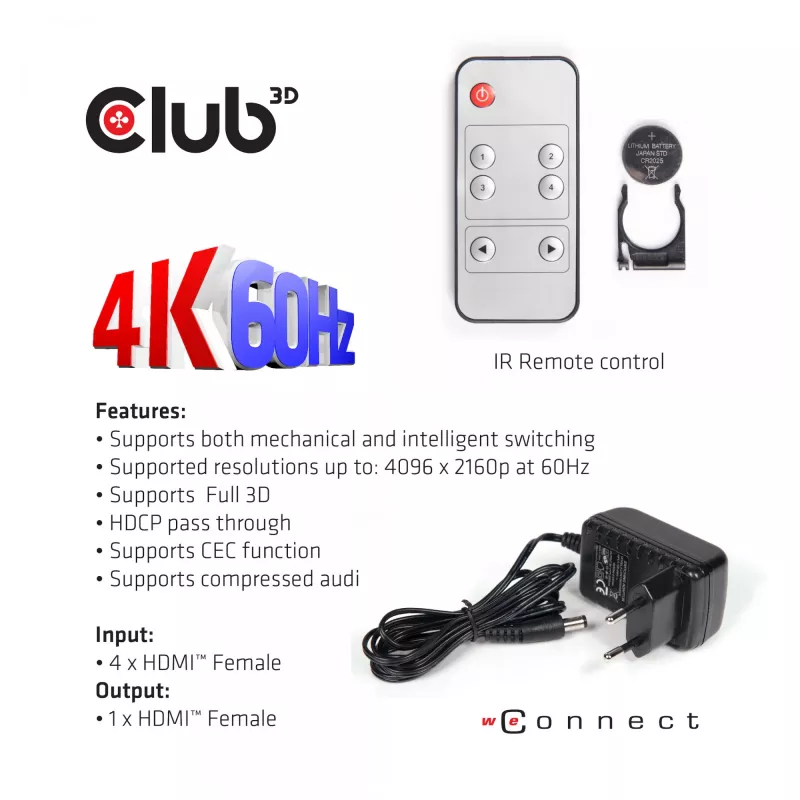

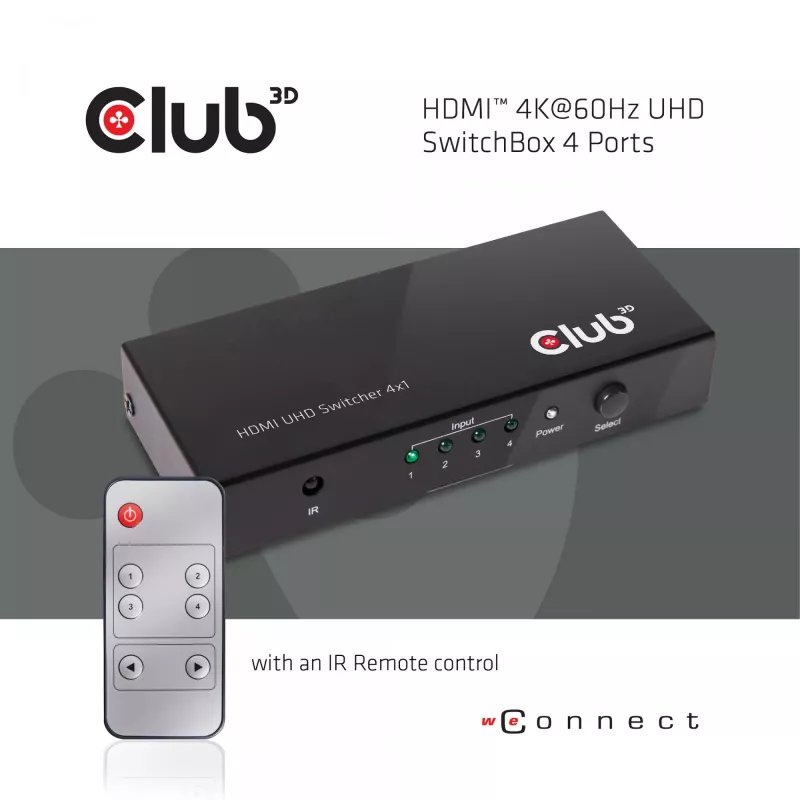

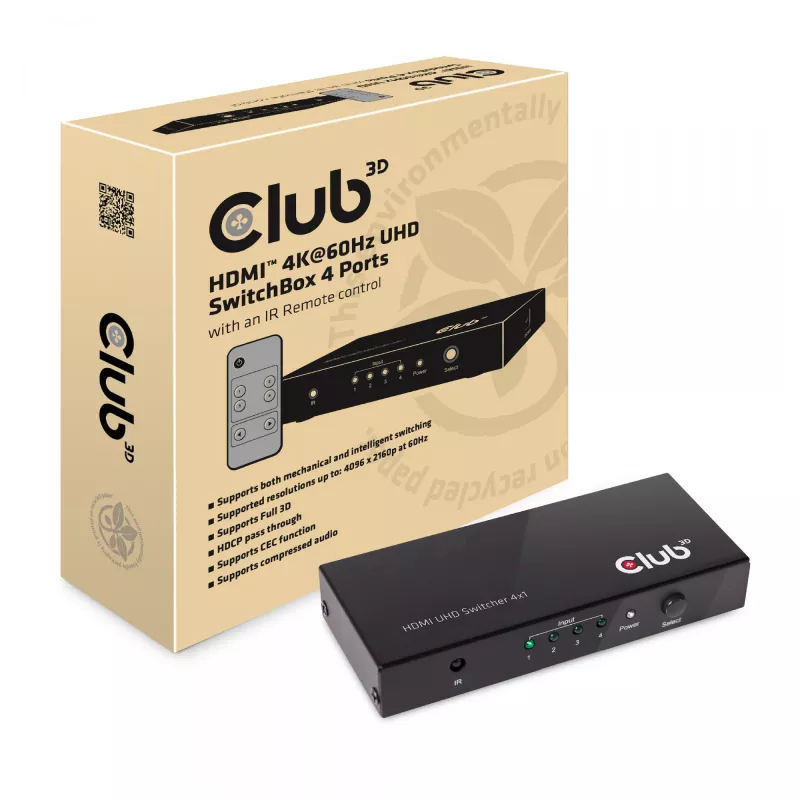

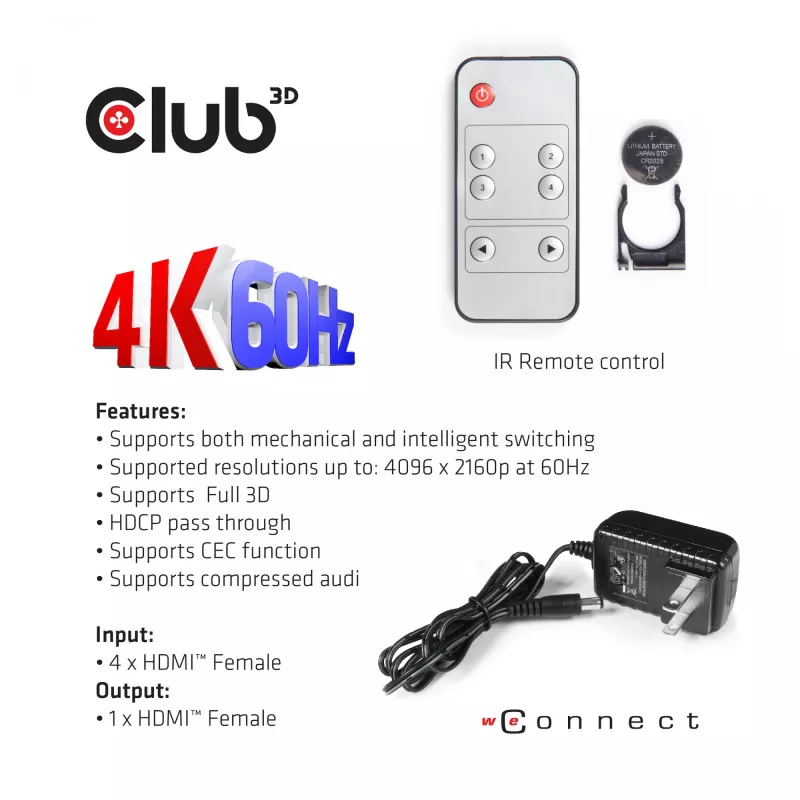

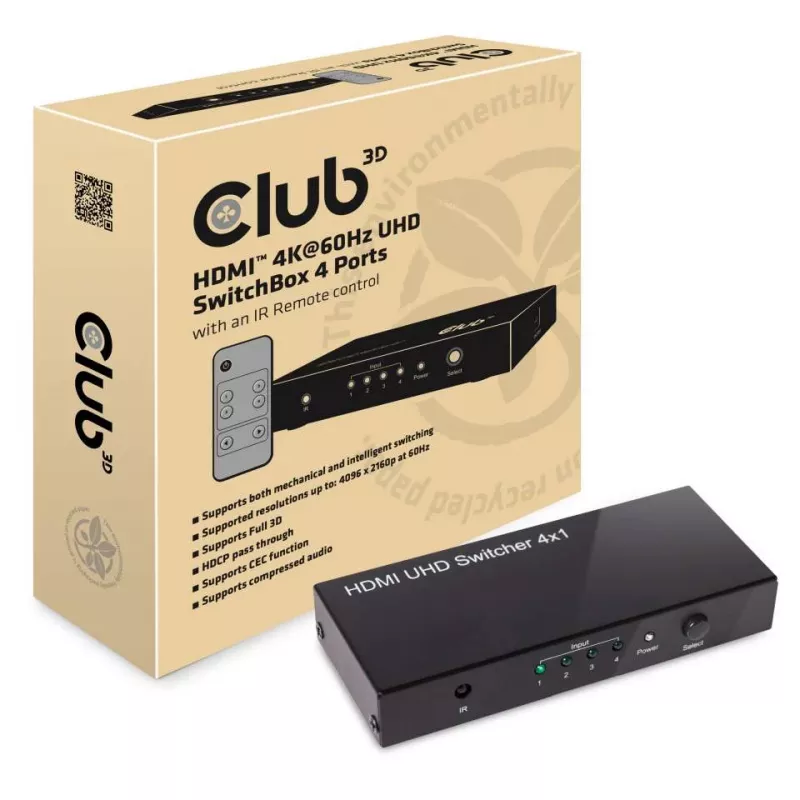

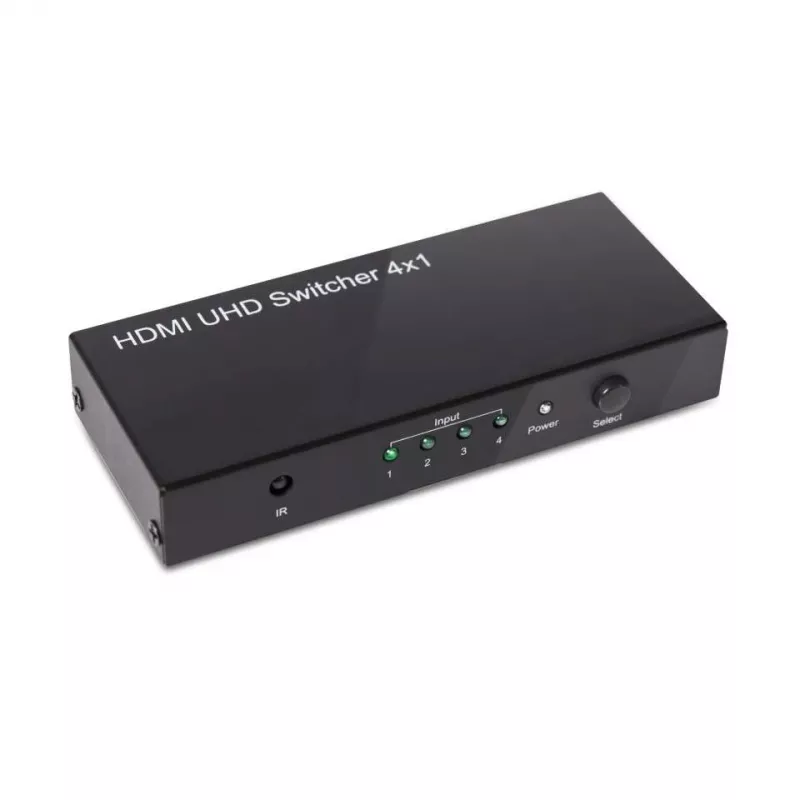

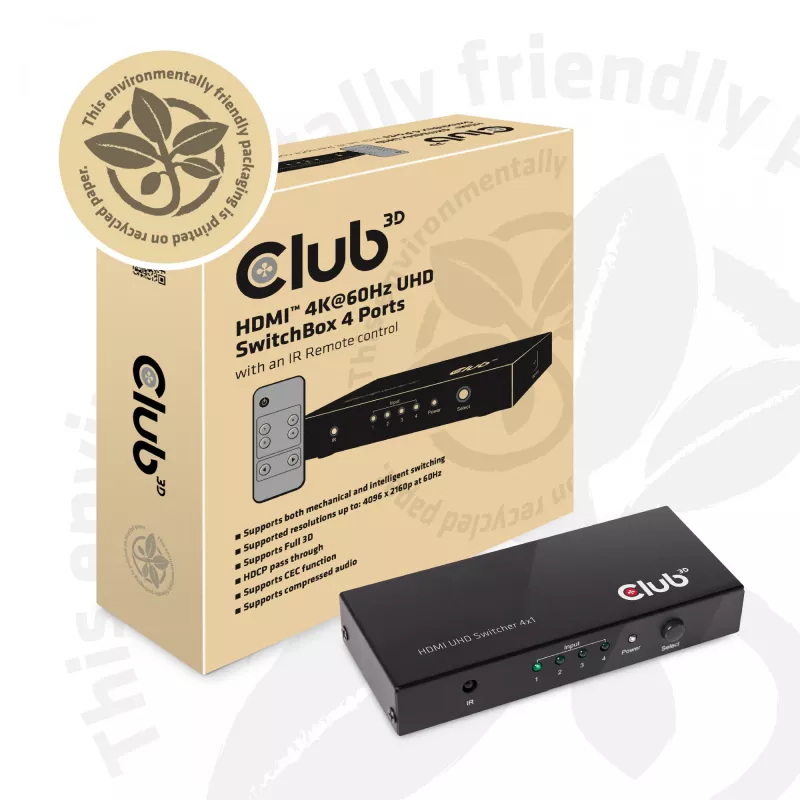

The CLUB3D HDMI™ 2.0 UHD 4K60Hz SwitchBox (CSV-1370) is a compact metal-bodied 4-input, 1-output HDMI switcher that routes HDMI video and digital audio from any of four sources to a single 4K UHD display. It supports resolutions up to 4096 x 2160 at 60 Hz and is supplied with an IR remote for convenient source selection. With a sturdy matte black metal casing and small footprint, the unit is suitable for home entertainment and workplace setups.

Advantages

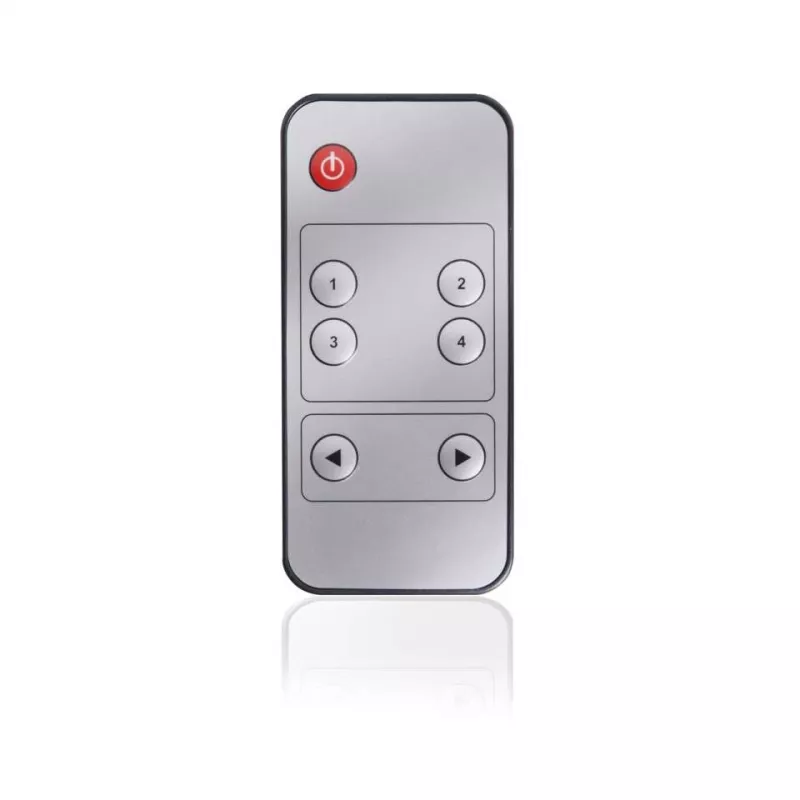

The switch box supports HDMI 2.0 bandwidth for 4K@60Hz signals and transmits both video and digital audio. Its metal housing provides durability while keeping the device compact and lightweight. An included IR remote enables easy switching between four HDMI inputs without moving cables or devices.

Suitable for

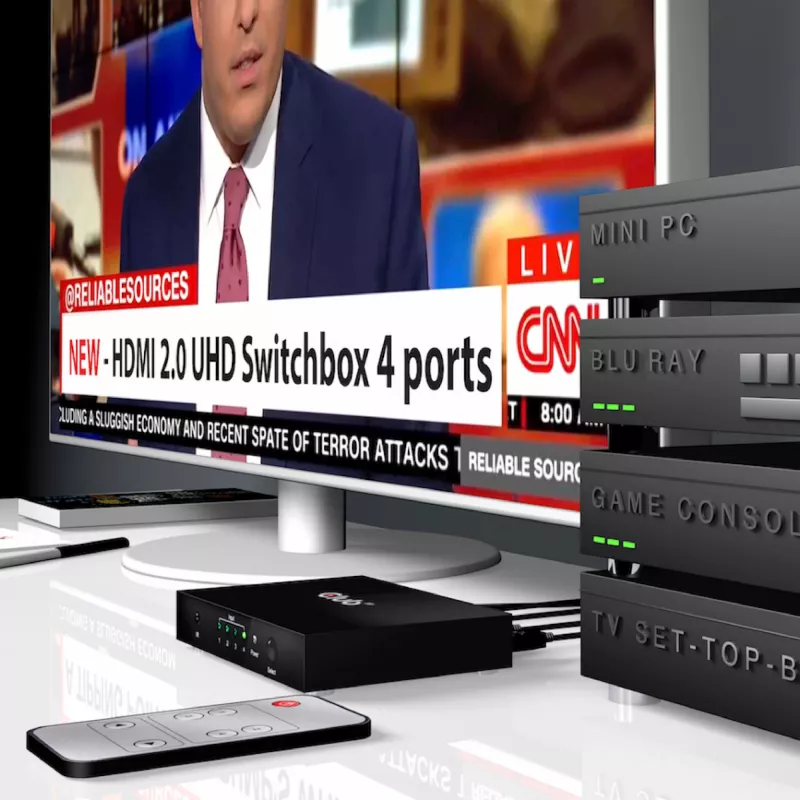

• Home theatre systems with multiple HDMI sources (set-top box, game console, Blu-ray player)
• Small office or meeting-room AV setups
• Connecting several HDMI devices to a single 4K TV, monitor or projector

Key specifications

• Model: CSV-1370
• Brand: club 3d
• Video standard: HDMI 2.0
• Maximum resolution: 4096 x 2160 @ 60 Hz

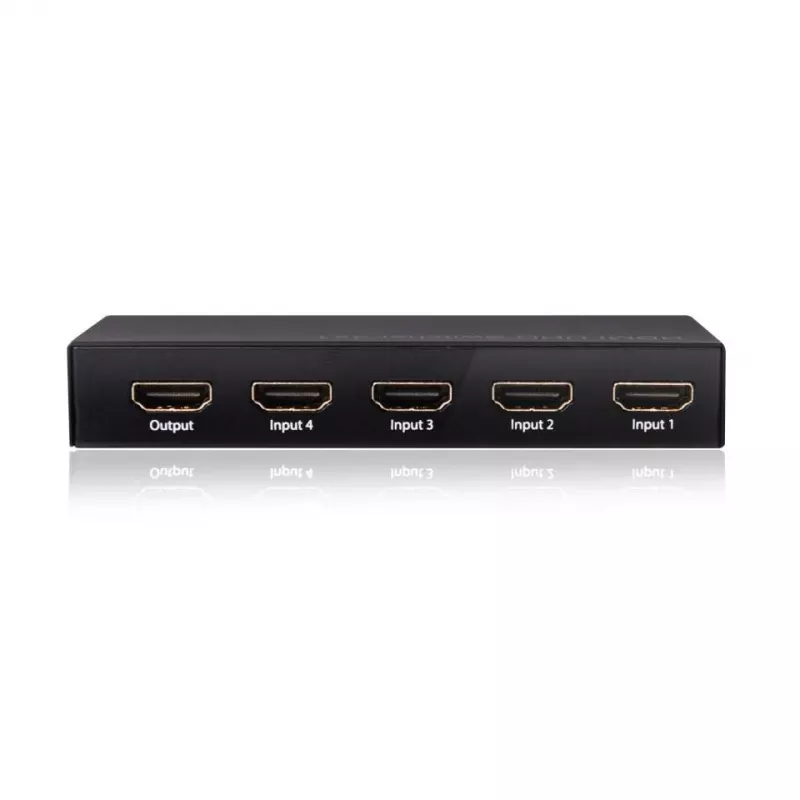

• Inputs / outputs: 4 x HDMI inputs, 1 x HDMI output
• Power: 5 V AC input, typical consumption 5 W
• Colour: Matte black
• Dimensions: 122 mm x 20 mm x 50 mm
• Weight: 0.15 kg

How to use

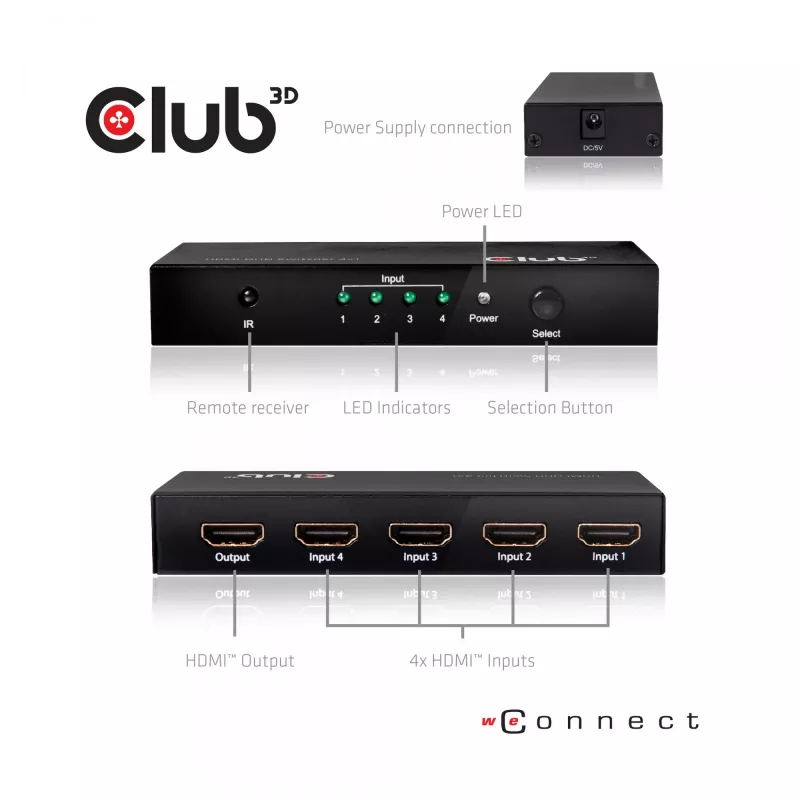

Place the switch box near your display and connect the HDMI output to the TV, monitor or projector using a quality HDMI cable. Connect up to four HDMI source devices to the inputs. Plug in the 5V power adapter. Use the front-panel button or the supplied IR remote to select the active HDMI input. The device will route both video and digital audio from the selected source to the connected display.

Recommendations

For best results use high-speed HDMI cables rated for 18 Gbps or HDMI 2.0 to ensure reliable 4K@60Hz transmission. Place the unit in a well-ventilated area and avoid exposing it to extreme temperatures or moisture. If HDCP-protected content fails to display, check source device and display HDCP compatibility and try power-cycling the switch and connected devices.
