Dock portatile CLUB3D 10-in-1 USB Type-C® 10Gbps a HDMI™ 8K30Hz PD3.1 max. 140 Watt

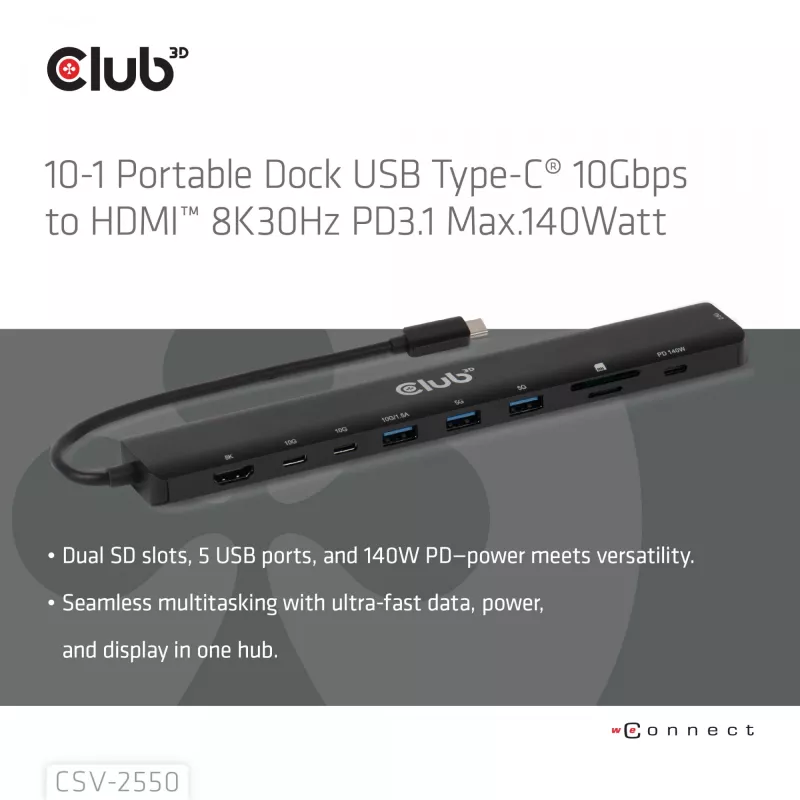

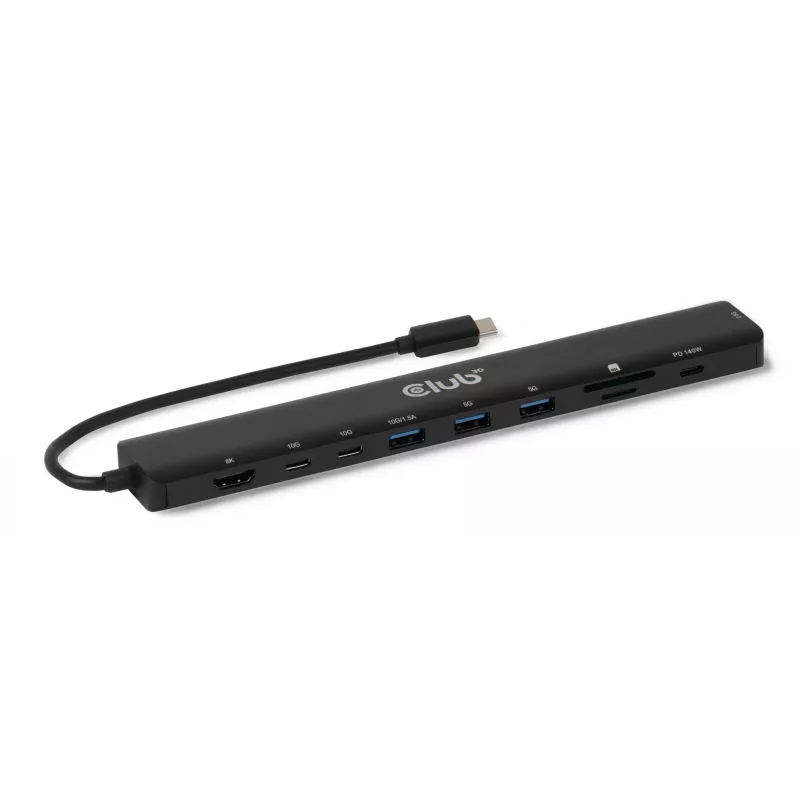

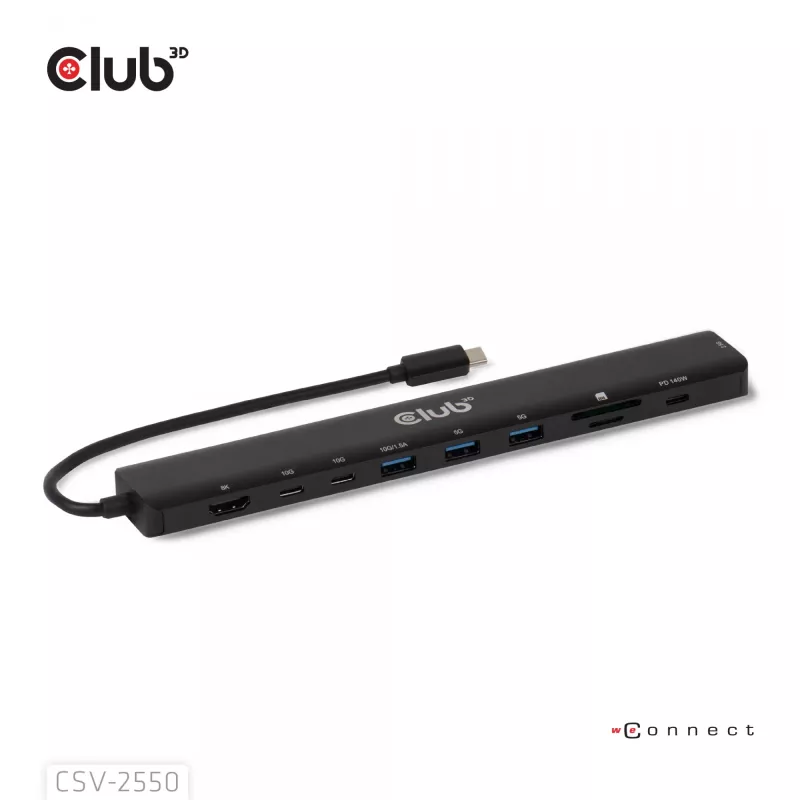

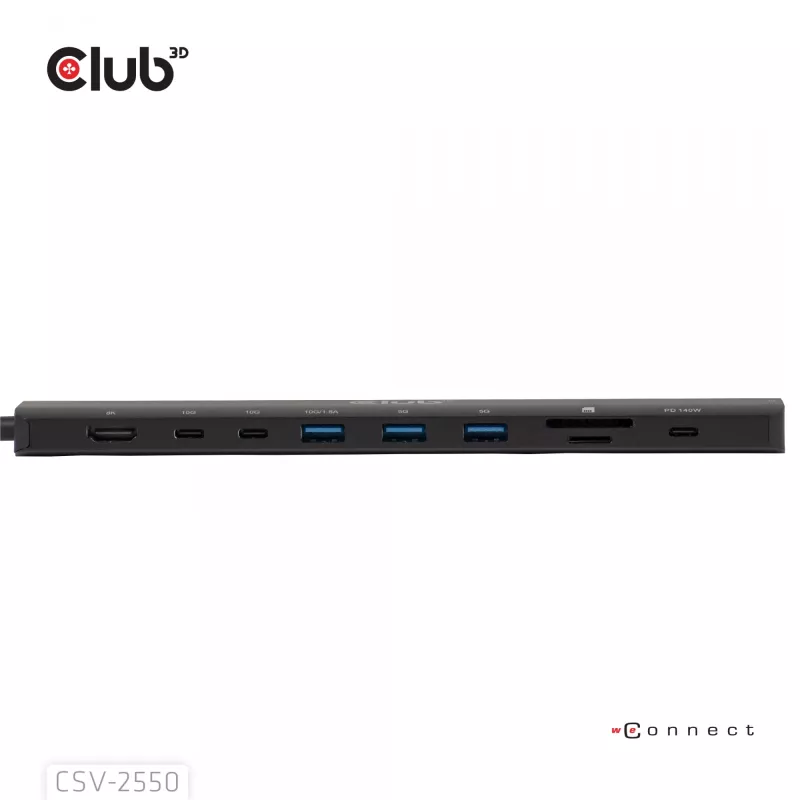

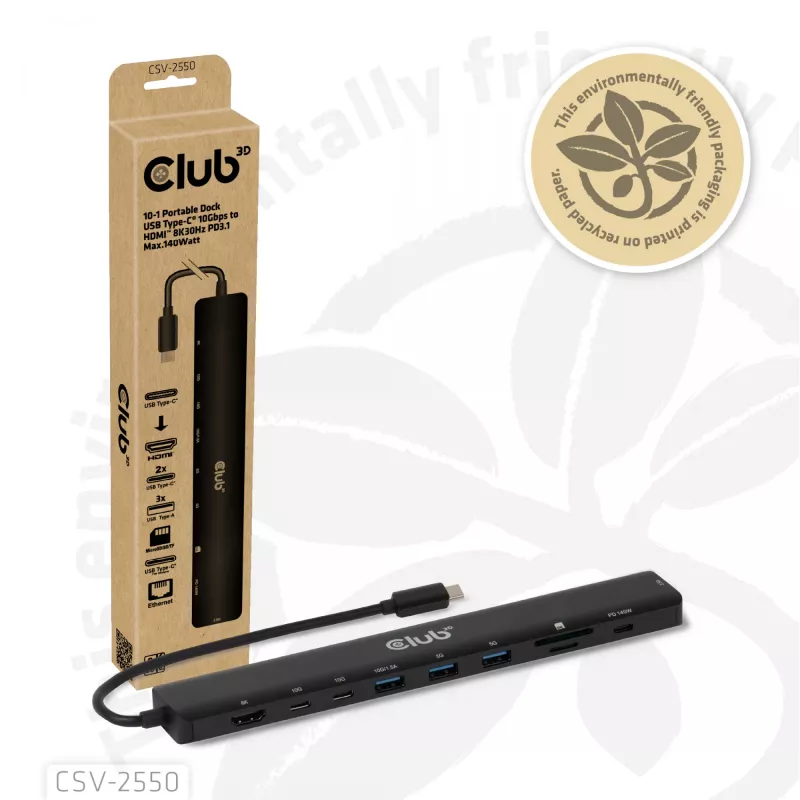

The CLUB3D 10-1 Portable Dock is a compact USB Type-C expansion hub that provides high-speed 10Gbps data transfer, an HDMI output capable of up to 8K at 30Hz, integrated card reader and Ethernet LAN, and USB Power Delivery support up to 140W. The dock is designed to extend the connectivity of USB-C laptops, tablets, and other compatible devices while remaining lightweight and easy to carry.

Advantages

This portable dock combines a wide range of ports in a single compact unit, allowing simultaneous use of high-resolution external displays, wired network connections and memory cards. With USB 3.1/3.2 Gen 2 (10Gbps) transfer speeds and HDMI 8K30Hz support, it is suitable for demanding display and data tasks. Integrated Power Delivery up to 140W enables charging of compatible host devices while peripherals remain connected. The dock's black finish and lightweight construction (109 g) make it convenient for mobile workflows.

Suitable for

• Connecting laptops or tablets to external displays (up to 8K at 30Hz)
• Adding wired Ethernet for stable network access
• Transferring data at high speed via USB Type-C (10Gbps)
• Reading memory cards with the built-in card reader
• Charging compatible devices via USB Power Delivery up to 140W

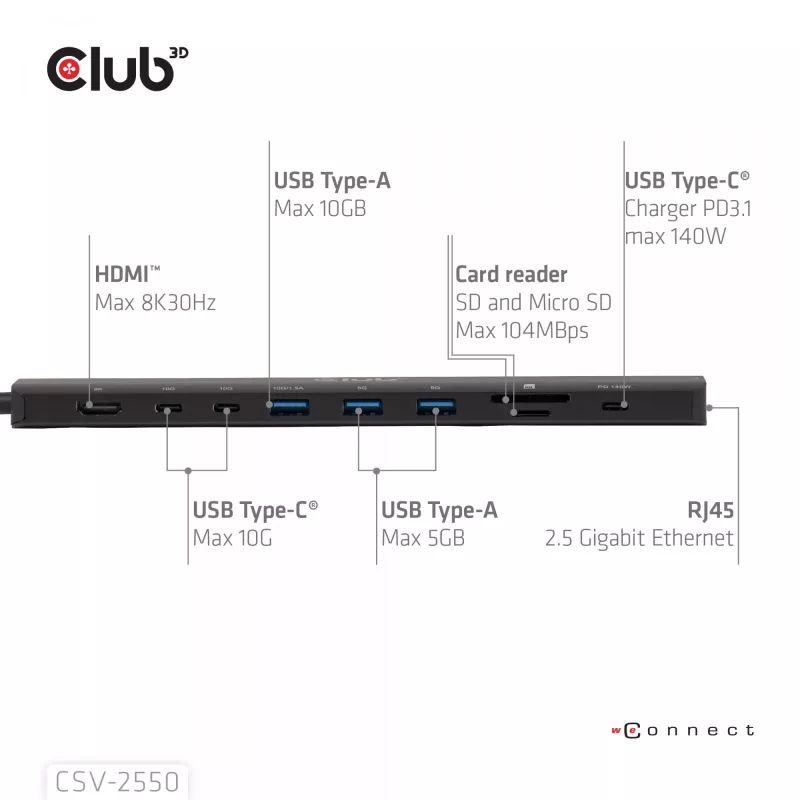

Key specifications

• Host interface: USB Type-C
• Data transfer rate: up to 10 Gbps
• Video output: 1× HDMI supporting up to 8K at 30Hz
• Power Delivery: up to 140W (USB PD 3.1 compatible)
• Network: integrated Ethernet LAN
• Card reader: integrated memory card slot
• Colour: Black
• Weight: 109 g

How to use

Connect the dock to a compatible host device using the USB Type-C cable or port on the dock. Attach an external display to the HDMI port and, if required, connect a wired network cable to the Ethernet port. Insert memory cards into the integrated card reader and connect USB peripherals to the available ports. If charging is needed, ensure the host or an external USB PD power adapter supports Power Delivery and can provide the required wattage for the connected device.

Recommendations

Use the dock with devices that support USB-C alt mode and USB Power Delivery for full functionality. For maximum display resolution and stable performance, use high-quality HDMI cables and a PD power source that meets the device's power requirements.
