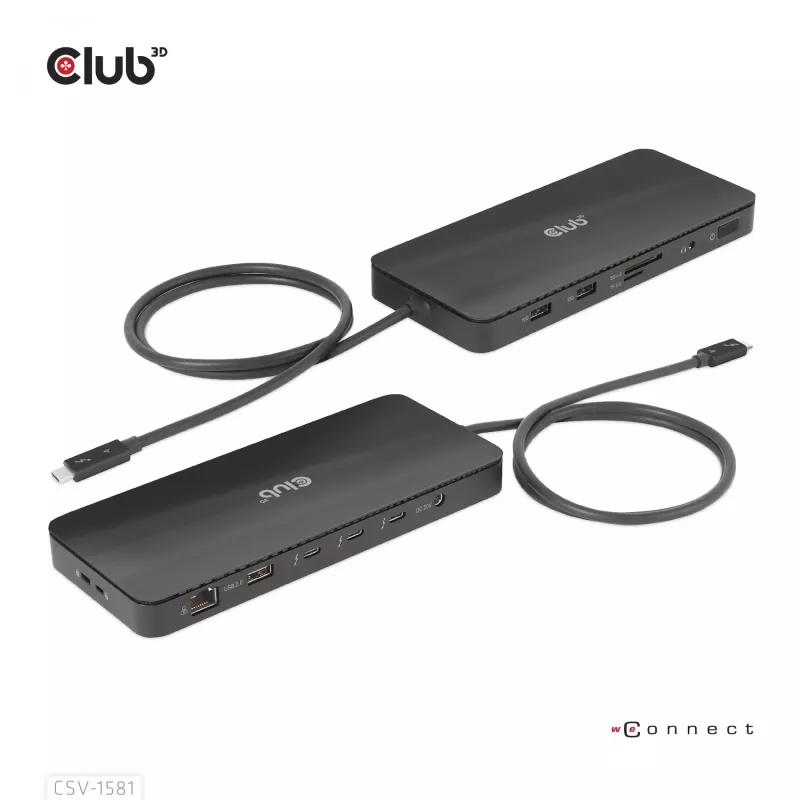

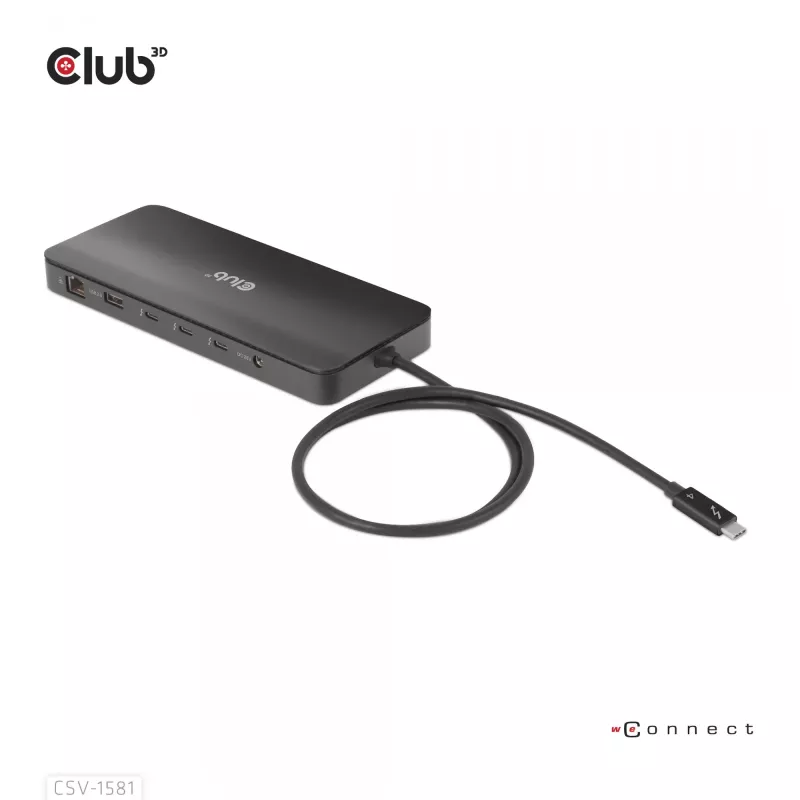

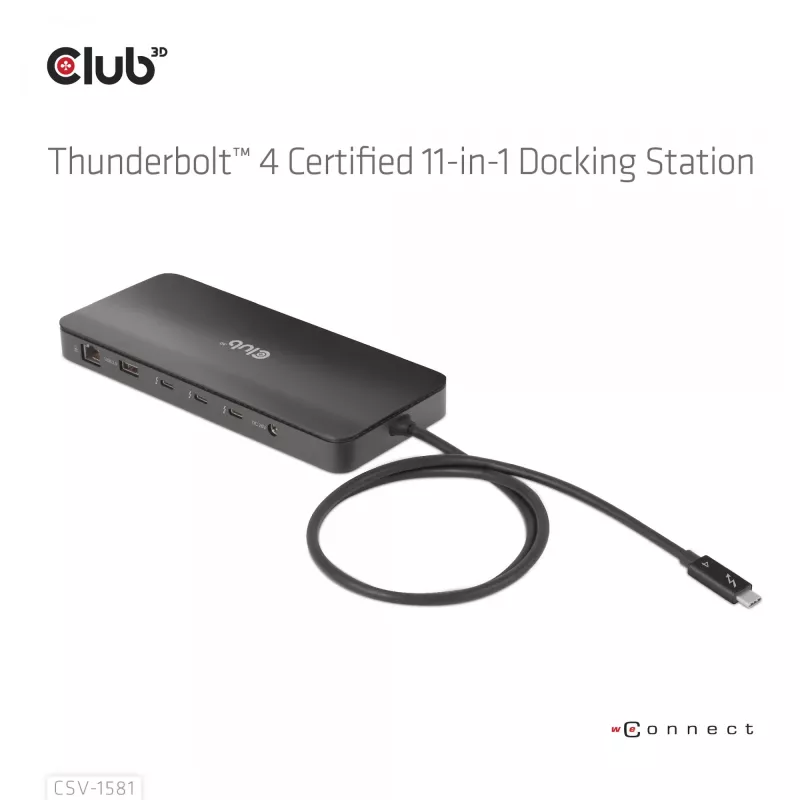

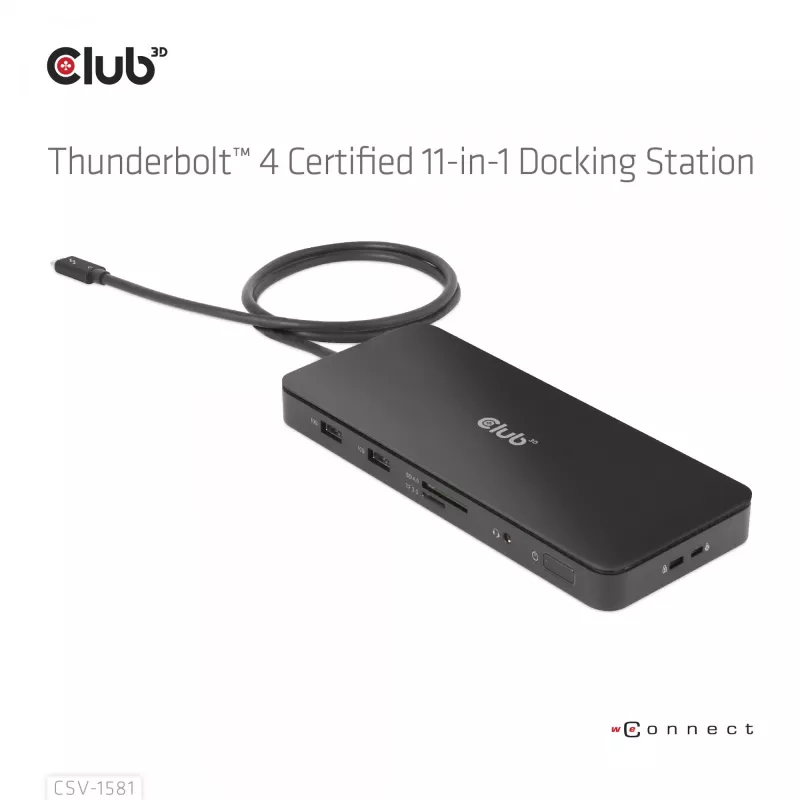

Docking station CLUB3D Thunderbolt 4 Certified 11-in-1 140W

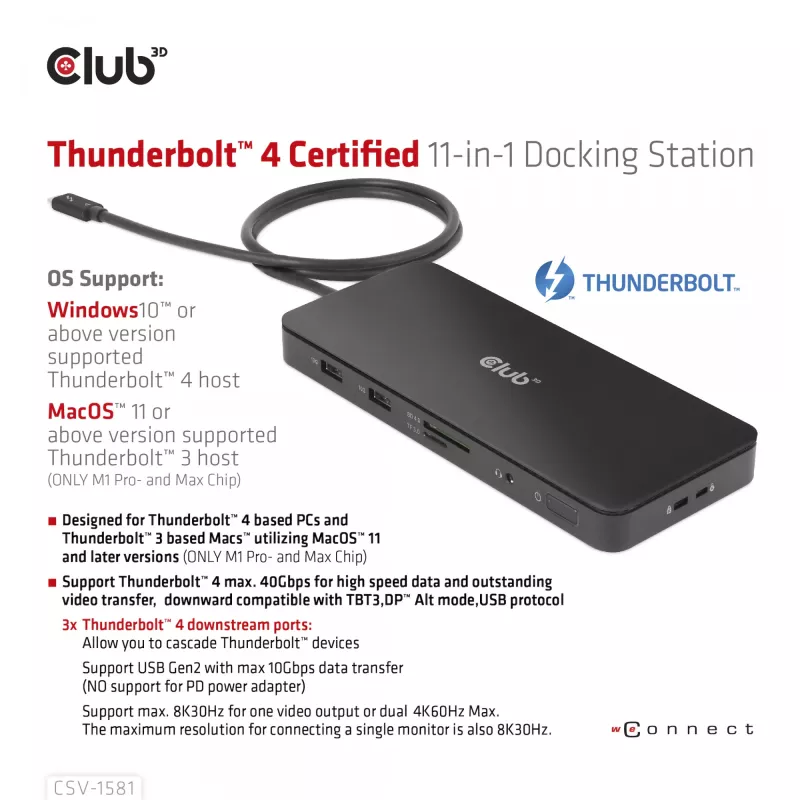

The Club 3D CSV-1581 is a Thunderbolt 4 Certified 11-in-1 docking station that delivers high-speed data and video transfer up to 40 Gb/s and supports up to 140W power delivery. The dock can drive a single 8K@30Hz display or two 4K@60Hz displays and includes a gigabit Ethernet port, SD card support and multiple USB connections. It is designed for Thunderbolt 4 PCs and for Thunderbolt 3 Macs running macOS 11 or later on M1 Pro and M1 Max chips.

Advantages

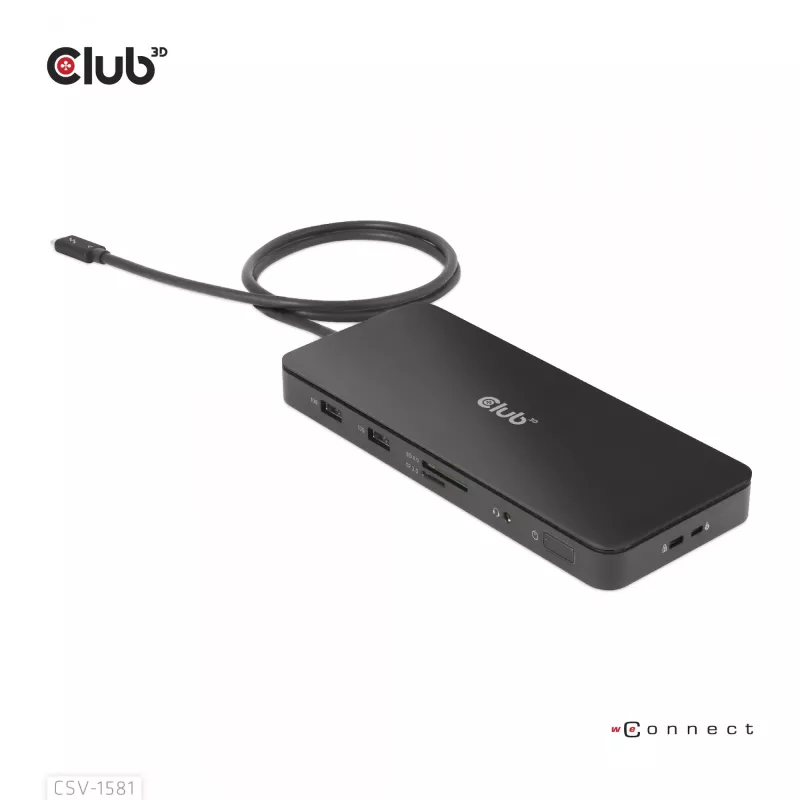

The dock combines Thunderbolt 4 bandwidth with smart power distribution to allocate external power efficiently to connected devices. With certified Thunderbolt 4 interoperability it provides a versatile connectivity hub that reduces cable clutter while supporting high-resolution displays and gigabit network access. Its compact black enclosure offers a straightforward expandability solution for laptops and workstations.

Suitable for

• Connecting multiple high-resolution external monitors (8K@30Hz or dual 4K@60Hz)
• Users needing gigabit Ethernet connectivity for stable wired networks
• Expanding ports on Thunderbolt 4 PCs or Thunderbolt 3 Macs (macOS 11+ on M1 Pro/Max)
• Transferring data from SD cards and multiple USB peripherals

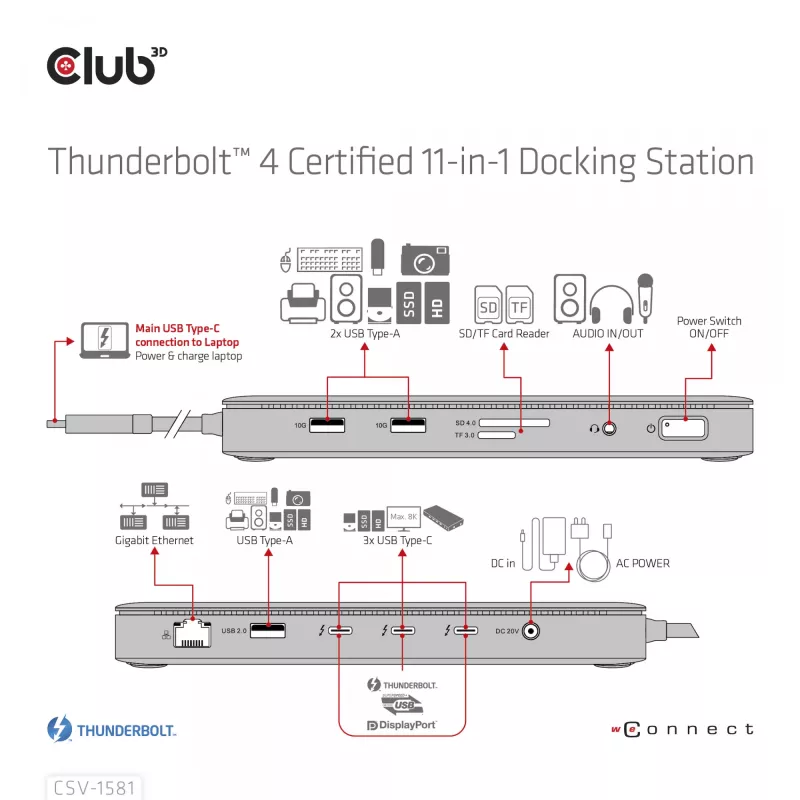

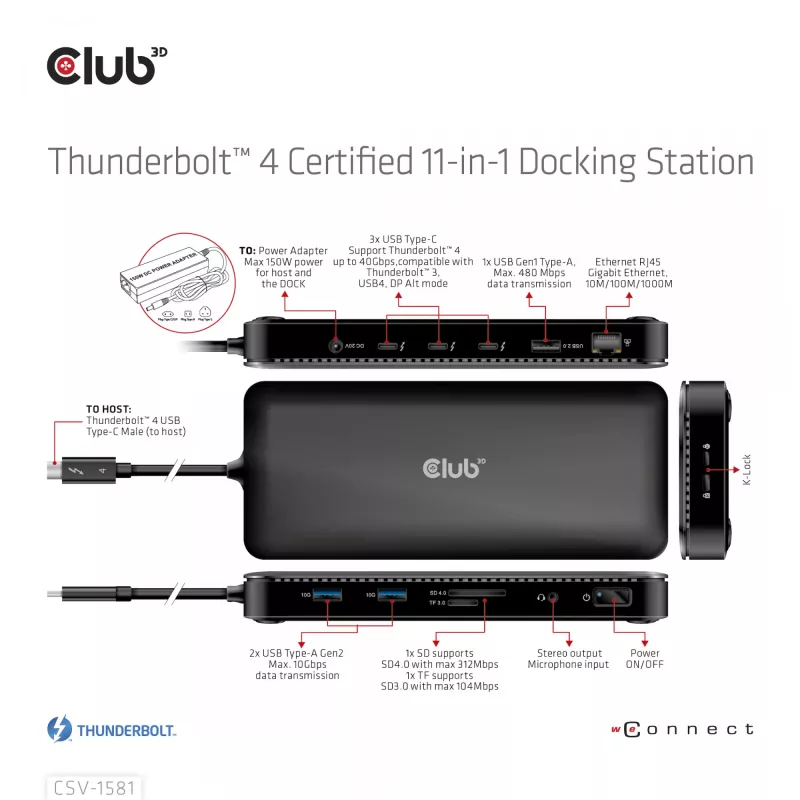

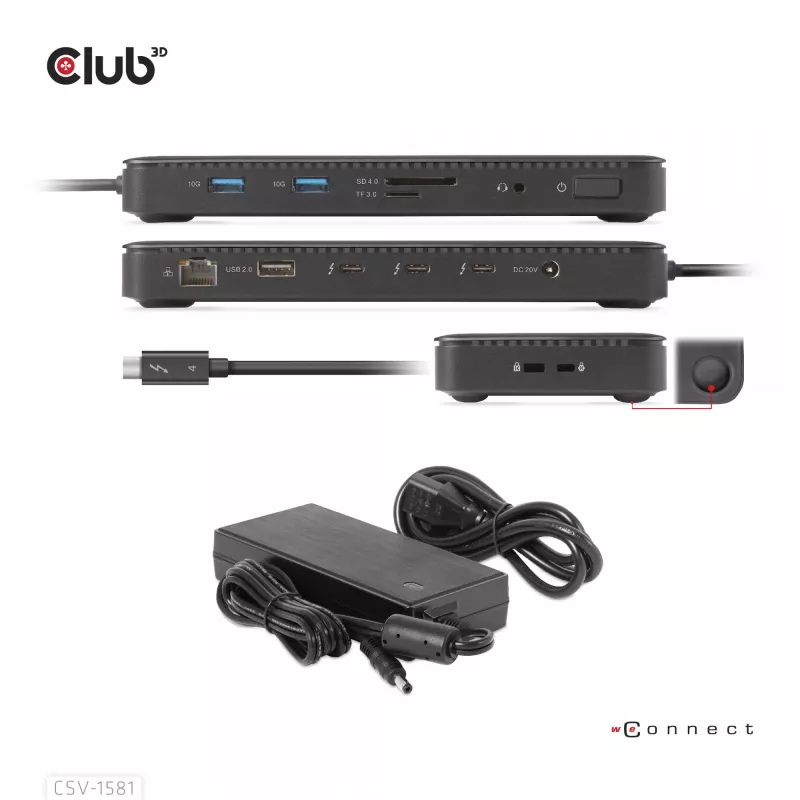

Key specifications

• Model: Club 3D CSV-1581
• Interface: Thunderbolt 4 (Certified)
• Data/video bandwidth: up to 40 Gb/s

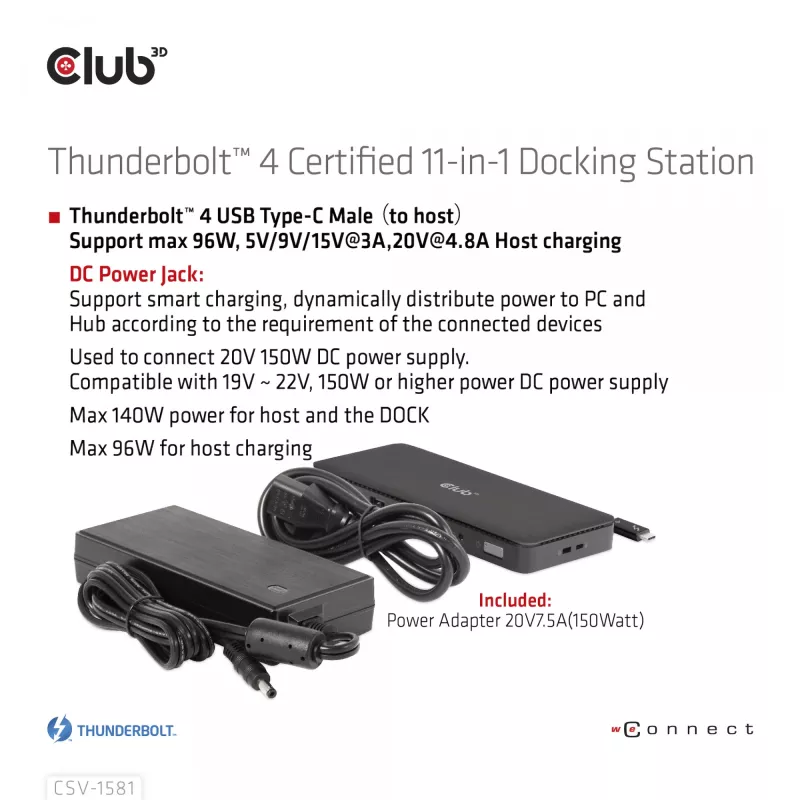

• Power delivery: up to 140W (smart power distribution)
• Display support: 1×8K@30Hz or 2×4K@60Hz
• Ethernet: 1×RJ-45, 1000 Mbit/s (Gigabit LAN)
• USB 2.0 ports: 3
• Memory card support: SD
• Color: Black

How to use

Connect the docking station to your Thunderbolt 4 port on the PC or the Thunderbolt 3 port on a compatible Mac using the provided cable. Attach external monitors to the dock according to their supported resolutions (one 8K or two 4K displays). Plug in Ethernet, SD card, and USB peripherals as needed. Ensure the host device runs a supported operating system and that Mac hosts are using macOS 11 or later with M1 Pro or M1 Max for full compatibility.

Recommendations

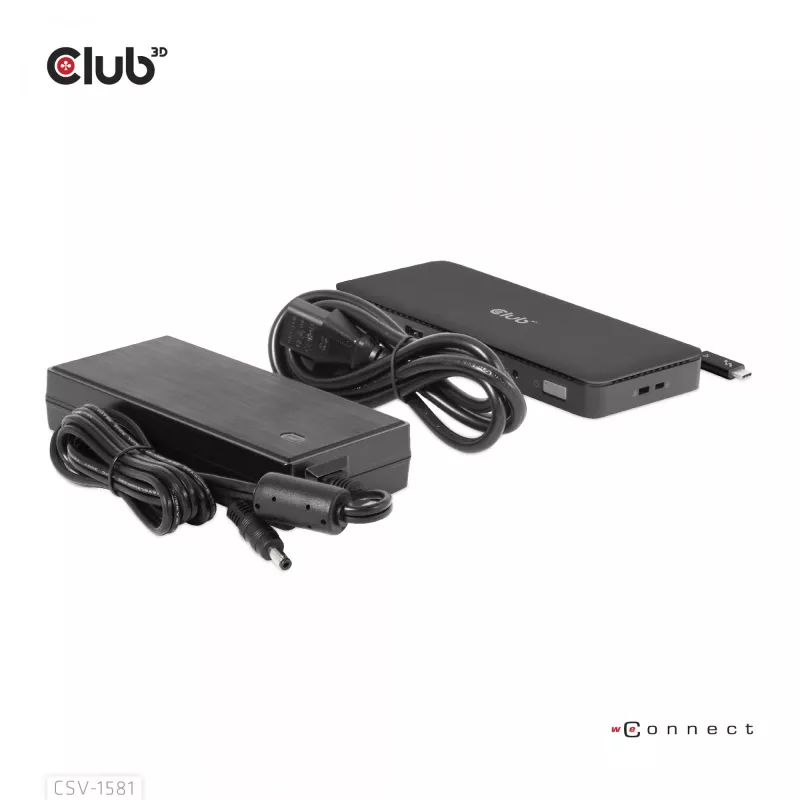

For reliable performance, use the external power supply included with the dock and connect high-resolution displays with certified cables. On Macs, verify macOS version and chip compatibility (M1 Pro/Max) before use; on PCs, use a Thunderbolt 4 port for full feature support.
