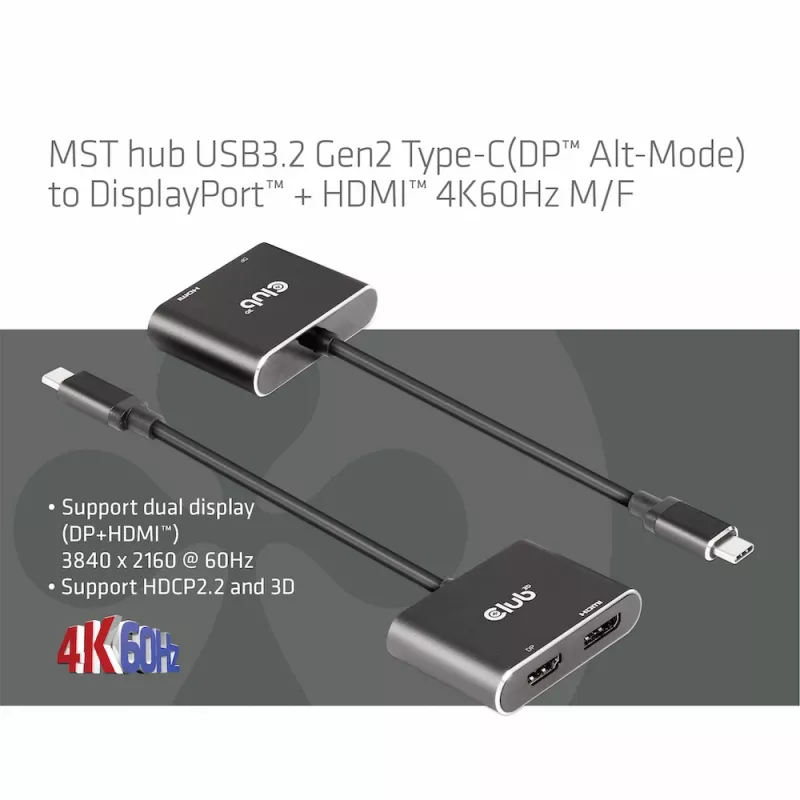

Hub MST CLUB3D USB3.2 Gen2 Type-C (DP Alt-Mode) su DisplayPort + HDMI 4K60Hz M/F

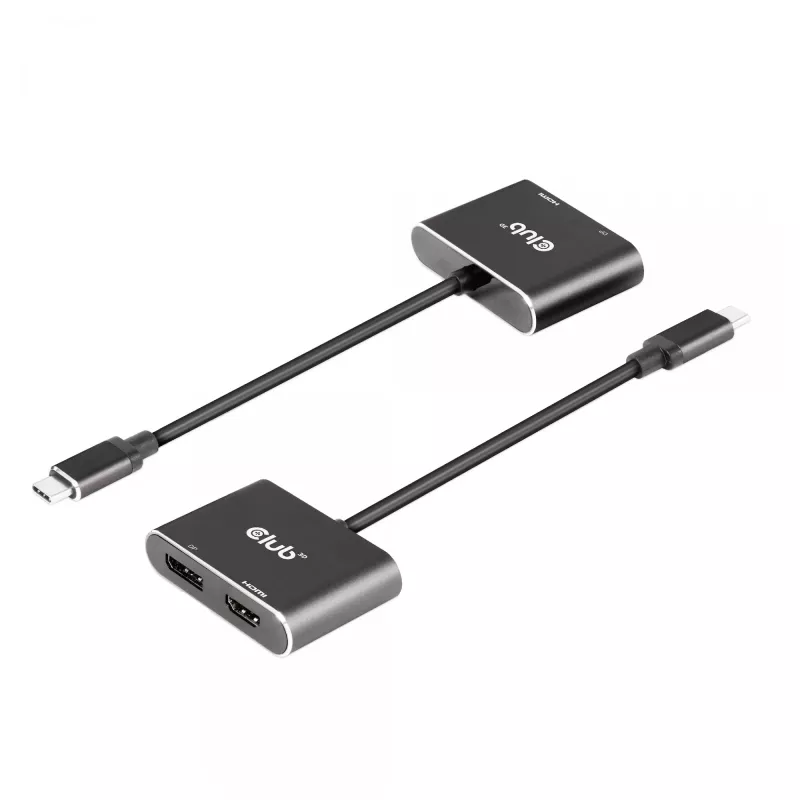

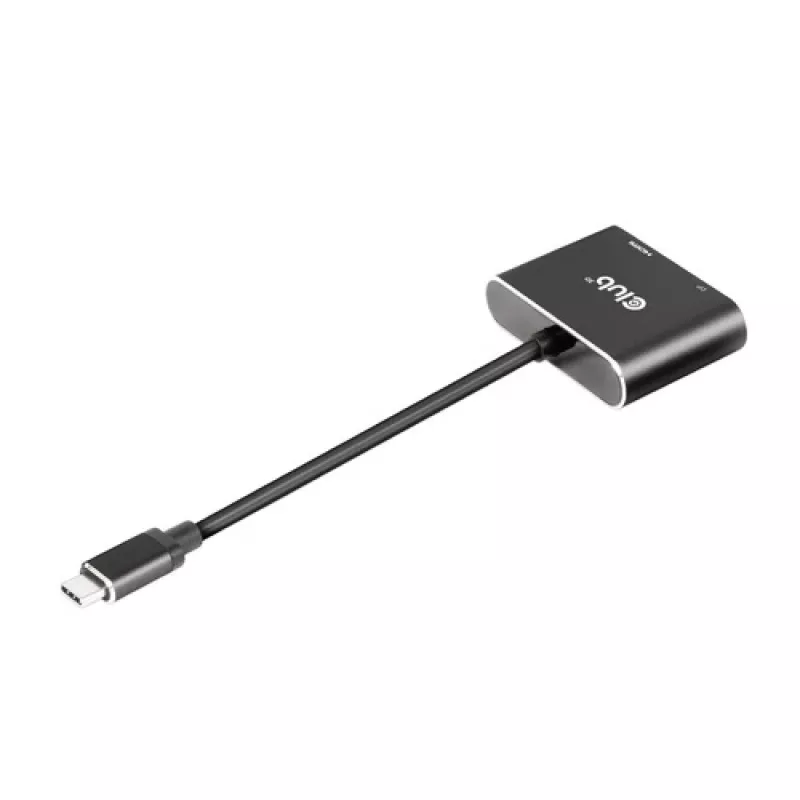

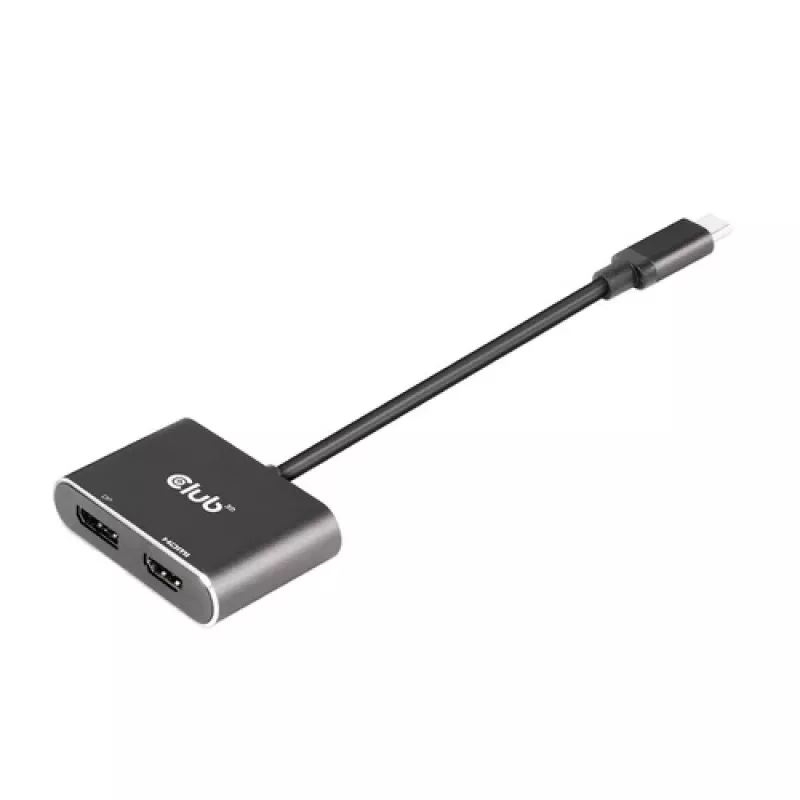

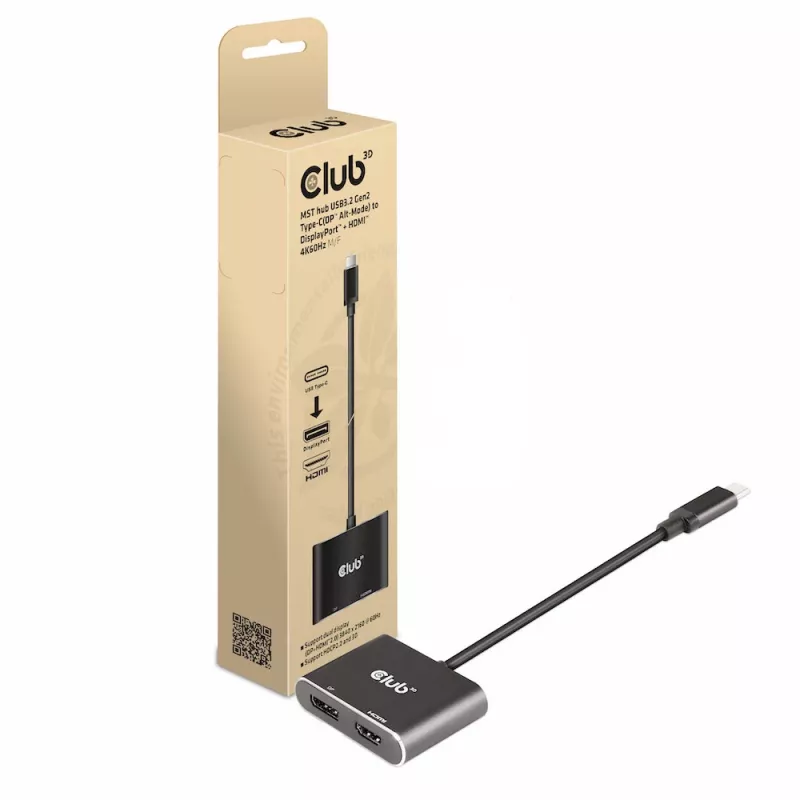

The CLUB3D CSV-1552 is an MST hub that converts a USB3.2 Gen2 Type‑C port with DisplayPort™ 1.4 Alt‑Mode into one DisplayPort™ and one HDMI™ output. It is designed for devices with a USB‑C DP Alt‑Mode output such as mobile phones, tablets, laptops and ultrabooks, enabling multi‑display setups including dual 4K60Hz screens in MST mode on supported systems.

Advantages

The hub supports simultaneous connection of a DisplayPort and an HDMI display from a single USB‑C port, with HDMI up to 4K at 60Hz and DisplayPort capable of up to 8K at 30Hz in MST mode on compatible Windows systems. Its compact black enclosure and lightweight design make it suitable for portable use. No drivers are required when the host device supports USB‑C DP Alt‑Mode and MST.

Suitable for

• Connecting a laptop or ultrabook to a DisplayPort and an HDMI monitor
• Expanding mobile phone or tablet video output to one DP and one HDMI display
• Dual 4K60Hz monitor setups on Windows systems that support MST
• Portable multi‑display workstations for presentations or productivity

Key specifications

• Model: CLUB3D CSV-1552
• Interface: USB 3.2 Gen2 Type‑C (DP™ 1.4 Alt‑Mode)

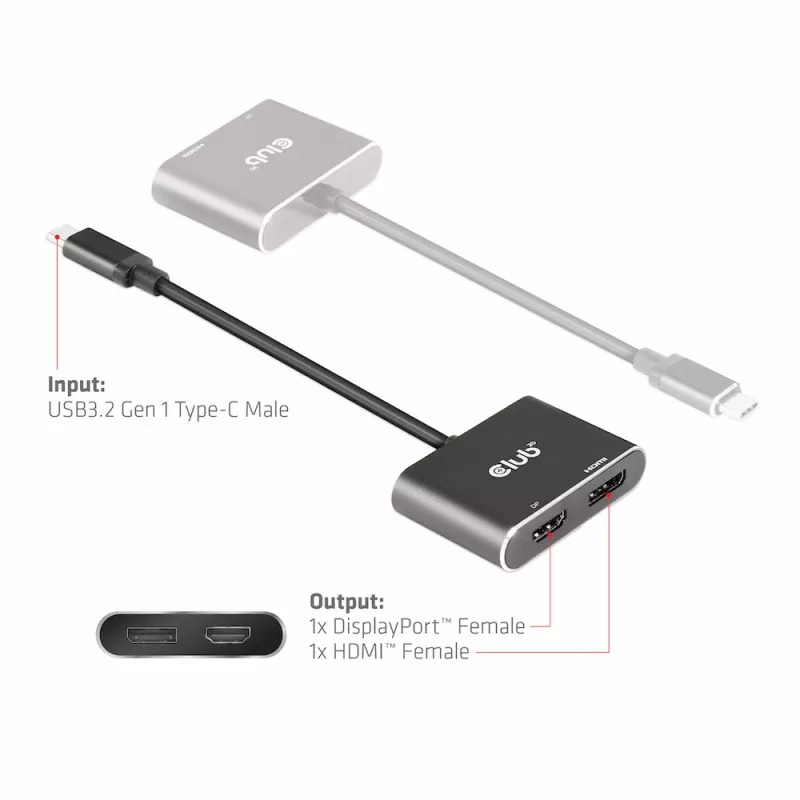

• Outputs: 1 × DisplayPort™, 1 × HDMI™ (male/female designation as per product)

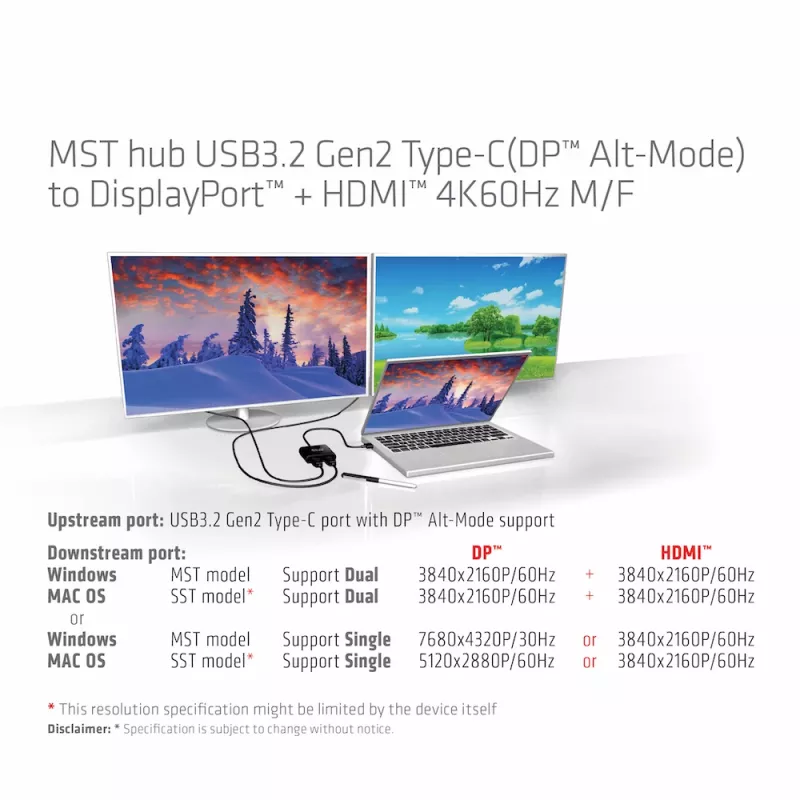

• Maximum resolution: HDMI up to 3840×2160 @ 60Hz; DP up to 8K @ 30Hz (MST on compatible Windows systems)
• Compatibility: Devices with USB‑C supporting DP Alt‑Mode; Windows 10 compatible

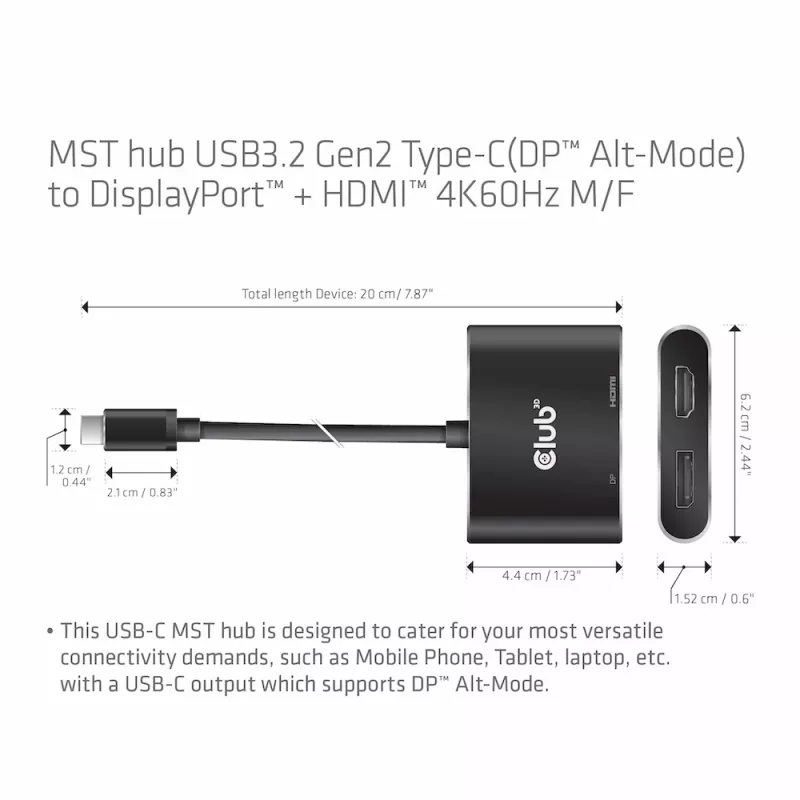

• Dimensions: 62 × 59 × 15.2 mm
• Weight: 0.048 kg
• Colour: Black

How to use

Connect the CSV-1552 to a host device’s USB‑C port that supports DisplayPort Alt‑Mode. Attach a DisplayPort cable to the DisplayPort output and an HDMI cable to the HDMI output, then power on the displays. On Windows systems that support MST, configure the display arrangement in the operating system display settings to enable extended or duplicated screens. No additional software is normally required when the host supports DP Alt‑Mode and MST.

Recommendations

Use certified DP Alt‑Mode USB‑C ports and high‑quality DisplayPort/HDMI cables rated for 4K60Hz. Check the host device specifications for MST and DP Alt‑Mode support before purchase to ensure expected multi‑display performance.
