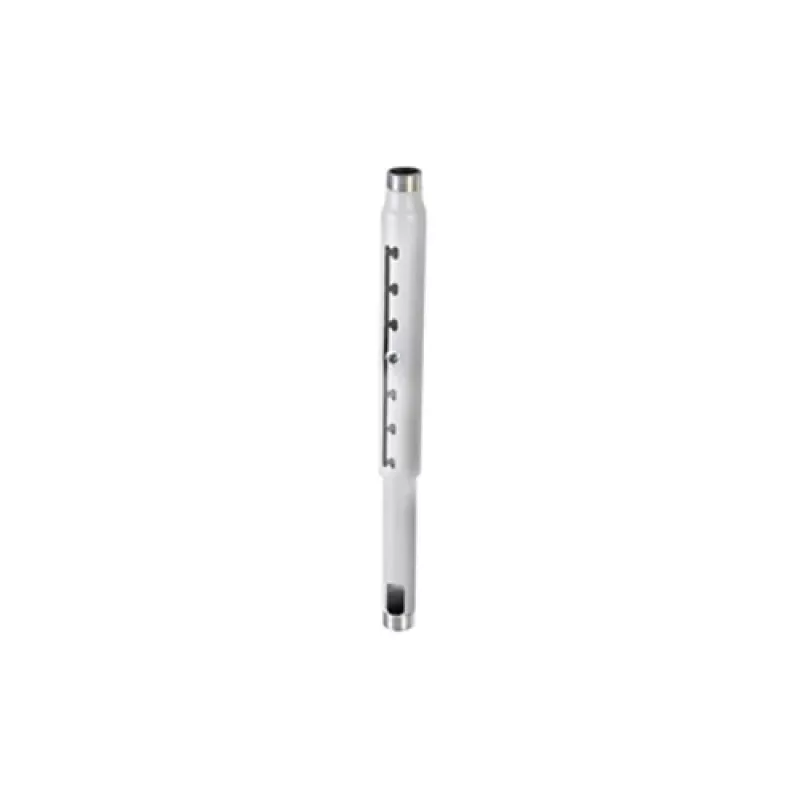

Colonna di prolunga per supporto proiettore Chief CMS0305W metallo bianco

3-5' Adjustable Extension Column, 91.4-152.4 cm. The Chief CMS0305W is a metal white extension column for projector mounting that provides adjustable height and secure installation. It consists of a 1.5" NPT column threaded on both ends and is TAA compliant. The white finish matches ceilings and complements Chief 1.5" NPT ceiling plates and other compatible accessories.

Advantages

The adjustable extension column provides height adjustment in 1" increments and a notched design that allows changes without disassembly. It includes a set screw for added stability and is compatible with any Chief 1.5" NPT ceiling plate or other accessory. Constructed of metal with threads on both ends, the column is durable and designed for secure projector installations.

Suitable for

• Extending Chief projector mounts to reach 91.4–152.4 cm (3–5 ft) from the ceiling
• Installations requiring adjustable height in 1" increments
• Commercial and residential projector mounting where TAA compliance is required

Key specifications

• Model: CMS0305W
• Length range: 91.4–152.4 cm (3–5 ft)
• Thread: 1.5" NPT, threaded both ends
• Adjustment increments: 1" notched
• Material: metal
• Colour: white
• Weight: 3.63 kg
• Compliance: TAA compliant

How to use

Attach the CMS0305W extension column between a compatible Chief 1.5" NPT ceiling plate and the projector mount. Adjust the column to the required height using the notched increments, secure the position with the included set screw, and tighten all threaded connections. Ensure the mount and ceiling plate are installed per their instructions and that the assembled system supports the projector weight.

Recommendations

Use this extension column with Chief 1.5" NPT ceiling plates and compatible mounting accessories. Verify load capacity of the complete mounting assembly before installation and follow local building codes and safety guidelines when mounting to ceilings.
