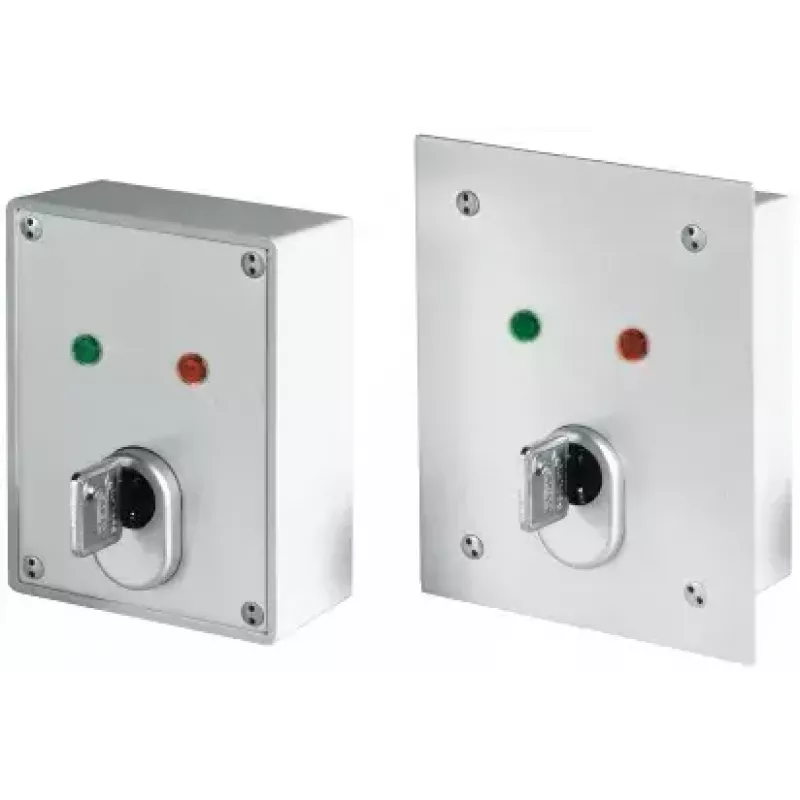

Componenti per dispositivi di sicurezza ABUS SE1000

Use the ABUS SE1000 surface mount key-switch to arm and disarm alarm systems and control electronic devices. The unit accepts half-cylinders (10/30) and is intended for surface installation; it features a robust weatherproof housing with an IP55 rating, a reinforced fascia plate and a high-quality ABUS cylinder for secure operation. Two switch contacts can be configured as permanent or pulse outputs, and two coloured LEDs indicate the current state of connected devices.

Advantages

The surface mount key-switch offers high security with protection against illegal removal, tamper monitoring and a cover contact plus anti-removal wall contact for the surface-mounted variant. Its weatherproof IP55 housing and reinforced components ensure reliable outdoor use. Operation is simple and quick since users turn a key instead of entering a PIN code, and two configurable contacts provide flexibility for controlling lights, garage doors or other equipment.

Suitable for

• Arming and disarming alarm systems or individual alarm partitions
• Controlling entrance lighting
• Operating garage doors or gate controls
• Switching other electronic equipment requiring a permanent or pulsed contact

Key specifications

• Brand: ABUS, model SE1000 (MPN SE1000, EAN 4012270001461)
• Mounting: surface fitting (designed for half-cylinders 10/30)
• Protection rating: IP55 (weatherproof)
• Contacts: two switch contacts, configurable as permanent or pulse
• Indicators: two coloured LEDs showing device/state status
• Dimensions: 87 x 47.5 x 117 mm
• Weight: 450 g
• Colour: grey

How to use

Mount the SE1000 on a suitable surface following installation guidelines for half-cylinder lock integration. Insert the correct half-cylinder (10/30) and secure it in place. Use the key to turn for arming or disarming the alarm system or to activate the connected equipment. Configure the two switch contacts as either permanent contacts or pulse outputs according to the requirements of the controlled device. Check the two LEDs to verify current system or device status.

Recommendations

Install the key-switch in a protected, accessible location and connect the contacts only after power is isolated. Regularly inspect the housing and cylinder for damage and verify the cover contact and anti-removal wall contact on surface-mounted units to ensure tamper monitoring remains effective.
