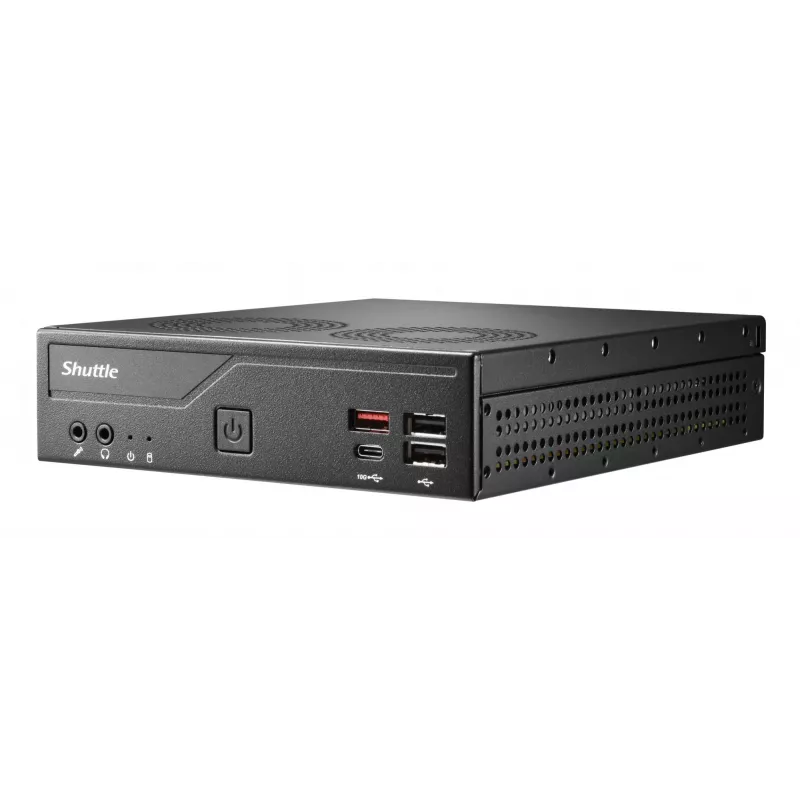

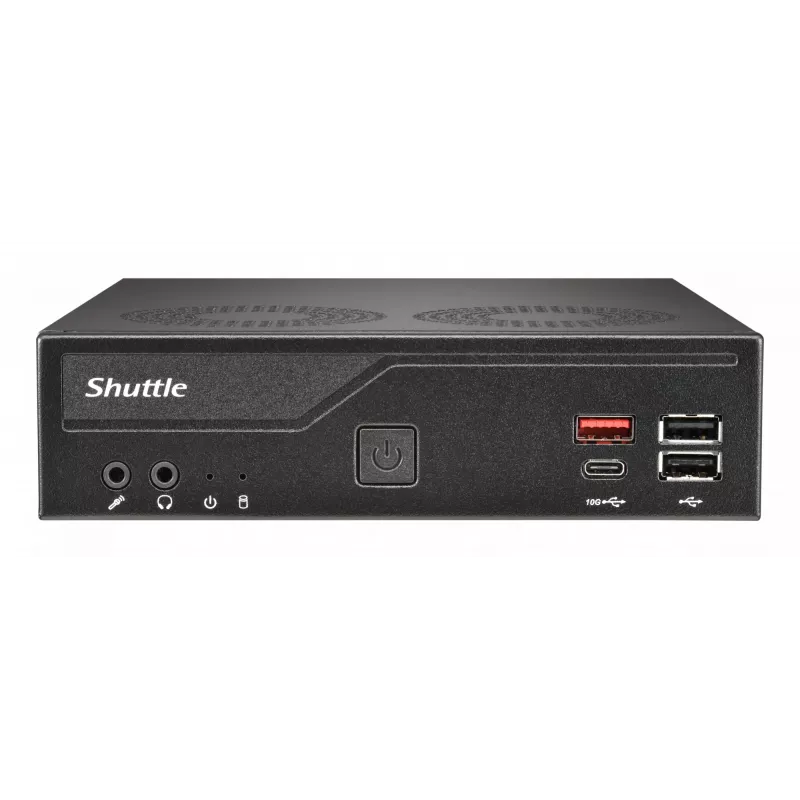

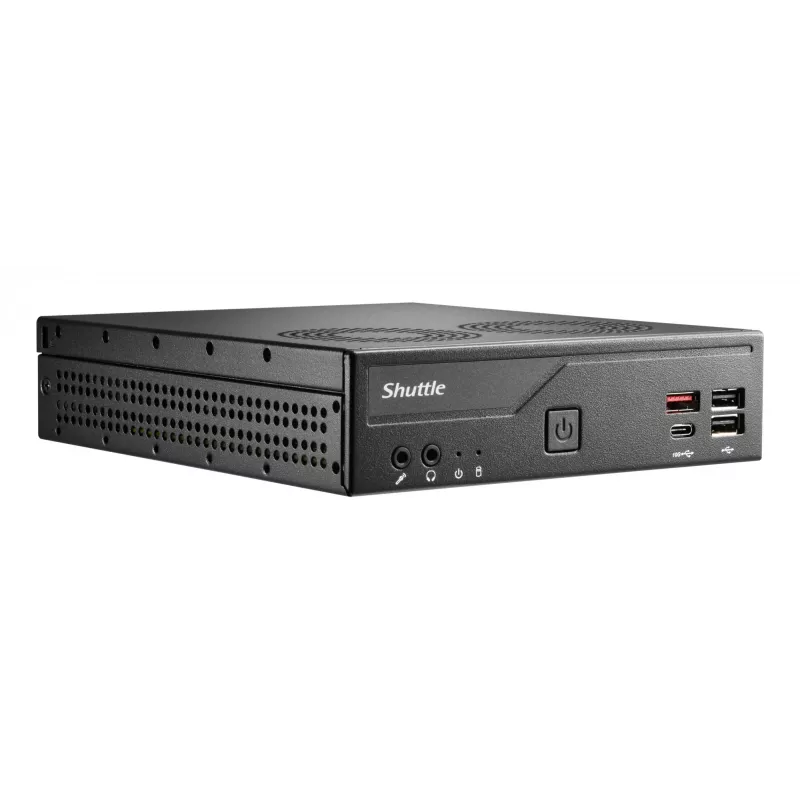

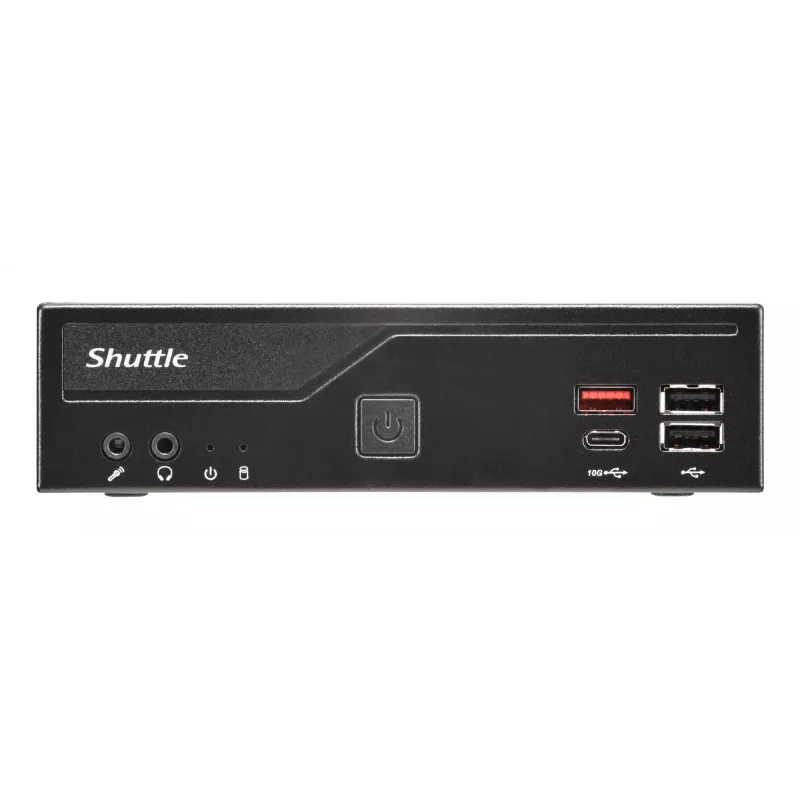

Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE

Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
-9%
Black Week
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
Computer Shuttle Barebone slim DH810 Intel SO-DDR5 nero DH810 SHUTTLE
345,82 €
379,18 €−9 %
PDF
PDF
Stock 2 Codice 32800 Modello DH810 Garanzia 2 anni

Spedizioni e resi

Consegna stimata giovedì 10 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardApple PayGoogle PayBonifico bancario

Descrizione

The Shuttle Barebone slim DH810 is a compact desktop platform that combines a slim black chassis with support for Intel processors and SO-DIMM DDR5 memory. Designed for users who need a space-saving system, it brings a balance of everyday performance and a small footprint suitable for home and office environments. The barebone configuration allows integration of user-selected storage, memory, and optional components to tailor the system to specific needs.

Advantages

The DH810 offers a slim form factor that saves desk space while maintaining support for modern Intel CPU platforms and SO-DDR5 memory modules. Its black enclosure provides a discreet visual profile that fits varied interior styles. As a barebone solution, it enables customization and component choice, facilitating upgrades and configuration flexibility without requiring a full prebuilt system.

Suitable for

  • Everyday office work: document editing, email, web browsing
  • Home computing: media playback, light multitasking
  • Small business workstations with limited desk space
  • Custom builds where specific storage and memory choices are required

Key specifications

  • Form factor: slim barebone desktop
  • Processor support: Intel CPU platform (socket and specific models depend on motherboard)
  • Memory support: SO-DIMM DDR5 modules
  • Chassis color: black
  • Expandability: user-installable storage and memory (details depend on selected components)

How to use

Install compatible Intel CPU and SO-DIMM DDR5 memory modules according to the motherboard manufacturer’s instructions, then add storage drives and any optional expansion cards supported by the barebone. Connect power and peripherals, configure BIOS/UEFI settings if necessary, and install the operating system and drivers. Follow Shuttle’s assembly guidance and safety instructions when handling components and powering the system.

Recommendations

For reliable operation, use memory modules and processors that match the motherboard’s supported specifications, and select storage and cooling solutions appropriate to your intended workload. Keep BIOS/UEFI and drivers up to date and ensure adequate ventilation around the slim chassis to maintain thermal performance.

Punti salienti
  • Socket LGA1851 supports Intel Core Ultra 200 series i9 / i7 / i5 processors
  • Intel Arc graphics (4K/8K), supports 3 displays
  • Supports 24/7 Nonstop Operation
  • Up to 96GB DDR5 RAM

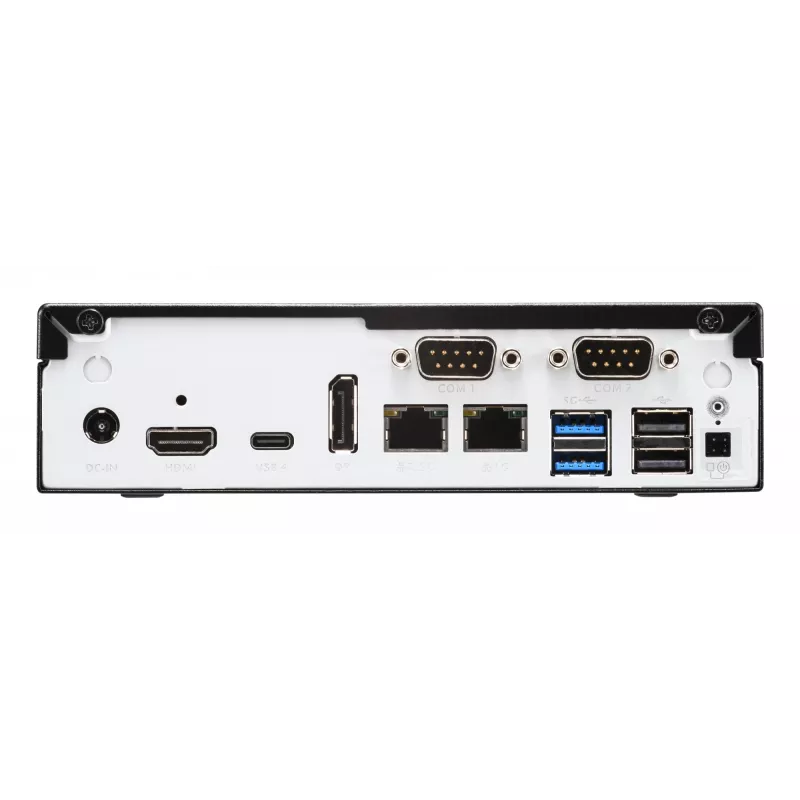

  • 2x LAN , 8x USB
  • 1.35L sized PC Black
  • 2 SO-DIMM Maximum internal memory: 96 GB DDR5-SDRAM
  • HDD & SSD 2.5"
  • On-board graphics card
  • Ethernet LAN

Specifiche

Specifiche
Alimentatore
120 W
Alimentatore incluso
Sì
Altezza
43 mm
Altoparlanti integrati
No
Attacco VESA
Sì
Canali di memoria
Doppio canale
Canali di uscita audio
2.0 canali
Cavo di alimentazione incluso
Sì
Certificati di conformità
BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Certificazioni di sostenibilità
ENERGY STAR, ErP
Chip audio
Realtek ALC888S
Codice Sistema Armonizzato (HS)
84733080
Colore del prodotto
Nero
Controller LAN
Intel® I219, Intel I226
Corrente di uscita dell'alimentatore
6.32 A
Dimensioni delle unità di archiviazione supportate
2.5"
Driver inclusi
Sì
ECC
No
Ethernet LAN
Sì
Formato SSD
M.2
Frequenza di ingresso CA
50/60 Hz
Guida rapida
Sì
Indicatori LED
HDD, Alimentazione
Ingresso microfono
Sì
Interfaccia delle unità di archiviazione
M.2, PCI Express, Serial ATA
Jack DC-in
Sì
Larghezza
165 mm
Materiale della scocca
Metallo
Memoria interna massima
96 GB
Modulo di piattaforma attendibile (TPM)
Sì
Non-ECC
Sì
Numero di alimentatori
1
Numero di porte DisplayPort
1
Numero di porte HDMI
1
Numero di porte seriali
2
Numero di porte USB 2.0
4
Numero di porte USB 3.2 Gen 1 (3.1 Gen 1) Type-A
2
Numero di porte USB 3.2 Gen 2 (3.1 Gen 2) Type-A
1
Numero di porte USB 3.2 Gen 2 (3.1 Gen 2) Type-C
1
Numero di porte USB4 Gen 2x2
1
Numero di porte VGA (D-Sub)
0
Numero di processori supportati
1
Numero di slot di memoria
2
Numero di unità di archiviazione supportate
2
NVMe
Sì
Peso
1.3 kg
Peso confezione
2.1 kg
Porte Ethernet LAN (RJ-45)
2
Processore integrato
No
Profondità
190 mm
Scheda grafica integrata
Sì
Sistemi operativi Linux supportati
Sì
Sistemi operativi Windows supportati
Windows 11
Slot per cavo di sicurezza
Sì
Socket del processore
LGA 1851 (Socket V1)
Temperatura di esercizio (T-T)
0 - 50 °C
Tensione di ingresso CA
100 - 240 V
Tensione di uscita dell'alimentatore CA
19 V
Tensione memoria
1.1 V
Tipi di memoria supportati
DDR5-SDRAM
Tipi di unità di archiviazione supportate
HDD e SSD
Tipo di alimentatore
Adattatore CA esterno
Tipo di BIOS
EFI AMI
Tipo di custodia
PC da 1,35 L
Tipo di prodotto
Mini PC barebone
Tipo di raffreddamento
Attivo
Tipo di slot di memoria
SO-DIMM
Tipo di slot per cavo di sicurezza
Kensington
Umidità relativa di esercizio (H-H)
10 - 90%
Uscite cuffie
1
Velocità di clock della memoria supportate
5600 MHz
Versione DisplayPort
1.4a
Versione HDMI
2.1
Versione Trusted Platform Module (TPM)
2.0
Wi-Fi
No

Brochure

Apri documento

Documento

Apri documento

Manuale

Apri documento
