Connettore a filo D-Sub 37 pin DeLOCK 66704

The Wire Connector D-Sub 37 Pin DeLOCK 66704 is a male D-Sub connector designed for use in electronic and industrial interface applications. It is supplied in packs of four, each connector finished in blue and silver. The connector's compact dimensions — 12.5 mm width, 69.3 mm depth and 11 mm height — make it suitable for installations where space is limited while maintaining a standard 37-pin D-Sub male layout for signal or control wiring.

Advantages

The DeLOCK 66704 combines a standard D-Sub 37-pin male configuration with a compact housing and a two-tone blue and silver finish. Supplied in polybag packaging in sets of four, it provides consistent mechanical and electrical mating for multi-pin connections. The connector's measured dimensions allow integration into existing panels or cable assemblies without major modifications.

Key specifications

• Connector type: D-Sub male, 37 pins
• Quantity per pack: 4 connectors
• Colour: Blue and silver
• Packaging: Polybag

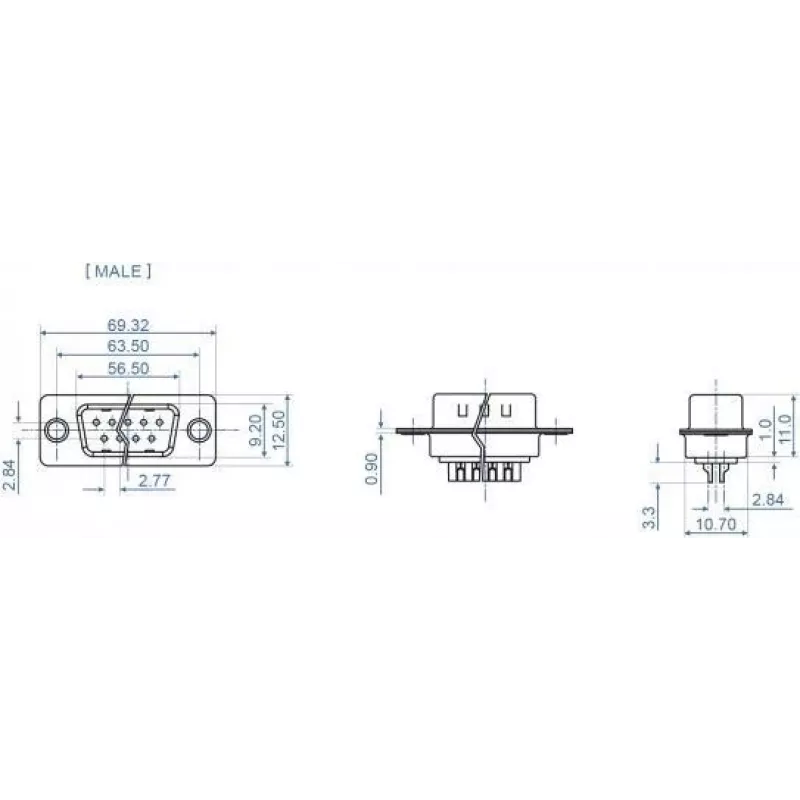

• Dimensions: 12.5 mm (width) × 69.3 mm (depth) × 11 mm (height)

How to use

Install the DeLOCK 66704 by aligning the 37-pin male pattern with the corresponding female D-Sub receptacle or cable assembly. Ensure pins align correctly before applying mating force to avoid bending. Mounting and securing should follow the mechanical provisions of the mating connector or panel; use appropriate screws, clamps or strain reliefs as required by the application. When wiring to the connector, follow the circuit diagram and standard soldering or termination procedures compatible with D-Sub male contacts.

Recommendations

For reliable long-term performance, verify pin assignments and continuity before final installation, use suitable strain relief and cable management to prevent mechanical stress, and store unused connectors in their polybag packaging to protect contacts from contamination.
