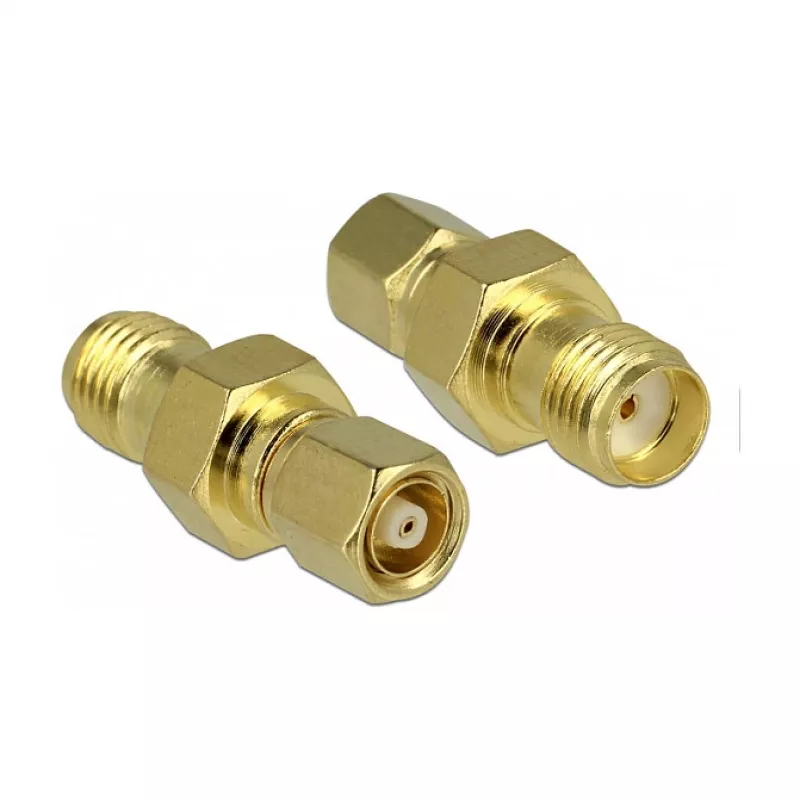

Connettore coassiale SMA DeLOCK 65869

The DeLOCK 65869 coaxial connector is an SMA-type adapter with 50 Ω impedance, designed for connecting components in radio frequency (RF) systems. It features both SMC and SMA interfaces and has an overall depth of 22.5 mm. Supplied as a single unit, the adapter is intended to provide reliable signal transmission and durable mechanical connection for RF applications.

Advantages

The SMA DeLOCK 65869 offers a standard 50 Ω impedance suitable for most RF equipment and antennas. Its SMC and SMA interfaces enable compatibility with devices using either connector type, while the compact 22.5 mm depth keeps the adapter space-efficient. The unit is built for stable electrical contact and mechanical durability under normal operating conditions.

Suitable for

• Connecting RF components with SMA and SMC connectors
• Antennas, radio modules and test equipment requiring 50 Ω impedance
• Professional installations and hobbyist electronics projects

Key specifications

• Brand: DELOCK
• Model / MPN: 65869
• EAN: 4043619658695
• Connector type: SMA (with SMC compatibility)
• Impedance: 50 Ω
• Depth: 22.5 mm
• Package quantity: 1 piece

How to use

Align the SMA and SMC connector ends with the corresponding device ports and carefully screw or push the adapter into place depending on the connector mating method. Ensure connectors are clean and free of debris before mating. Do not overtighten threaded connections—tighten to hand-firm plus a small additional turn if specified by the equipment manufacturer.

Recommendations

Use the adapter in environments within the equipment's specified temperature and humidity ranges. Inspect connectors periodically for wear or damage, and replace the adapter if electrical contact deteriorates or mechanical damage is observed.
