Connettore coassiale SMA DeLOCK 90036

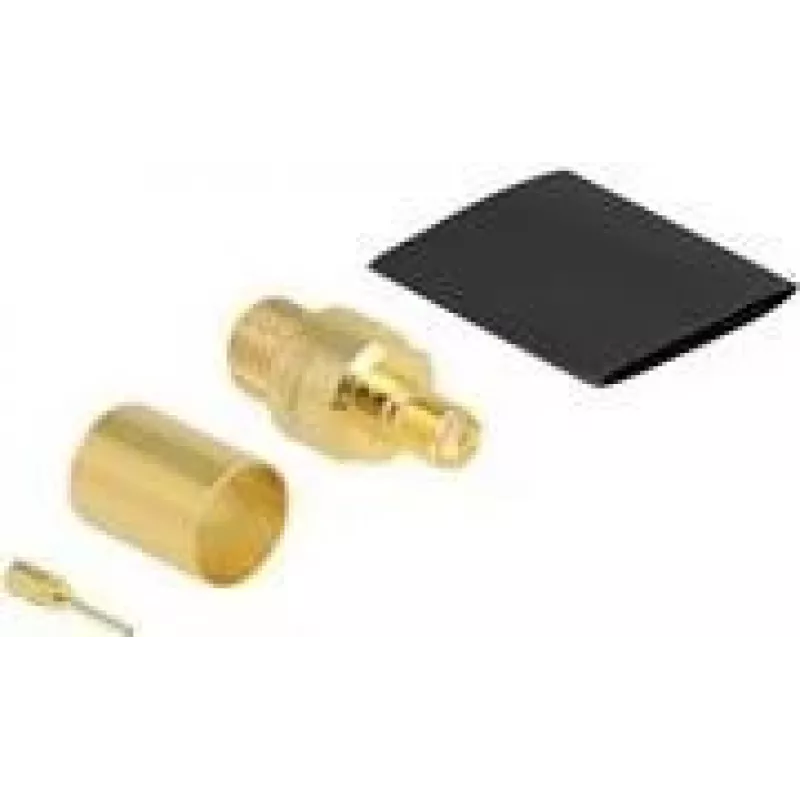

The DeLOCK 90036 coaxial connector set includes five gold-plated SMA jacks with a characteristic impedance of 50 Ω. Each connector measures 13.4 mm (width) × 13.4 mm (height) × 26.3 mm (depth) and is supplied together with a matching heat-shrink tube. The set is intended for use in radio-frequency (RF) technology to establish reliable coaxial connections and maintain signal integrity.

Advantages

Gold plating provides good conductivity and corrosion resistance, while the SMA design ensures a compact threaded connection suitable for many RF applications. The included shrink tube offers mechanical protection and helps to insulate and secure the connection. Supplied as a pack of five, the set is convenient for multiple installations or replacements.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping the outer jacket and dielectric to the required lengths for SMA termination. Insert and solder or crimp the centre conductor and assemble the connector body according to the cable and connector type. Slide the supplied heat-shrink tube over the joint and apply heat to shrink it for mechanical support and insulation. Follow standard RF assembly practices to ensure correct torque on the SMA thread and preserve electrical performance.

Recommendations

Use the connectors in environments and equipment designed for 50 Ω systems. Avoid excessive torque on the SMA threads and ensure proper cable preparation to maintain low reflection and optimal signal transfer.
