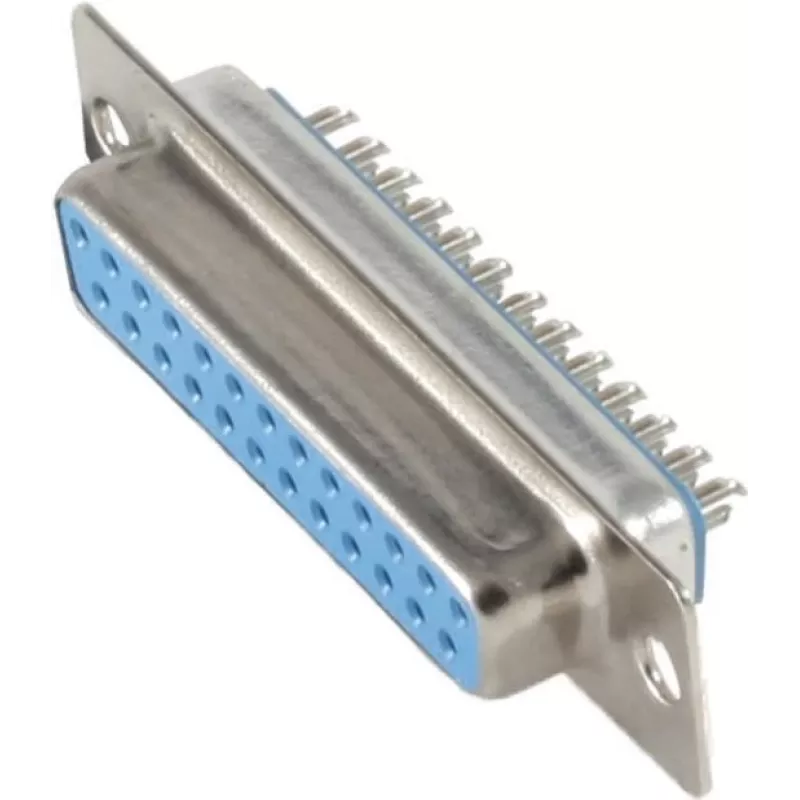

Connettore D-Sub ShiverPeaks BS79125-2 connettore femmina dritto

The ShiverPeaks BS79125-2 Female Straight is a D-Sub connector designed for reliable signal and data connections in electronics and display systems. This single female straight connector provides a compact interface for applications where a standard D-Sub mating interface is required. It is intended for use where a durable, easy-to-mount connector is needed for control panels, instrumentation, or cable assemblies.

Advantages

The connector offers a straightforward straight-body design that simplifies panel or cable-mounted installations and helps maintain consistent contact alignment. Constructed to meet common mechanical requirements for D-Sub interfaces, the connector supports repeated mating cycles and provides physical stability in rack, enclosure, and cable-termination environments. Sold individually, it allows flexible procurement for single repairs or small-batch builds.

Suitable for

• Signal and data transmission between devices using D-Sub interfaces
• Panel or bulkhead mounting in control and measurement equipment
• Cable assemblies for legacy monitors, industrial controllers, and communication modules
• Repair and replacement of damaged or worn female D-Sub receptacles

Key specifications

• Connector type: Female D-Sub, straight orientation
• Contact arrangement: Standard D-Sub contact layout (female contacts)
• Mounting style: Straight / inline for panel or cable applications
• Construction: Metal shell with insulated contact housing (typical for D-Sub connectors)
• Usage: Single-piece supply for installation or replacement

How to use

Prepare the cable or panel opening to match the connector dimensions and follow standard D-Sub wiring conventions for pin assignments. Insert wires into the contact points or solder according to the contact type used in your assembly, then secure the connector in place using the appropriate fastening method for your chassis or cable housing. Ensure proper grounding of the shell where required and verify continuity and pin mapping with a multimeter before finalizing installation.

Recommendations

Inspect mating connectors and cables for damage before use, avoid excessive mechanical stress on the connector after installation, and follow standard electrostatic discharge (ESD) precautions when handling contacts. Match wiring to the intended pinout and test connections under expected operating conditions to confirm reliable performance.
