Connettore di alimentazione per striscia LED EUROLITE 50530066, 3 poli, per strisce LED da 10 mm

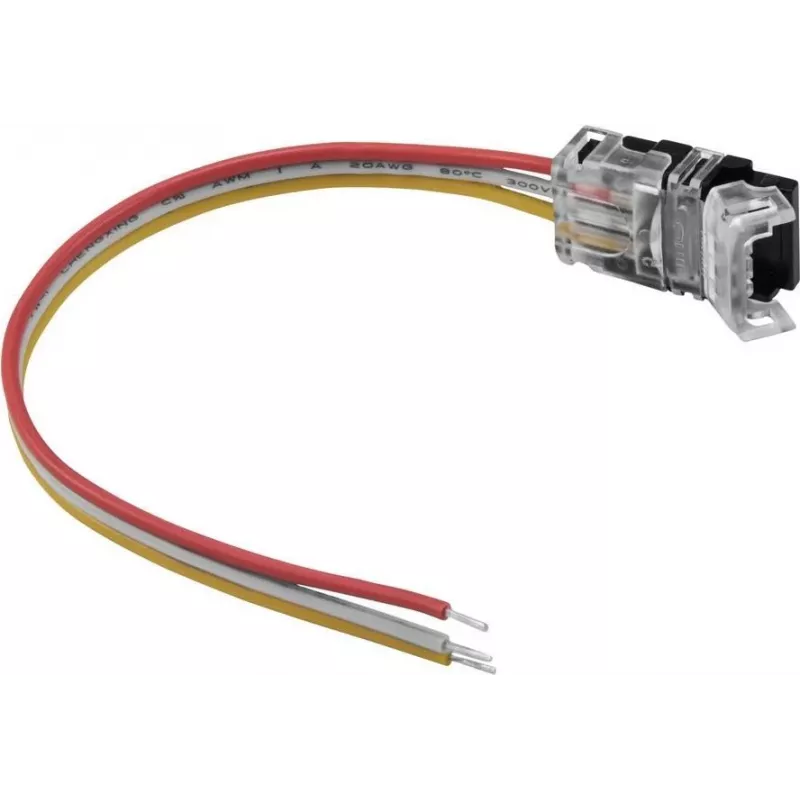

EUROLITE 50530066 is a 3-pin power connector designed to join 10 mm LED strips quickly and securely without soldering. It creates an electrical connection for three-conductor LED strips such as RGB configurations, allowing for fast installation, replacement or extension of indoor LED installations. The compact plastic housing and simple clamp mechanism reduce assembly time while maintaining reliable contact for accent lighting, backlighting and signage applications.

Advantages

The connector offers tool-free attachment for compatible 10 mm LED strips and a stable three-pin contact arrangement that minimizes intermittent connections. Its design permits rapid on-site changes and replacements without specialized soldering skills. Lightweight and compact, the connector integrates into tight spaces behind profiles or fixtures and supports tidy wiring runs for professional-looking installations.

Key specifications

How to use

Ensure the LED strip is clean and cut straight at the marked cut line for 10 mm strips. Open the connector’s clamp, insert the strip so that each copper contact aligns with the corresponding pin, then close the clamp to secure the strip in place and establish the electrical connection. Verify polarity and continuity before powering the circuit, and avoid forcing the strip into the housing to prevent contact damage.

Recommendations

For consistent performance, use the connector with LED strips specified as 10 mm and with three separate conductors. Avoid exposure to moisture and high temperatures; install inside profiles or housings when used in built-in applications. If longer runs or high currents are required, check connector current rating and consider parallel feeds or additional connectors to reduce voltage drop.

EUROLITE 50530066 provides a practical, solder-free solution for connecting 10 mm RGB and three-conductor LED strips in indoor lighting and signage projects.
