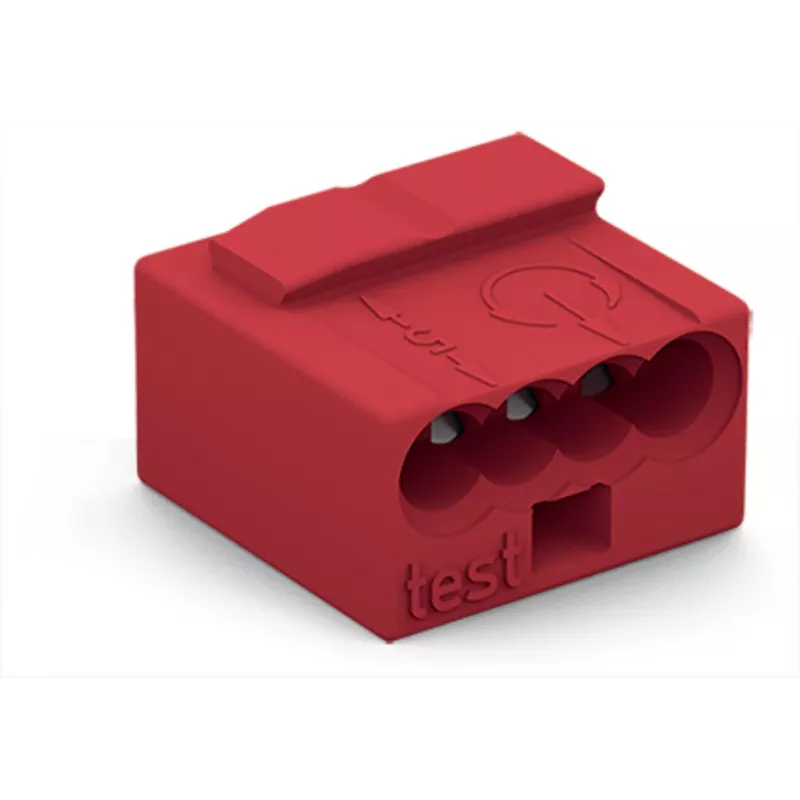

Connettore di derivazione WAGO MICRO - morsetto a 4 conduttori - rosso

The WAGO MICRO Junction Box Connector 243-804 is a compact, 4-conductor terminal block designed for reliable and efficient wiring in junction boxes. Featuring the innovative PUSH WIRE® connection technology, this connector allows for fast, tool-free installation of solid copper conductors. Its transparent housing enables visual inspection of the connection, ensuring safety and ease of use. Rated for 450 V and 24 A, it is ideal for a wide range of electrical installations.

Advantages

Tool-free push-in connection saves time and effort. Transparent housing allows for easy visual inspection of conductor insertion. Compact design saves space in junction boxes. High reliability with VDE, UL, CSA, and other approvals. Suitable for solid copper conductors from 0.5 to 2.5 mm² (20-14 AWG).

Suitable for

• Junction box wiring in residential and commercial buildings
• Lighting and power distribution
• Control cabinets and industrial installations
• DIY and professional electrical projects

Key specifications

• Product Series: WAGO 2273 Series
• Number of Conductors: 4
• Connection Technology: PUSH WIRE®
• Actuation Type: Push-in
• Color: Red
• Rated Voltage (EN): 450 V
• Rated Impulse Voltage (EN): 4 kV
• Rated Current (EN): 24 A
• Connectable Conductor Type: Solid copper conductors
• Conductor Cross-Section (Solid): 0.5 - 2.5 mm² (20 - 14 AWG)
• Stripping Length: 11 mm (0.43 inch)
• Wiring Type: Side-entry wiring
• Insulation Material: Polycarbonate (PC)
• Pollution Degree: 2
• Operating Temperature: -20 to +85 °C
• Approvals: VDE, UL, CSA, FIMKO, ENEC
• Housing Transparency: Transparent for visual inspection

Recommendations

For optimal performance, use with solid copper conductors only. Ensure proper stripping length of 11 mm for secure connection. Always follow local electrical codes and regulations.
