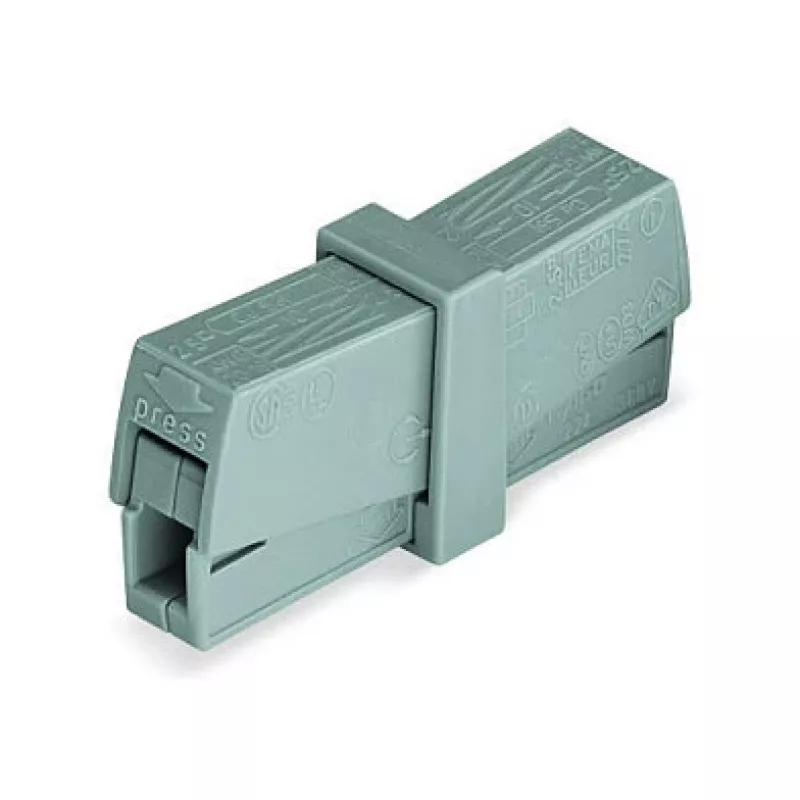

Connettore di servizio WAGO 224-201 morsetto push-in a 2 conduttori

The WAGO 224-201 is a compact 2-conductor service connector designed for quick and reliable wiring in electrical installations. Featuring the innovative Push-in CAGE CLAMP® connection technology, it enables tool-free insertion of solid and stranded conductors, significantly reducing installation time. The transparent housing provides visual inspection of the connection, while the orange operating lever ensures easy actuation. Ideal for junction boxes, lighting fixtures, and control cabinets, this terminal block offers a rated voltage of 400 V and a nominal current of 24 A, making it suitable for a wide range of industrial and commercial applications.

Advantages

Tool-free Push-in connection for solid and stranded conductors up to 2.5 mm² saves time and effort. Compact design with transparent housing allows easy inspection of conductor insertion. Orange operating lever provides clear actuation status. Rated for 400 V and 24 A, suitable for demanding environments. Vibration-proof and maintenance-free connection ensures long-term reliability.

Suitable for

• Junction boxes and distribution boards
• Lighting and luminaire connections
• Control cabinets and automation systems
• HVAC and building services
• Industrial machinery and equipment

Key specifications

• Connection technology: Push-in CAGE CLAMP®
• Number of connection points: 2
• Number of potentials: 1
• Nominal voltage (EN): 400 V
• Rated surge voltage: 4 kV
• Nominal current (EN): 24 A
• Conductor cross-section: 0.5 ... 2.5 mm² (20 ... 14 AWG)
• Stripping length: 11 mm (0.43 in)
• Color: Transparent housing, orange operating lever
• Insulation material: Polycarbonate (PC)
• Flammability class (UL94): V2
• Operating temperature: -20 ... +85 °C
• Pollution degree: 2
• Mounting type: Free wiring
• Approvals: ENEC, VDE, UL, CSA, KEMA/KEUR, PSE, RCM, CCC, EAC, RoHS, REACH

Recommendations

For optimal performance, use with WAGO ferrule-less conductors or ferrules for fine-stranded wires. Ensure proper stripping length of 11 mm for secure insertion. Suitable for use in environments with pollution degree 2.
