Connettore femmina Keystone schermato Cat.6 LSA Equip 767210

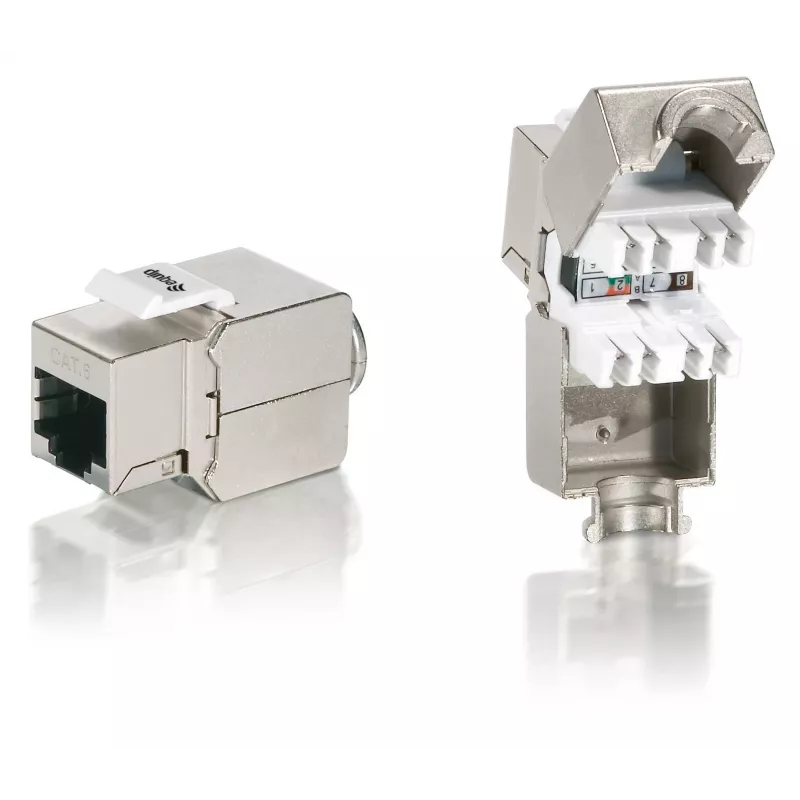

The equip® Cat.6 Shielded Keystone Jack LSA (model 767210) is a modular connector designed for Cat.6 cabling installations. Built with gold-plated contacts and a shielded housing, the keystone jack provides a secure interface for patch panels, wall-mount outlets and faceplates. Certified to ISO/IES 11801 and EN 50173 standards, it is intended for reliable data transmission in structured network cabling.

Advantages

Gold-plated connector contacts improve conductivity and resist corrosion for longer service life. The shielded design reduces electromagnetic interference, supporting signal integrity in environments with potential noise. Compact dimensions (18.1 mm × 21 mm × 38 mm) ensure compatibility with standard faceplates and patch panels. Compliance with international cabling standards guarantees predictable performance in structured network installations.

Suitable for

• Structured Cat.6 Ethernet cabling systems
• Patching in data cabinets and patch panels
• Wall-mounted network outlets and faceplates
• Environments where EMI shielding is required

Key specifications

• Model: Equip 767210
• Category: Cat.6, shielded
• Contact plating: Gold
• Standards: ISO/IES 11801, EN 50173
• Dimensions (W × D × H): 18.1 mm × 21 mm × 38 mm
• Manufacturer: EQUIP
• EAN: 4015867176504

How to use

Terminate the appropriate Cat.6 cable pairs into the LSA-style termination points following the T568A or T568B wiring scheme. Insert the keystone jack into a compatible faceplate, wall outlet or patch panel until it snaps into place. Connect patch cords to the front RJ45 port for network devices. Ensure the shield is properly grounded when installing in shielded cabling systems.

Recommendations

For best performance, use with Cat.6 patch cables and ensure proper grounding of the shield. Verify wiring polarity and test each link with a network cable tester after installation to confirm continuity and performance.
