Connettore IDE DeLOCK 65089 nero verde

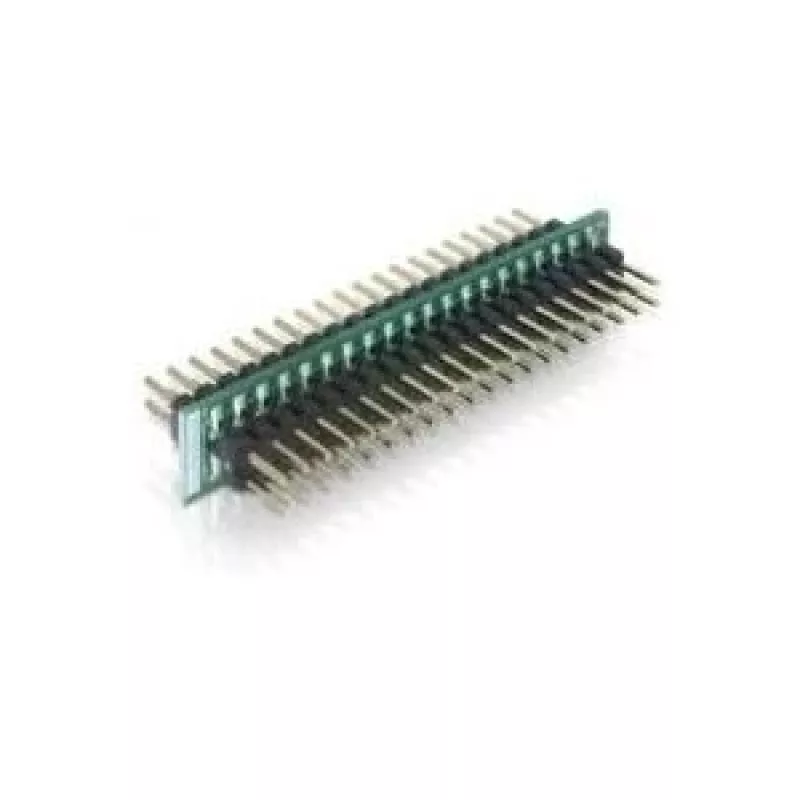

The DeLOCK IDE Connector 65089 is an adapter designed to connect a DOM module to a motherboard using a ribbon cable. It features two IDE connectors and comes in a black and green colour scheme, providing a straightforward interface for IDE devices while maintaining compatibility with systems that use ribbon-cable connections.

Advantages

The adapter offers two standard IDE connectors for simple connection between a DOM module and a motherboard. Its compact design and durable construction ensure stable data transfer and reliable mechanical connection. The black and green colouring makes the connector easy to identify within a system.

Suitable for

• Connecting a DOM (Disk on Module) to a motherboard via ribbon cable
• Integrating IDE devices in systems that require dual IDE connectors
• Replacement or extension of existing IDE cable connections

Key specifications

• Connector 1: IDE
• Connector 2: IDE
• Product colour: Black, Green
• Manufacturer: DELOCK
• MPN: 65089
• EAN: 4043619650897

How to use

Plug the adapter into the DOM module, then connect the other IDE connector to the motherboard using an appropriate ribbon cable. Ensure the cable orientation and pin alignment match the IDE headers on both the DOM and the motherboard. Secure connections to prevent accidental disconnection during operation.

Recommendations

Use the adapter with compatible DOM modules and motherboards that support IDE ribbon-cable interfaces. Verify pin alignment before powering the system and avoid excessive force when connecting to prevent bent pins or damaged connectors.
