Connettore maschio D-Sub 9 poli DeLOCK IP67 impermeabile nero arancione

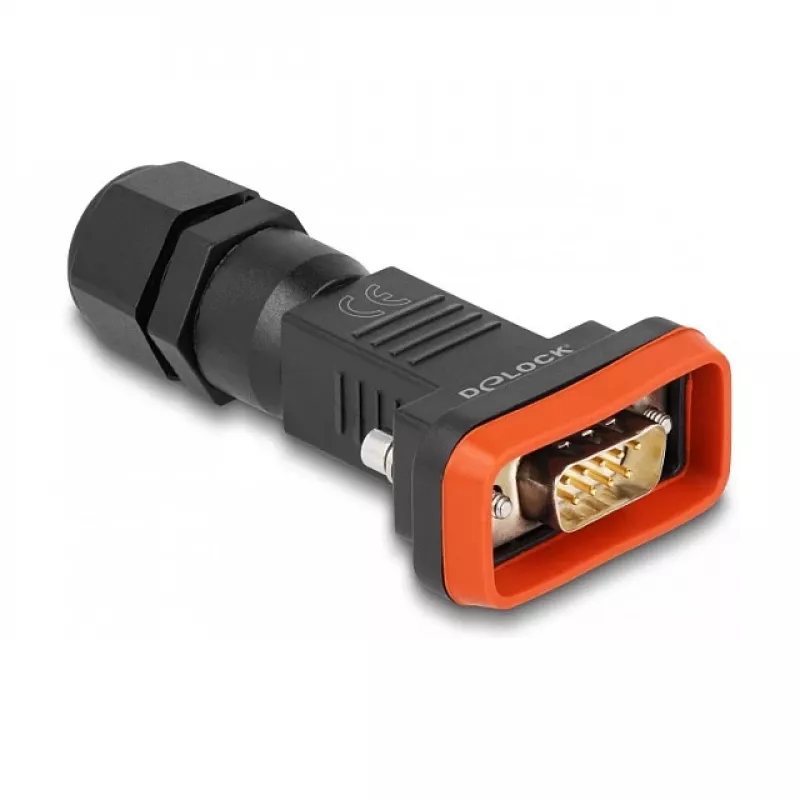

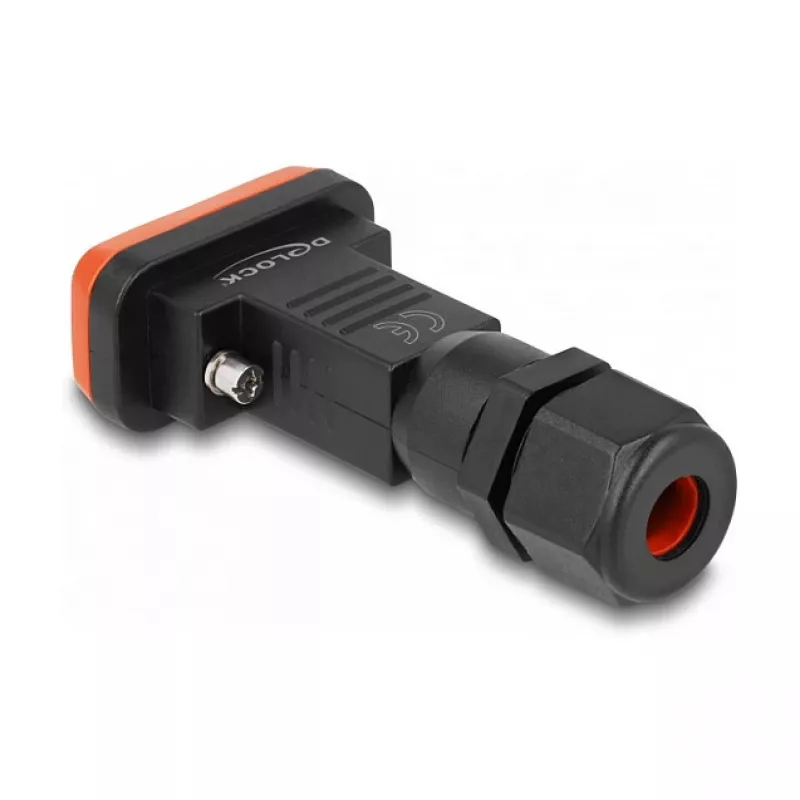

The DeLOCK D-Sub 9 pin male IP67 waterproof connector is a compact solder-assembly connector with a protective housing rated IP67. Designed for cable assembly, the connector provides reliable soldering contacts and a waterproof enclosure that protects cable wires from moisture, making it suitable for use in switch cabinets and other environments where water ingress is a concern. The unit is finished in black and orange and measures approximately 80 mm (width) x 41 mm (depth) x 22 mm (height).

Advantages

The IP67-rated housing offers dust-tight protection and immersion resistance to protect soldered cable connections. The design allows cable wires to be routed through the housing and soldered directly to the D-Sub 9 pin contacts, creating a secure electrical connection. Its compact dimensions and standard D-Sub 9 pin interface make it compatible with equipment that requires a male D-Sub connection.

Suitable for

• Cable assembly with soldered D-Sub 9 pin connections
• Applications in switch cabinets and control panels
• Environments requiring moisture protection (IP67)

Key specifications

• Connector type: D-Sub 9 pin (male)
• Contact termination: 9 soldering pins
• IP rating: IP67 (waterproof, dust-tight)
• Product colour: Black, Orange
• Dimensions (approx.): 80 mm × 41 mm × 22 mm (W × D × H)
• Brand: DELOCK, MPN: 87802, EAN: 4043619878024

How to use

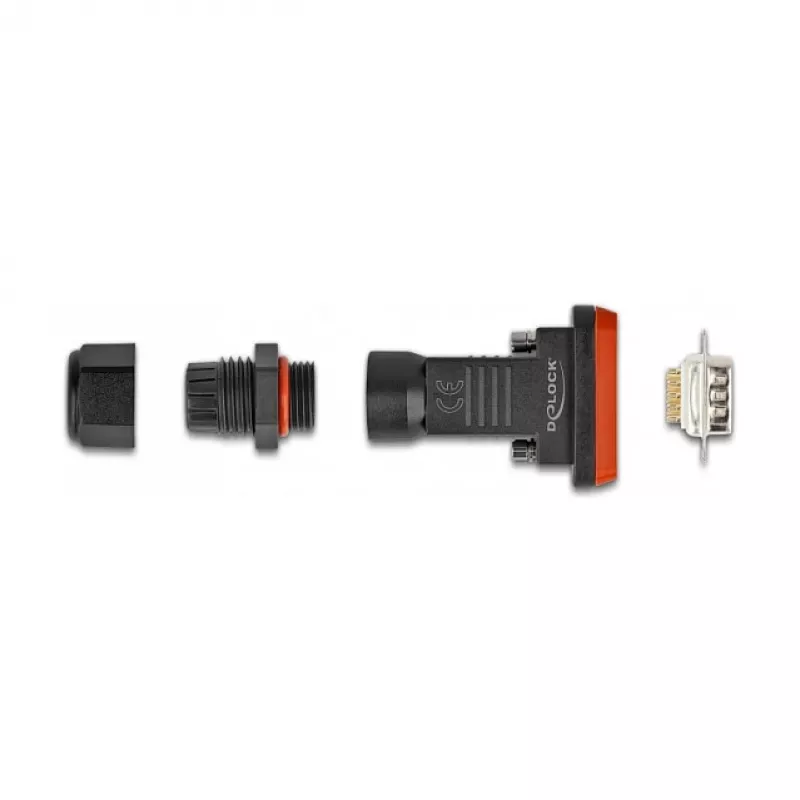

Feed the cable wires through the waterproof housing and solder each conductor to the corresponding D-Sub 9 pin contact. After soldering, mount the soldered cable and connector assembly into the housing and secure according to the housing’s fastening method. Ensure all seals are correctly positioned before closing the housing to maintain the IP67 rating.

Recommendations

Use appropriate soldering tools and observe safe soldering practices; verify wire insulation and seal integrity before installation to ensure the waterproof performance of the DeLOCK D-Sub 9 pin male connector.
