Connettore per cavo DeLOCK 66714 D-Sub HD 44 pin nero argento

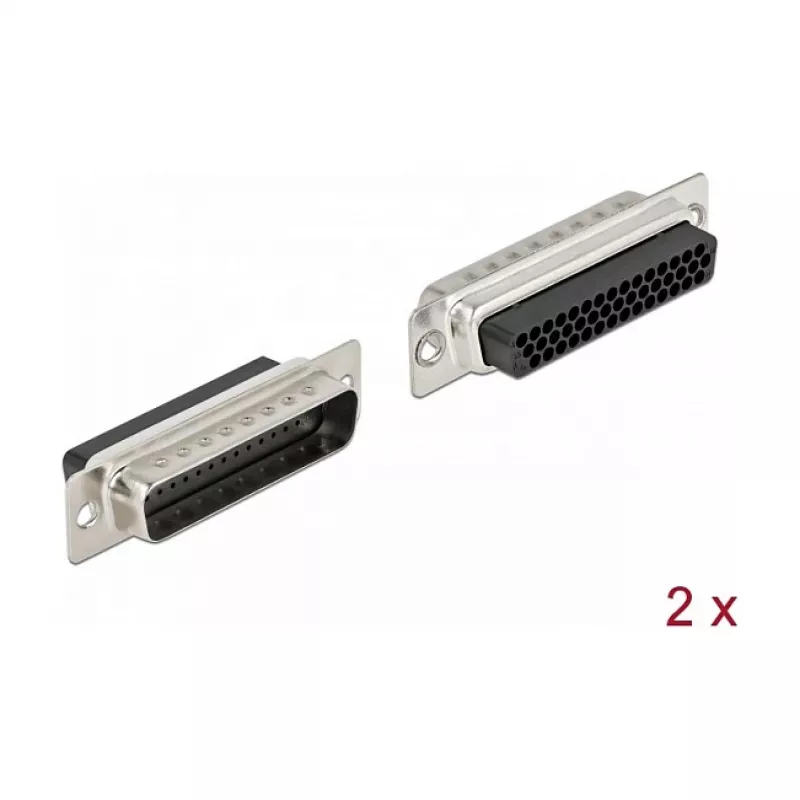

The DeLOCK 66714 Wire Connector is a female D-Sub HD 44-pin connector designed for compact cable interface and gender adapter applications. Finished in black and silver, the connector measures approximately 12.5 mm in width and height and 53 mm in depth, and is supplied as a pack of two. It provides a space-efficient footprint for connecting high-density D-Sub signals where a 44-pin female interface is required.

Advantages

The connector combines a high-density 44-pin layout with a compact mechanical profile, enabling multi-signal connections in limited space. The black and silver finish offers visual contrast for easy identification during installation. Supplied in pairs, the pack supports simultaneous replacement or parallel installations. The female housing is suitable for mating with corresponding male D-Sub HD connectors and is intended for reliable electrical contact in general-purpose electronic setups.

Suitable for

• High-density signal connections in control panels and instrumentation
• Repair or replacement of existing D-Sub HD 44-pin female interfaces
• Prototyping and small-scale electronic projects requiring compact connectors
• Cable assemblies where space-saving D-Sub connections are needed

Key specifications

• Connector type: female D-Sub high-density (44 pins)
• Colour: black housing with silver contacts/trim
• Dimensions: approx. 12.5 mm (width) x 12.5 mm (height) x 53 mm (depth)
• Pack quantity: 2 pieces
• Application: cable interface / gender adapter for electrical signal connections

How to use

Align the female D-Sub HD connector with the corresponding 44-pin male counterpart, ensuring pin rows and mounting points match before applying gentle, even pressure to engage the mating faces. Use appropriate mounting screws or fasteners if the mating connector or panel provides them to secure a stable mechanical and electrical connection. For cable assembly, follow standard wiring and soldering practices for D-Sub contacts and verify continuity with a multimeter after assembly.

Recommendations

Store connectors in a dry environment and avoid exposure to corrosive agents. When installing or removing the connector, handle by the housing rather than the contacts to reduce risk of deformation. Confirm compatibility with the mating D-Sub HD connector and check electrical ratings on the overall system to ensure safe use.
