Connettore maschio DeLOCK 66691 accessorio per circuiti stampati (PCB)

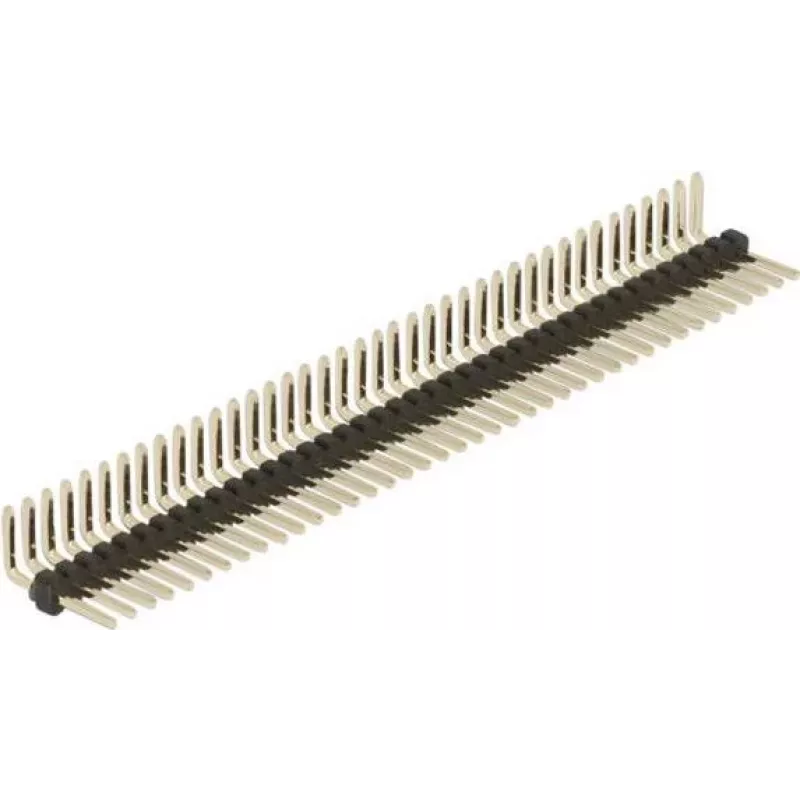

The DeLOCK 66691 pin header is an accessory for printed circuit boards designed to establish electrical connections between individual boards. Constructed from metal and plastic, it has a black and metallic appearance and is supplied in a pack of five units. Its compact dimensions make it suitable for various electronic assemblies and repair tasks.

Advantages

This pin header offers a durable metal-plastic construction and a standard form factor that facilitates reliable board-to-board connections. The pack contains five identical headers for multiple uses, and the modest dimensions allow installation in limited spaces on PCBs.

Suitable for

• Connecting daughterboards or modules to main PCBs
• Prototyping and small-scale electronics assemblies
• Repairing or replacing existing pin header connectors on circuit boards

Key specifications

• Brand: DELOCK
• Model / MPN: 66691
• EAN: 4043619666911
• Material: metal and plastic
• Colour: black and metallic
• Quantity: 5 pieces
• Length: 50.8 mm
• Depth: 7.4 mm
• Height: 2 mm
• Category: Printed circuit board (PCB) accessory

How to use

Position the pin header on the PCB pads or through-holes according to the board layout, then solder each pin to secure the mechanical and electrical connection. Ensure correct alignment and polarity where applicable before soldering. After soldering, inspect joints for solid connections and trim any excess leads if necessary.

Recommendations

Use suitable soldering tools and safety precautions when installing the pin header. Verify board compatibility and clearance for the specified dimensions (50.8 × 7.4 × 2 mm) to ensure proper fit and function.
