Connettore maschio di rete IEC-C14 Bachmann 915.271 bianco

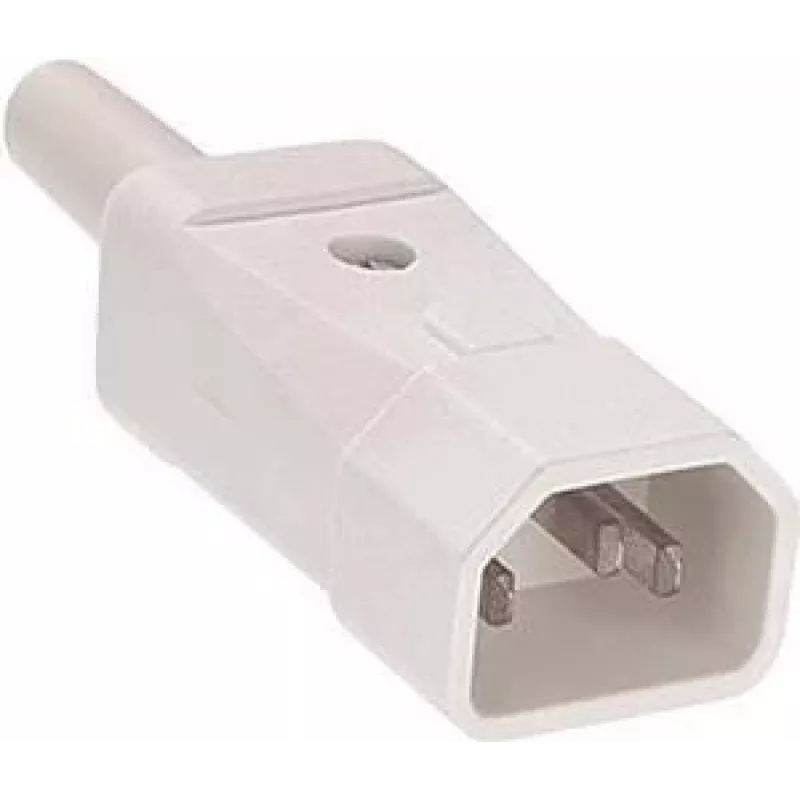

The Bachmann 915.271 Power Plug C14 in white is an IEC C14 inlet-style power connector designed for AC input voltage up to 250 V and a maximum current of 10 A. It supports connection of thermoplastic cables up to 3G 1.00 mm² and includes an integrated earthing contact. The compact white housing and standard C14 interface make it suitable for replacing or integrating into equipment power inlets in home and office environments.

Advantages

The plug features a screw terminal for secure conductor connection, a kink protection nozzle to prevent cable bending at the entry point, and a strain relief to maintain stable contacts under mechanical stress. Its thermoplastic construction offers electrical insulation and durability while the earthing contact ensures safe operation when connected to grounded installations.

Suitable for

• Power input for desktop computers, monitors, and small appliances
• Replacement or retrofit of equipment power inlets with IEC C14 standard
• Home and office power distribution where up to 10 A is required

Key specifications

• Brand: Bachmann
• Model / MPN: 915.271
• Type: IEC C14 power plug (inlet-style)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Cable compatibility: thermoplastic cables up to 3G 1.00 mm²
• Features: earthing contact, screw terminal, kink protection nozzle, strain relief
• Color: White
• EAN: 4016514005826

How to use

Strip the cable conductors to the appropriate length, open the screw terminal and insert the live, neutral and earth conductors according to the IEC pin assignment. Tighten the screws to secure the conductors, route the cable through the kink protection nozzle and position the strain relief before closing the housing or mounting the plug. Verify the connection is tight and that the earthing contact is properly engaged before applying mains voltage.

Recommendations

Use only thermoplastic cables up to 3G 1.00 mm² as specified, ensure connections are made with the power disconnected, and observe local electrical codes. For installations requiring more than 10 A or different cable types, choose a suitably rated connector.
