Connettore maschio HDMI-A su morsettiera DeLOCK 65201

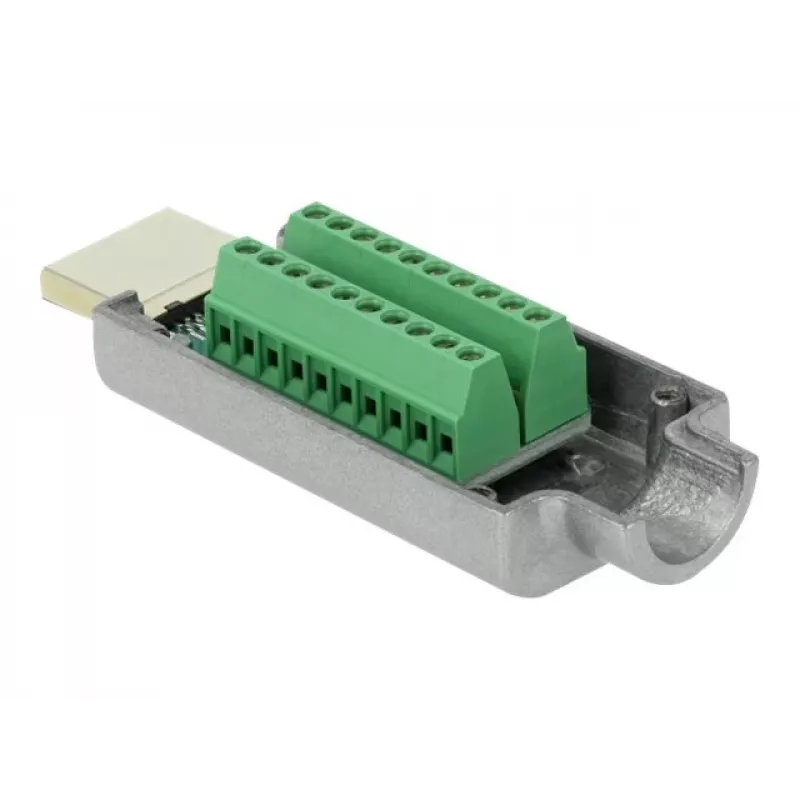

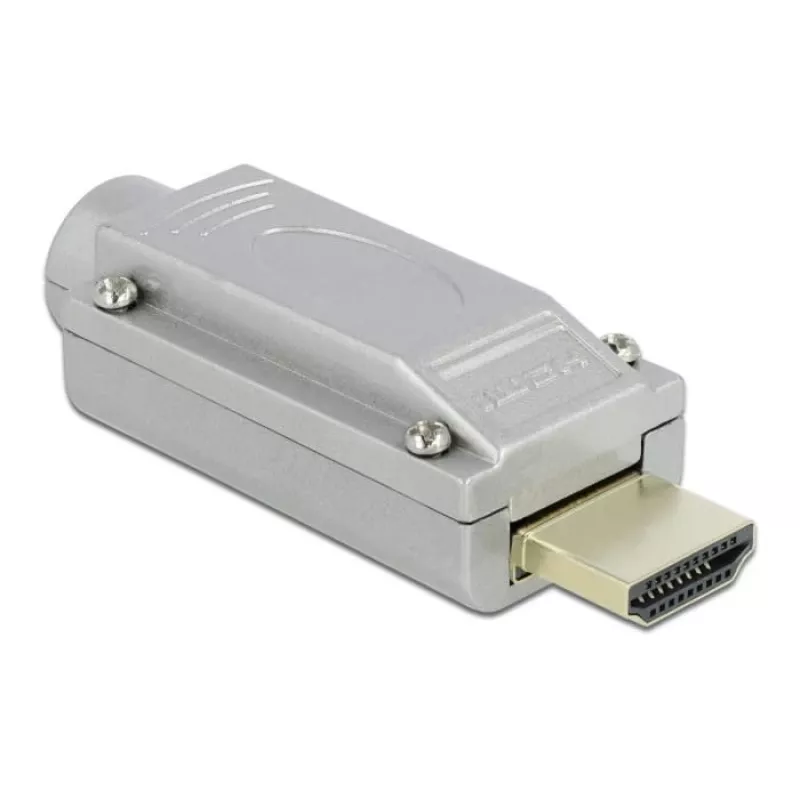

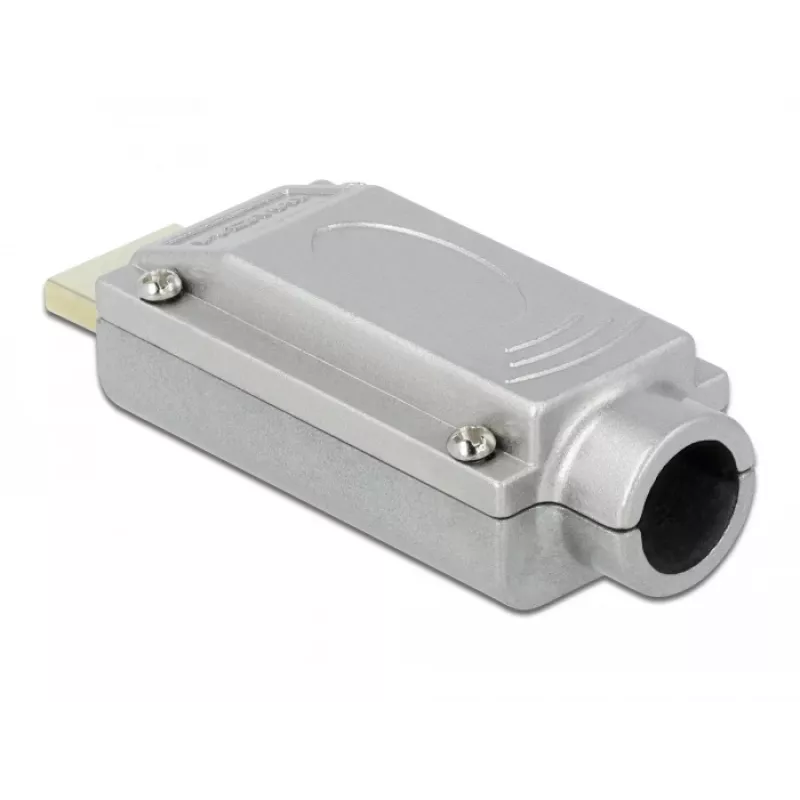

The DeLOCK HDMI-A male to Terminal Block (65201) is an adapter that allows direct connection of bare wires to an HDMI-A male interface. Housed in a metal enclosure, the adapter protects the internal PCB from dirt and mechanical damage while offering a compact form factor with dimensions 23.5 × 61.5 × 16 mm and a grey finish.

Advantages

The metal housing provides mechanical protection and contributes to a stable installation. The adapter accepts stripped wires via a terminal block, simplifying wiring for industrial or custom HDMI installations. Its compact size allows integration in confined spaces where a reliable HDMI connection with custom cabling is required.

Suitable for

• Industrial HDMI connections requiring custom wiring
• Custom AV installations where HDMI must connect to bare wires
• Repair or modification of equipment with HDMI interfaces

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 65201
• EAN: 4043619652013
• Connector: HDMI-A male to terminal block
• Housing: metal (grey)
• Dimensions (W × D × H): 23.5 × 61.5 × 16 mm

How to use

Strip the insulation from the wires to the length required by the terminal block, insert them into the correct terminals and secure them according to the terminal’s fastening method. After wiring, connect the HDMI-A male plug to the HDMI receptacle on the display or source device. Ensure all connections are fixed and the housing is mounted so the PCB remains protected.

Recommendations

Use this adapter in applications where a secure mechanical enclosure is needed; avoid exposure to liquids and extreme temperatures. Verify wiring assignments and signal requirements before connecting to sensitive AV equipment.
