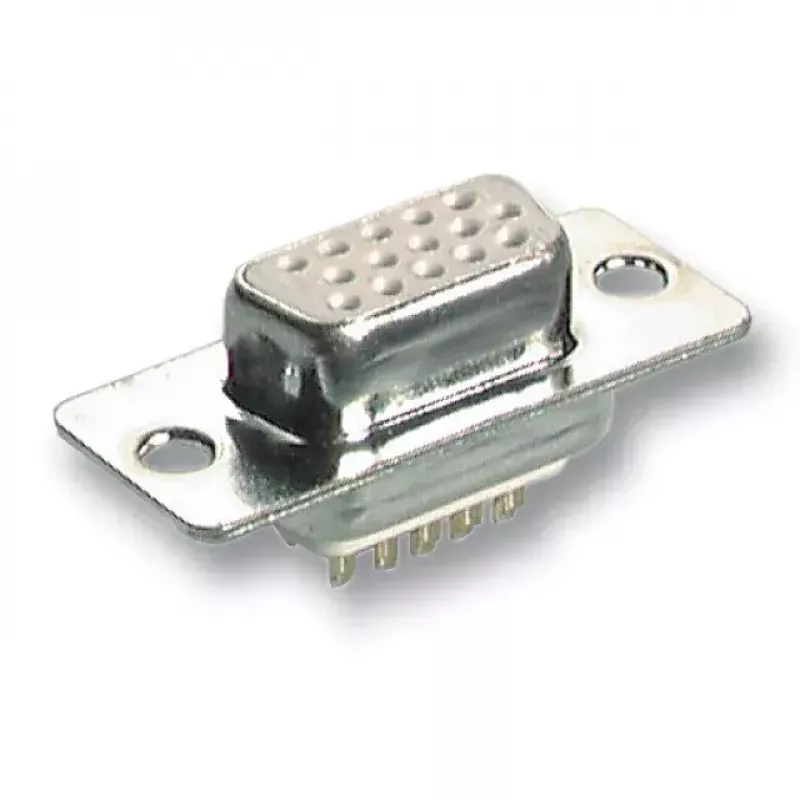

Connettore maschio per cavi EFB Elektronik 34501.1 D-Sub 15 poli metallico

The EFB Elektronik 34501.1 wire connector is a 15-pin D-Sub (DSub) connector with a metallic, tin-plated housing designed for signal and data connections. Supplied as a single unit per pack, this connector offers a sturdy metal shell and is intended for use in electronic equipment where a compact DSub 15-pin interface is required.

Advantages

The tin-plated housing provides corrosion resistance and reliable electrical contact. The connector meets quality level III and is rated for at least 50 mating cycles, ensuring repeatable connections. Its metallic finish enhances mechanical protection for the contacts and cable entry while maintaining good conductivity.

Suitable for

• Signal and data wiring in industrial and consumer electronics
• Replacement or repair of devices using a DSub 15-pin interface
• Prototyping and DIY electronic projects requiring a compact 15-pin connector

Key specifications

• Manufacturer: EFB Elektronik
• MPN: 34501.1
• EAN: 4049759052195
• Type: DSub 15-pin (D-Sub)
• Housing: tin-plated (metallic)
• Quality level: III
• Mating cycles: >= 50
• Pack quantity: 1 connector

How to use

Mount the connector into the device or panel cutout designed for a DSub 15-pin interface and secure it using the appropriate screws or fastening hardware. Terminate wires to the connector pins according to the circuit schematic, observing correct pin assignments and ensuring secure solder or crimp connections as applicable. After wiring, fit the tin-plated housing together and check continuity and signal integrity before full operation.

Recommendations

For reliable long-term performance, avoid excessive mechanical stress during mating and unmating; ensure correct alignment before connecting. Use appropriate strain relief for the cable and protect the connector from corrosive environments to preserve the tin plating.
