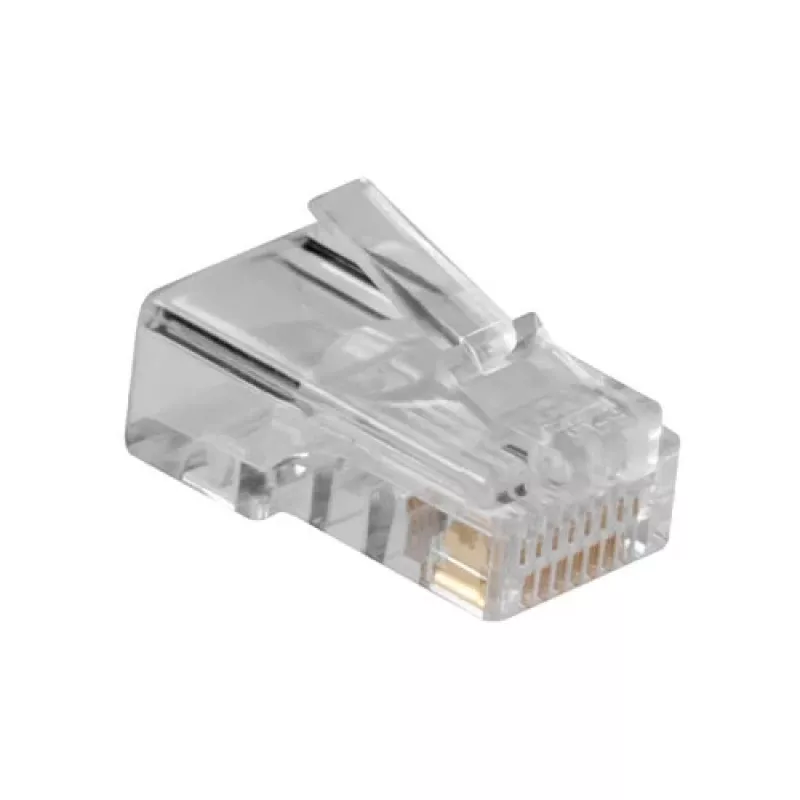

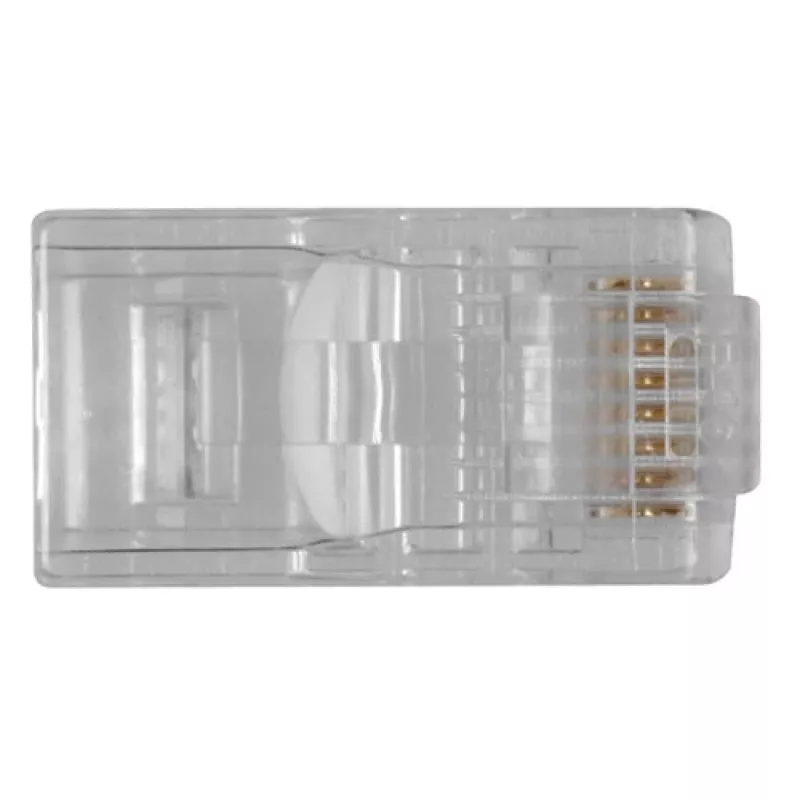

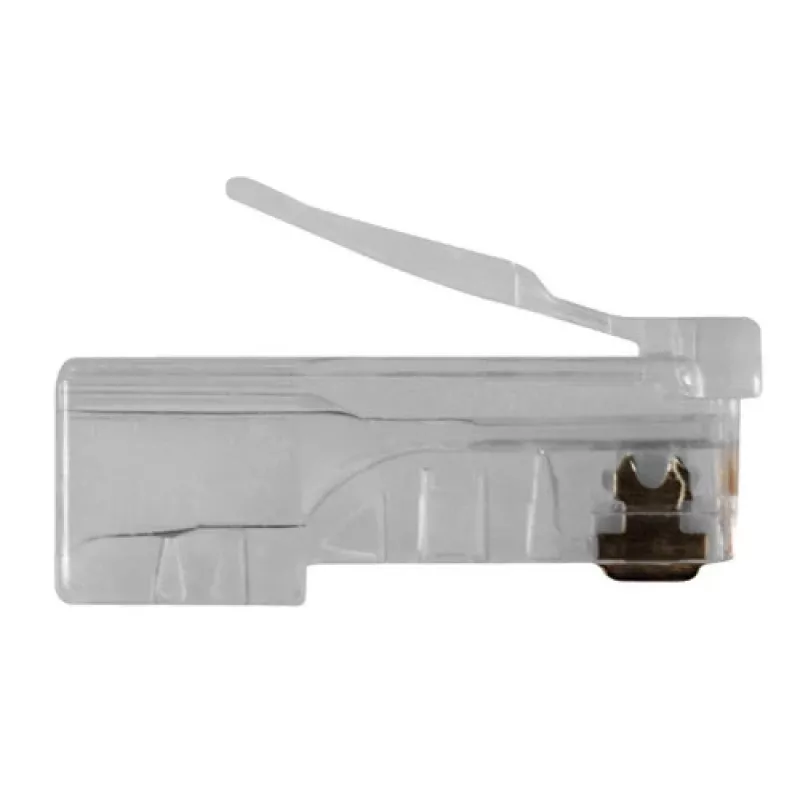

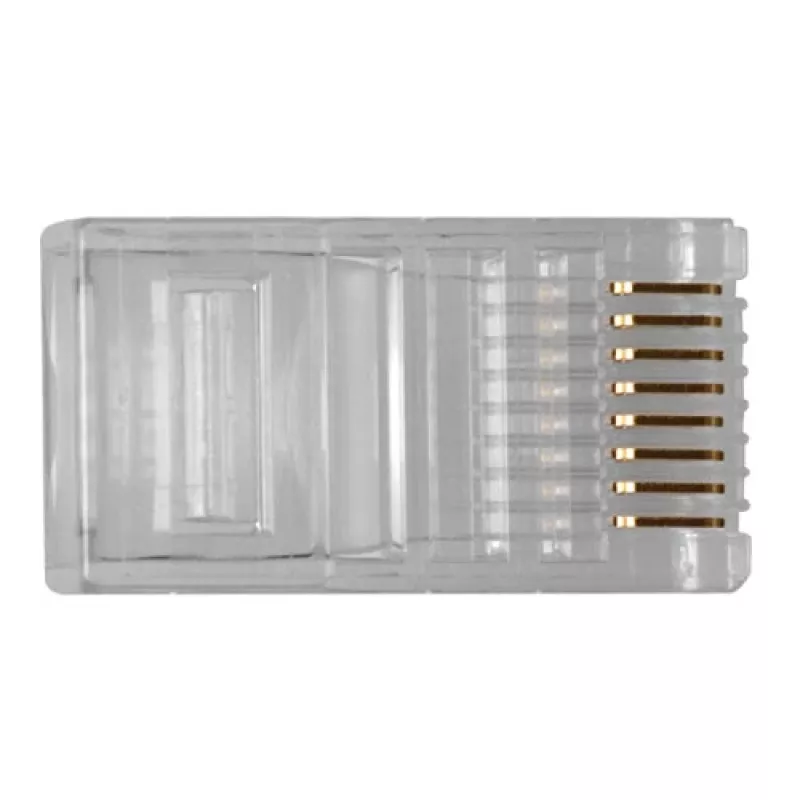

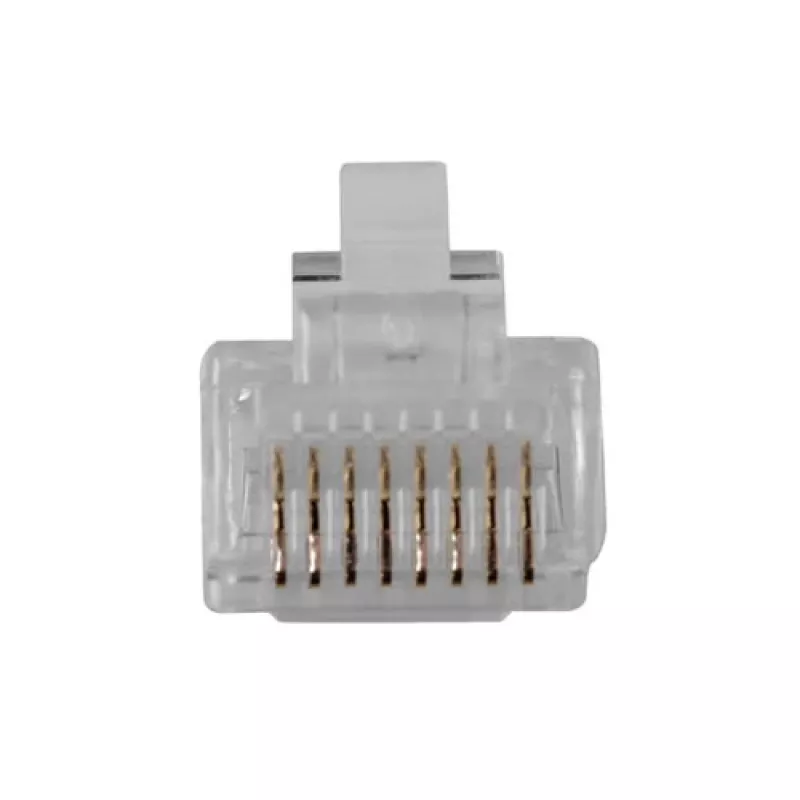

Connettore modulare ACT RJ45 (8P/8C) per cavo tondo con conduttori rigidi

The ACT RJ45 Connector TD108M for Round Cable with Solid Conductors is a modular 8P/8C plug designed to terminate round network cables with solid copper conductors. Manufactured from acrylonitrile butadiene styrene (ABS) in a transparent finish, the connector provides clear visibility of conductor alignment during installation and a standard RJ-45 interface for Ethernet networks. It is suitable for creating permanent, low-profile terminations for patch cords and in-wall cabling where solid-conductor cable is used.

Advantages

The transparent ABS housing allows installers to verify wire order and full insertion before crimping, reducing wiring errors. The connector is optimized for solid conductors to ensure reliable contact pressure and long-term electrical continuity. Its modular 8P/8C design meets common RJ-45 dimensional standards, making it compatible with standard crimp tools and network equipment. The durable plastic construction offers mechanical stability while keeping the plug lightweight.

Suitable for

• Terminating solid-conductor Cat5e or Cat6 round network cables
• Creating custom patch cords for home or office networks
• In-wall cable terminations where solid conductors are specified
• Field installations and structured cabling projects requiring visible conductor alignment

Key specifications

• Connector type: RJ-45 (8P/8C)
• Compatible cable type: round cable with solid conductors
• Housing material: acrylonitrile butadiene styrene (ABS), transparent
• Physical form factor: modular plug for crimp termination
• Typical use: Ethernet network terminations for copper solid conductors

How to use

Strip the outer sheath of the round cable to expose the individual solid conductors, taking care not to nick the insulation. Arrange the conductors according to the desired wiring standard (T568A or T568B) and ensure each conductor reaches the end of its slot in the transparent housing so alignment is visible. Insert the plug into a compatible crimp tool and apply firm, even pressure to secure contacts and cut any excess conductor. Verify continuity and correct pairing with a cable tester before final installation.

Recommendations

Use only with solid (solid-core) copper conductors; do not use with stranded cables. Verify wiring order visually through the transparent housing prior to crimping. Use a crimp tool suitable for RJ-45 modular plugs and test completed cables with a network cable tester to confirm proper termination and continuity.
