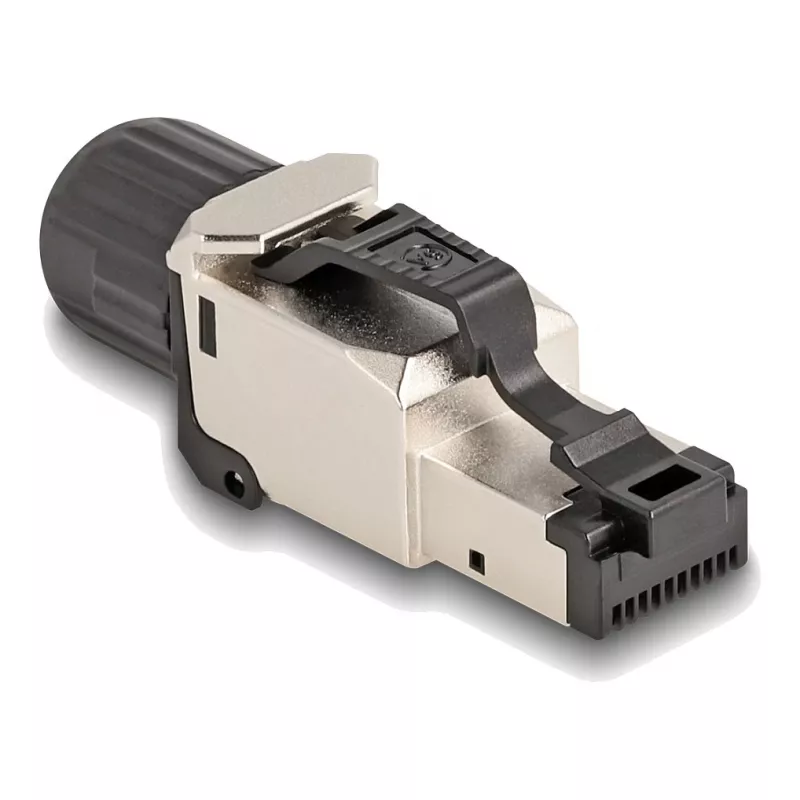

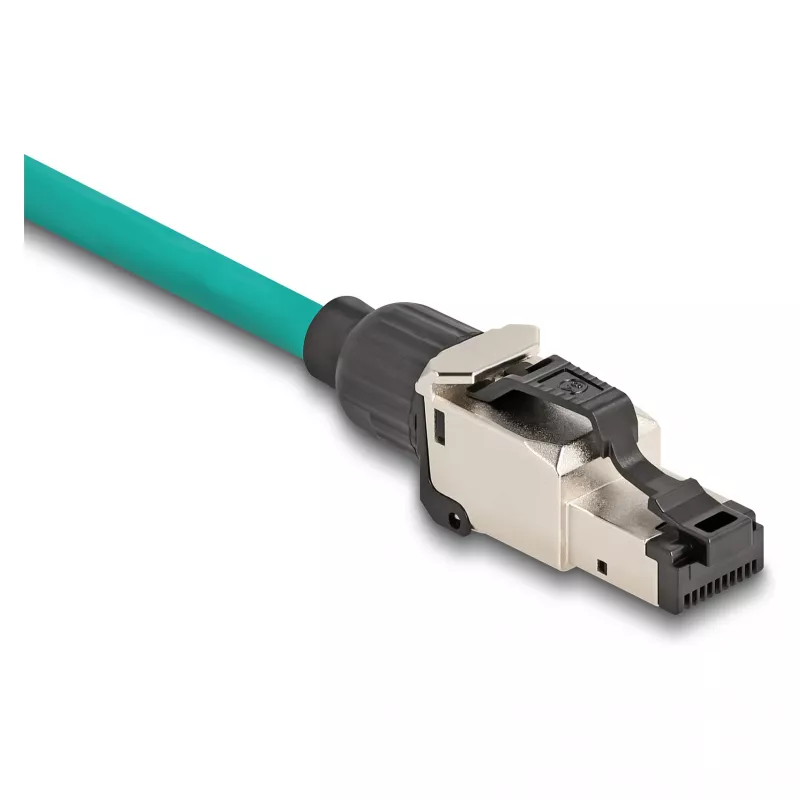

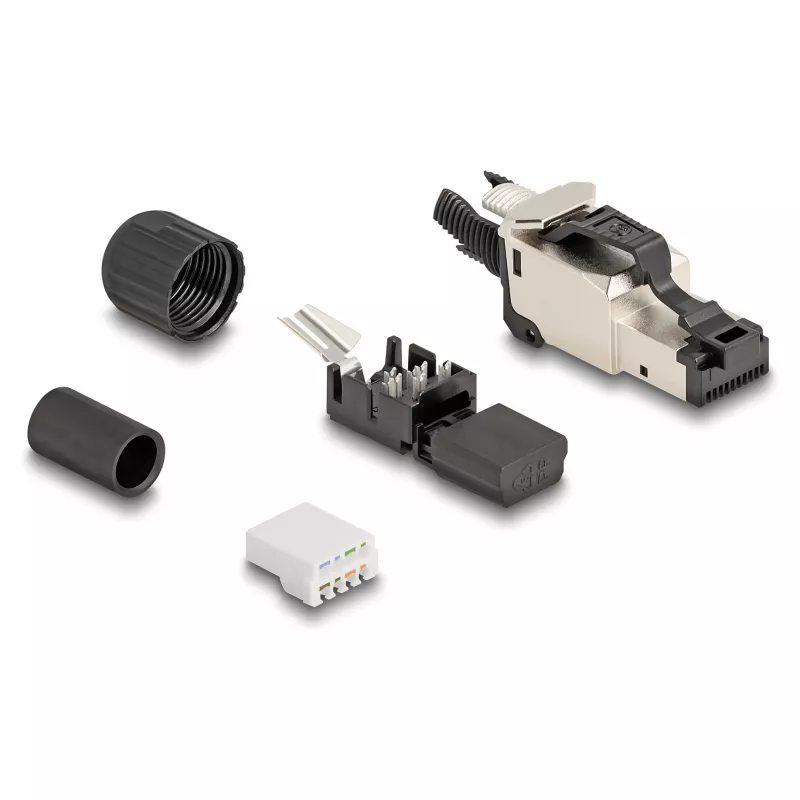

Connettore per cavi DeLOCK 86017 RJ45/LSA nero argento connettore maschio

The DeLOCK 86017 wire connector is a tool-free RJ45/LSA male plug designed for reliable PROFINET and Ethernet connections. Finished in black and silver, the compact connector (16.4 × 48.7 × 13.9 mm) supports installation on cables with two wire pairs and is intended for 100 Mbps operation.

Advantages

The connector enables time-saving, tool-free installation and is compatible with RJ45/LSA terminations. Its compact dimensions and durable metal contact plating provide consistent electrical contact for industrial and office network environments. The design supports male RJ45 connections while clearly specifying the two-pair, 100 Mbps limitation.

Suitable for

• Connecting PROFINET network cables
• Ethernet links up to 100 Mbps with two wire pairs
• Tool-free on-site cable terminations and repairs

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 86017
• EAN: 4043619860173
• Type: RJ45/LSA male wire connector
• Color: Black and silver
• Supported wire pairs: 2 pairs
• Maximum data rate: 100 Mbps
• Dimensions (W × D × H): 16.4 × 48.7 × 13.9 mm

How to use

Prepare the cable by stripping the outer jacket to expose the two wire pairs required. Insert the wires into the corresponding RJ45/LSA positions according to the wiring scheme used. Push the wires fully into the connector and secure the housing; the design allows completing the termination without additional tools. Verify the connection and test the link at 100 Mbps to ensure proper contact.

Recommendations

Use this connector only with cables and applications that require two wire pairs and support up to 100 Mbps. Do not use it for Gigabit Ethernet or four-pair applications. Ensure proper wire insertion and testing after installation to confirm reliable network operation.
