Connettore per filo BNC EFB Elektronik 52502.1

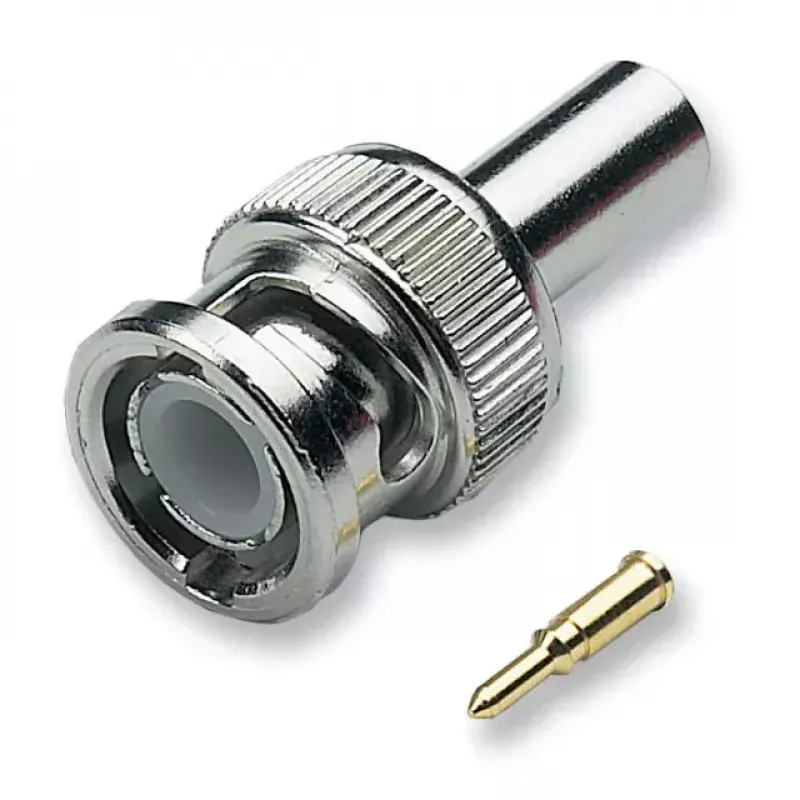

The EFB Elektronik 52502.1 BNC crimp wire connector is a straight, single-piece connector made of high-quality brass with a nickel finish. It is intended for creating reliable coaxial connections in cables requiring a BNC interface. Supplied as one piece per pack, this connector is suitable for assembly and repair tasks where a compact, durable BNC termination is needed.

Advantages

The nickel-plated brass construction provides corrosion resistance and mechanical strength. The straight crimp design enables a secure electrical and mechanical connection when used with appropriate crimping tools and coaxial cables. Packaged as a single unit, it is convenient for small-scale installations or individual repairs.

Suitable for

• Repairing or terminating coaxial cables with BNC interfaces
• Audio/video equipment connections (CCTV, monitors, recorders)
• Laboratory and test equipment requiring BNC terminations

Key specifications

• Manufacturer: EFB Elektronik
• Manufacturer part number (MPN): 52502.1
• EAN: 4049759039035
• Connector type: BNC, straight, crimp
• Material: Brass with nickel plating
• Pack quantity: 1 piece

How to use

Prepare the coaxial cable by stripping the outer jacket, braid and dielectric to the lengths recommended for the chosen crimp pin and ferrule. Insert the conductor and dielectric into the connector body, ensure correct seating of the center pin and outer sleeve, then crimp the ferrule with a suitable crimping tool. Verify mechanical integrity and electrical continuity after crimping.

Recommendations

Use this BNC crimp connector with compatible coaxial cable types and a matched crimping die. Inspect the connector and cable for damage before assembly and perform a continuity or signal test after installation to ensure reliable performance.
