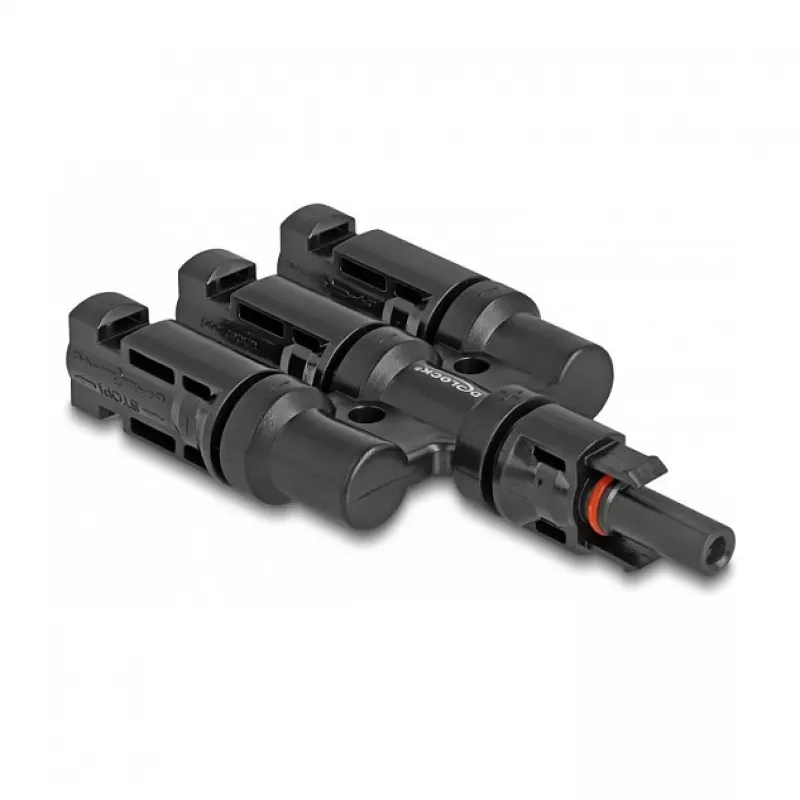

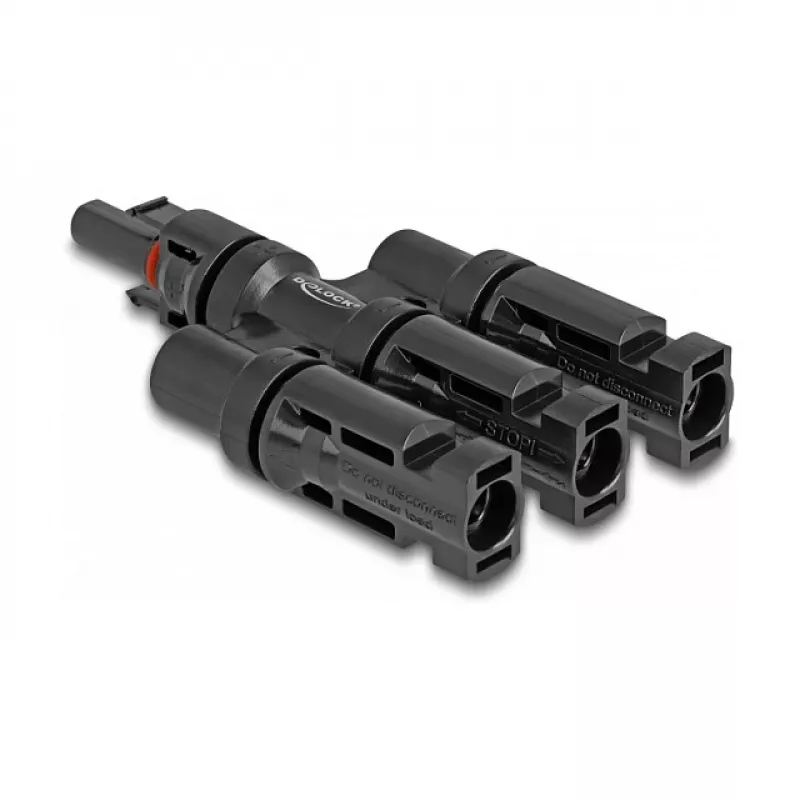

Connettore per pannello solare DeLOCK DL4 1 x femmina a 3 x maschio nero

The DeLOCK DL4 solar connector is a compact wiring accessory for photovoltaic systems, converting one female input into three male outputs to distribute generated power. It is designed for reliable electrical transfer between solar panels and downstream components and comes in a black housing with dimensions of 39 mm (W) x 104 mm (D) x 18 mm (H).

Advantages

The DL4 connector family features a snap-in mechanism that prevents accidental disconnection while allowing release with the appropriate tool. The connector housing is rated IP67, providing protection against dust and temporary immersion in water. Its compact form factor supports tidy cable routing in installations.

Suitable for

• Splitting a single solar panel output to multiple inputs
• Connecting photovoltaic modules within residential or small commercial arrays
• Inline junctions where an IP67-rated outdoor connector is required

Key specifications

• Type: DL4 solar connector, 1 x female to 3 x male
• Brand: DELOCK
• Model / MPN: 60025
• EAN: 4043619600250
• Color: Black
• Dimensions: 39 mm (W) x 104 mm (D) x 18 mm (H)
• Ingress protection: IP67 (dust and waterproof)

How to use

Insert the corresponding DL4 male and female mating connectors until the snap-in click is felt to ensure a secure connection. To separate the connectors, use the proper release tool to disengage the snap-in mechanism. Ensure cables are correctly routed and secured according to the installation guidelines of your photovoltaic system.

Recommendations

Use the connector only in systems with compatible DL4 mating parts and within the electrical and environmental limits defined by the system components; inspect connections periodically for wear and seal integrity, especially after exposure to outdoor conditions.
