Connettore RJ45 UTP EFB Elektronik E-MO 8/8 SF trasparente

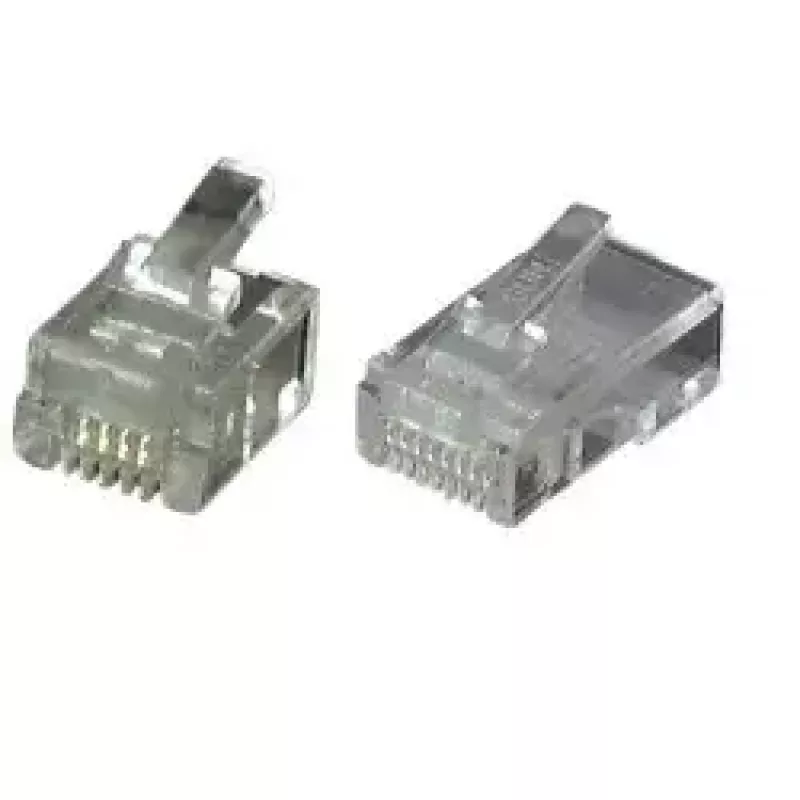

The EFB Elektronik RJ45 UTP E-MO 8/8 SF Transparent connector is an unshielded modular RJ45 (8P8C) plug designed for use with flat network cable. Its transparent housing allows visual inspection of wire placement and contacts. The product is supplied in packs suitable for bulk installation and is compatible with standard RJ45 terminations.

Advantages

The transparent RJ45 UTP connector provides clear visibility of conductor alignment and contact seating, simplifying installation and troubleshooting. Designed for U/UTP cabling, it supports common Ethernet terminations and offers reliable electrical contact when crimped with the appropriate tool. The modular 8/8 design fits standard RJ45 jacks and network equipment.

Suitable for

• Crimping onto flat U/UTP network cable
• Bulk installation of Ethernet terminations
• Field termination and small-scale network repairs
• Use with compatible crimping tools for RJ45

Key specifications

• Connector type: RJ45 (8P8C)
• Cabling: U/UTP (unshielded twisted pair)
• Material / colour: transparent housing
• Pack quantity: 100 pieces per pack
• Brand / MPN: EFB Elektronik / 37514.1-100
• EAN: 4049759133887

How to use

Prepare the flat U/UTP cable by stripping the outer jacket and arranging the individual conductors according to the required wiring standard (T568A or T568B). Insert the conductors fully into the transparent RJ45 connector so that each wire reaches its corresponding contact. Use a suitable crimping tool to compress the connector and establish contact between the wires and the plug contacts. Verify the termination with a network tester if required.

Recommendations

For reliable results, use a compatible crimping tool designed for RJ45 connectors. EFB Elektronik recommends tools specified for RJ45 terminations; example compatible tool numbers include E-MUC410 for RJ10/RJ11/RJ12/RJ45 and Art.-No. 39945.2 for RJ69. Ensure correct wiring order and full insertion of conductors before crimping.
