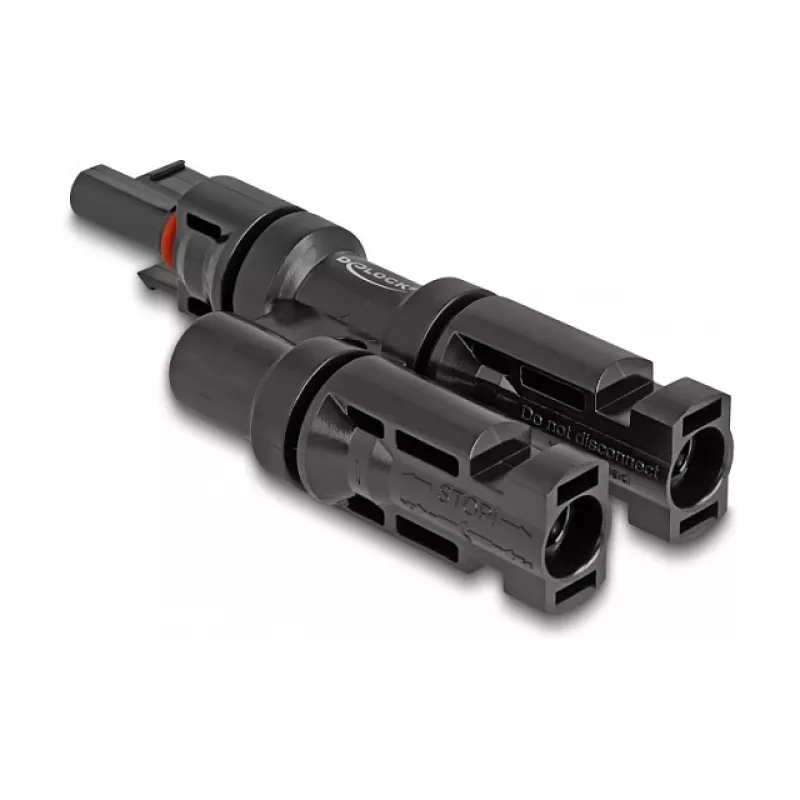

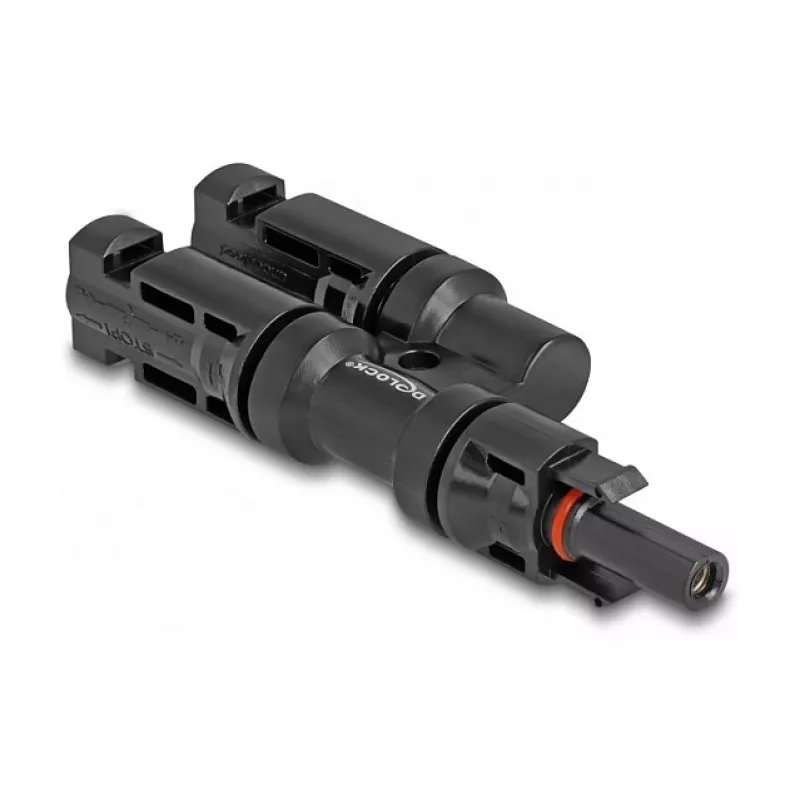

Connettore solare DeLOCK DL4 1 femmina su 2 maschio nero

This DL4 solar panel connector by DELOCK provides a 1 female to 2 male configuration for transmitting power from a photovoltaic system. The connector is black, compact and designed for reliable energy transfer in solar applications. Dimensions: 39 mm (W) x 104 mm (D) x 18 mm (H). Origin: China.

Advantages

The DL4 plugs and sockets use a snap-in mechanism to prevent accidental disconnection and ensure a secure electrical contact. The connector is rated IP67 for dust and water protection, and the connection can be unlocked again with the appropriate tool for maintenance or reconfiguration.

Suitable for

• Connecting solar panels in PV arrays
• Branching one input to two outputs in rooftop systems
• Outdoor installations requiring dust and water resistance

Key specifications

• Brand: DELOCK
• Model/MPN: 60023
• EAN: 4043619600236
• Type: DL4 solar connector, 1 female to 2 male
• Color: Black
• Ingress protection: IP67 (dust and waterproof)
• Dimensions: 39 × 104 × 18 mm (W × D × H)
• Origin: China

How to use

Insert the corresponding DL4 male and female contacts until the snap-in mechanism engages to establish the electrical connection. To disconnect, use the appropriate release tool to unlock the snap-in latch and separate the plugs. Ensure connections are clean and properly aligned before engaging the snap mechanism.

Recommendations

Use the DL4 connector only within the specified system ratings and environmental conditions. Inspect contacts for damage or contamination before installation and use a compatible release tool for safe disconnection. For permanent installations, confirm load and voltage compatibility with system specifications.
