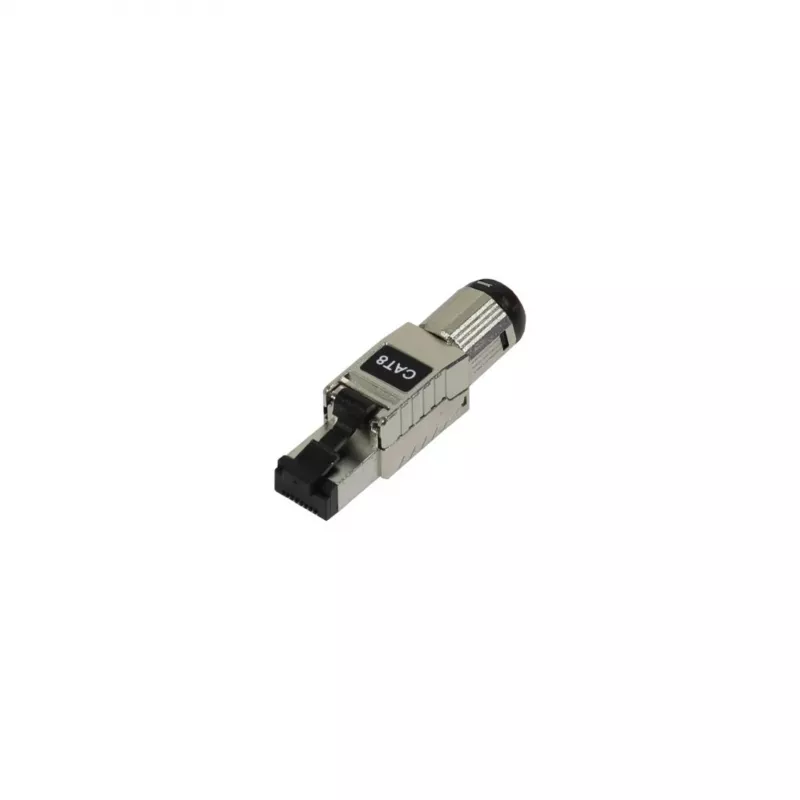

Connettore TP plug RJ45 SYNERGY21 CAT8.1 Class I Field-Terminable Tool-Free - connettore per cavo di installazione

The SYNERGY21 TP Plug RJ45 CAT8.1 Class I is a high-performance, field-terminable connector designed for professional installation cable. This tool-free plug enables quick and reliable termination without special tools, making it ideal for on-site installations in data centers, high-performance networks, and industrial Ethernet environments. Fully shielded with a zinc die-cast housing, it supports data rates up to 40 Gbit/s and a frequency bandwidth of 2000 MHz, ensuring exceptional signal integrity for demanding applications.

Advantages

Tool-free termination saves time and reduces installation errors. The robust zinc die-cast housing provides excellent shielding against electromagnetic interference. Supports Power over Ethernet (PoE, PoE+, 4PPoE) for flexible device powering. Gold-plated contacts (50µm) ensure reliable connectivity over multiple mating cycles. Certified by GHMT (PVP) for guaranteed performance.

Suitable for

• Data center cabling infrastructure
• High-speed network installations (40GBASE-T)
• Industrial Ethernet applications
• Structured cabling systems requiring CAT8.1 performance

Key specifications

• Connector Type: RJ45 Plug
• Category: CAT 8.1 (Class I)
• Data Rate Support: Up to 40 Gbit/s
• Frequency Bandwidth: Up to 2000 MHz
• Termination Type: Field-terminable, Tool-less IDC
• Shielding: Fully Shielded (Zinc Die-cast housing)
• Wire Compatibility: Solid and Stranded Wire (22-26 AWG)
• Contact Plating: Gold-plated (50µm)
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Standard Compliance: ISO/IEC 11801-1, EN 50173-1, TIA-568.2-D
• Certification: GHMT certified (PVP)
• Wiring Scheme: T568A / T568B (color coded)
• Operating Temperature: -20°C to +70°C
• Number of Contacts: 8P8C
• Installation Cycles: Up to 10 re-terminations

Recommendations

For optimal performance, use with CAT8.1 or higher rated installation cables. Ensure proper cable preparation and follow color coding for T568A or T568B wiring schemes. Suitable for both solid and stranded conductors.
