Connettore VGA Kindermann 7489000200

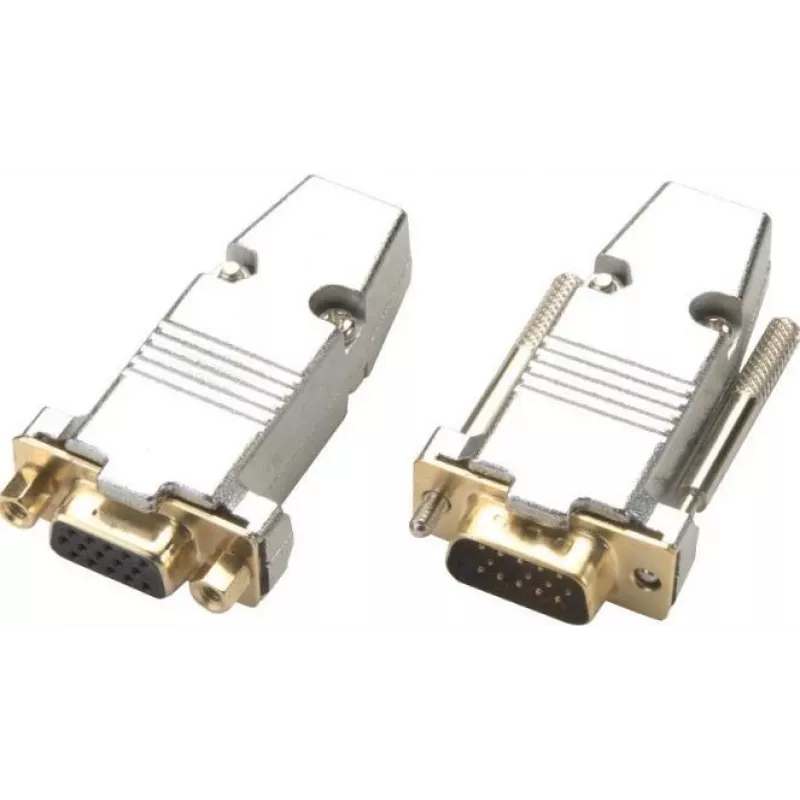

The Kindermann 7489000200 VGA wire connector is a silver-coloured connector designed for reliable VGA signal connections. Supplied as a pack of two, it features a metal casing with screws and gilded contacts for soldering, providing durable mechanical protection and stable electrical contacts for AV installations and cable assemblies.

Advantages

The metal casing with screws ensures secure fastening and mechanical robustness while gilded contacts facilitate consistent signal transmission and good solderability. Supplied as a twin pack, it provides a spare connector for installation or replacement needs.

Suitable for

Key specifications

How to use

Prepare the VGA cable by stripping conductors and tinning the wires as needed. Position the connector contacts for soldering and solder each conductor to the corresponding contact. Assemble the metal casing and secure it with the supplied screws to provide mechanical strain relief and shielding. Verify continuity and signal integrity after assembly.

Recommendations

Use appropriate soldering tools and ventilation; ensure correct pin mapping for VGA to avoid signal issues. Tighten the casing screws securely but avoid over-torquing to prevent thread damage.
