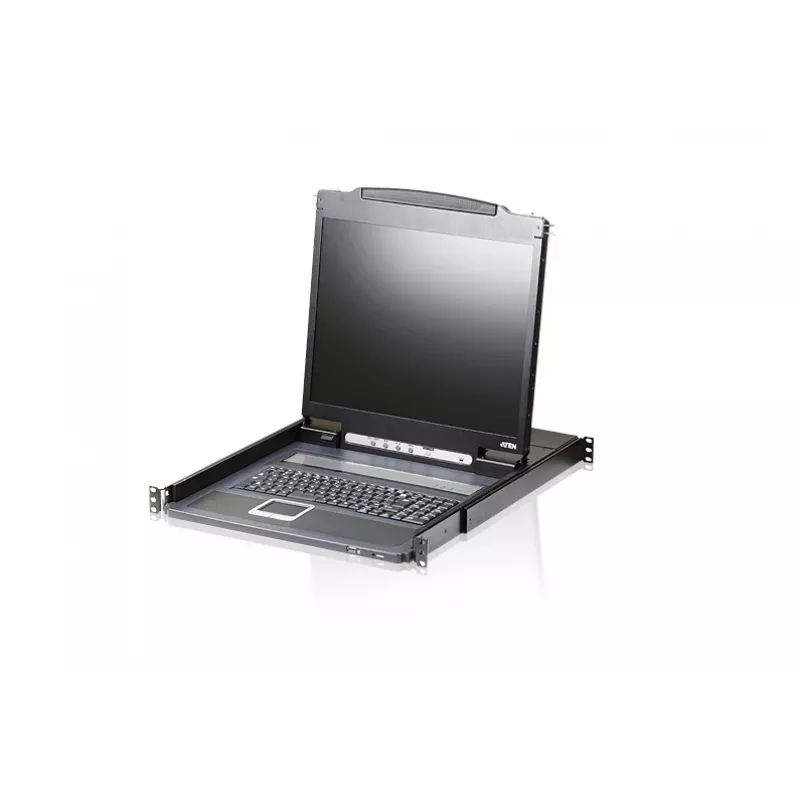

Console rack ATEN CL3000N 19" (48,3 cm) LCD 1280x1024 VGA USB/PS/2 alluminio 1U

The ATEN CL3000N is a 1U rack console combining a 19" (48.3 cm) LED-backlit LCD with an integrated keyboard and touchpad to provide a compact front-end console for compatible KVM switches. The unit supports 1280 x 1024 resolution, VGA video output and both USB and PS/2 keyboard/mouse connections. Housed in aluminium with a 1U profile, the console is designed for server rooms and data cabinets where space efficiency and reliable operation are required.

Advantages

The CL3000N integrates a full keyboard, LED-backlit 19" LCD and touchpad into a single 1U aluminium housing, saving rack space and simplifying cable management. It supports both USB and PS/2 interfaces for broad peripheral compatibility and provides a standard 1280 x 1024 resolution for clear on-screen display. The design has undergone MIL-STD-810G vibration testing to verify reliable operation in environments with significant vibration exposure.

Suitable for

• Server rooms and data cabinets with limited rack space
• Environments requiring both USB and PS/2 peripheral support
• Installations exposed to vibration (e.g., factory floors, vehicles)

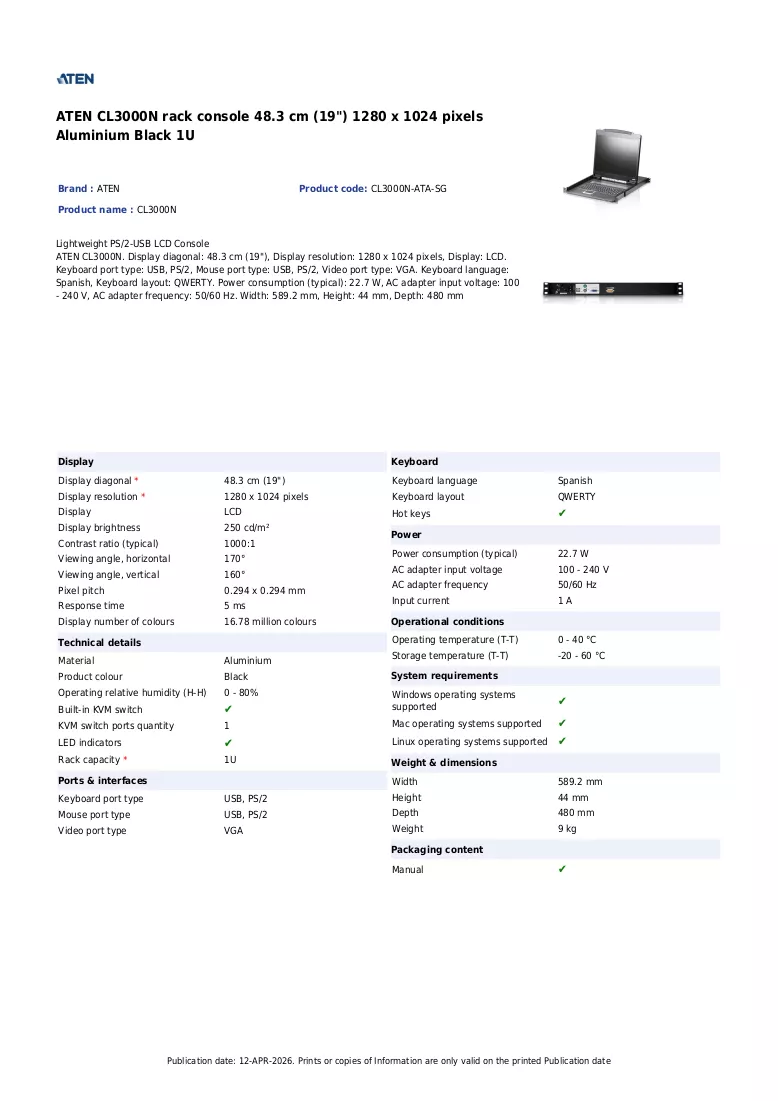

Key specifications

• Display: 19" (48.3 cm) LED-backlit LCD, 1280 x 1024 resolution
• Video output: VGA
• Keyboard/mouse interfaces: USB and PS/2
• Housing: Aluminium, 1U rack-mountable
• Dimensions: 589.2 x 44 x 480 mm
• Power: 100–240 V AC, 50/60 Hz; typical consumption 22.7 W
• Manufacturer model (MPN): CL3000N-ATA-2XK06SG; EAN: 5711783160212
• Environmental test: MIL-STD-810G Method 514.6 (vibration) certification

How to use

Mount the CL3000N in a standard 19" rack occupying 1U of space and connect the console's VGA cable to the KVM switch or server video output. Attach keyboard and mouse via the USB or PS/2 ports according to the connected equipment. Connect AC power (100–240 V, 50/60 Hz) and power on the unit. Use the integrated keyboard and touchpad to control connected servers through the KVM switch interface.

Recommendations

For reliable long-term operation, install the console in a properly ventilated rack and secure rack mounting to minimise vibration. Choose USB or PS/2 connections consistent with your server hardware and update KVM switch firmware when applicable. Follow standard ESD precautions when connecting peripherals.
