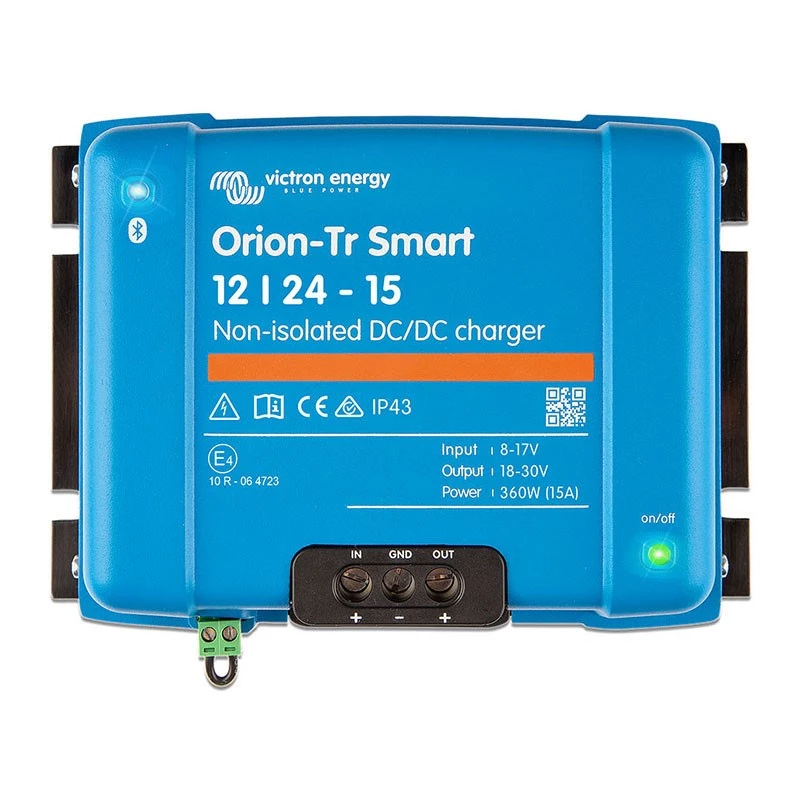

Convertitore DC-DC Victron Energy Orion-Tr Smart 12/24V 15A ORI122436140 non isolato

Victron Energy Orion-Tr Smart 12/24V 15A ORI122436140 is a non-isolated DC-DC converter designed to convert between 12V and 24V systems with a maximum output current of 15 A. The unit provides regulated voltage conversion for automotive, marine and off-grid applications where a reliable step-up or step-down supply is needed. Integrated smart functionality enables Bluetooth monitoring and configuration to adapt charging behavior and output settings to system requirements.

Advantages

The Orion-Tr Smart converter offers stable voltage regulation under changing input conditions and protects connected loads during alternator charging and system transitions. Its non-isolated topology allows compact installation and efficient power transfer in systems where galvanic isolation is not required. Built-in Bluetooth support enables real-time status monitoring and parameter adjustment from a mobile device. The converter includes thermal and overload protection to maintain safe operation.

Suitable for

Key specifications

How to use

Install the converter in a dry, ventilated location close to the battery or power source and secure it to a solid surface. Connect input and output cables with appropriate gauge to support up to 15 A continuous current, observing correct polarity. Use the Bluetooth connection to configure output voltage settings and monitor performance during initial setup and operation. Follow standard safety practices: disconnect batteries before wiring, use fuses on both input and output sides, and verify correct voltage selection before connecting sensitive loads.

Recommendations

For reliable long-term operation, select cable sizes and fusing that match the maximum current rating and keep the converter ventilated to avoid thermal shutdown. Use Bluetooth monitoring to periodically check status and update configuration when system changes occur, and avoid deploying the unit where galvanic isolation is required for safety or regulatory reasons.
