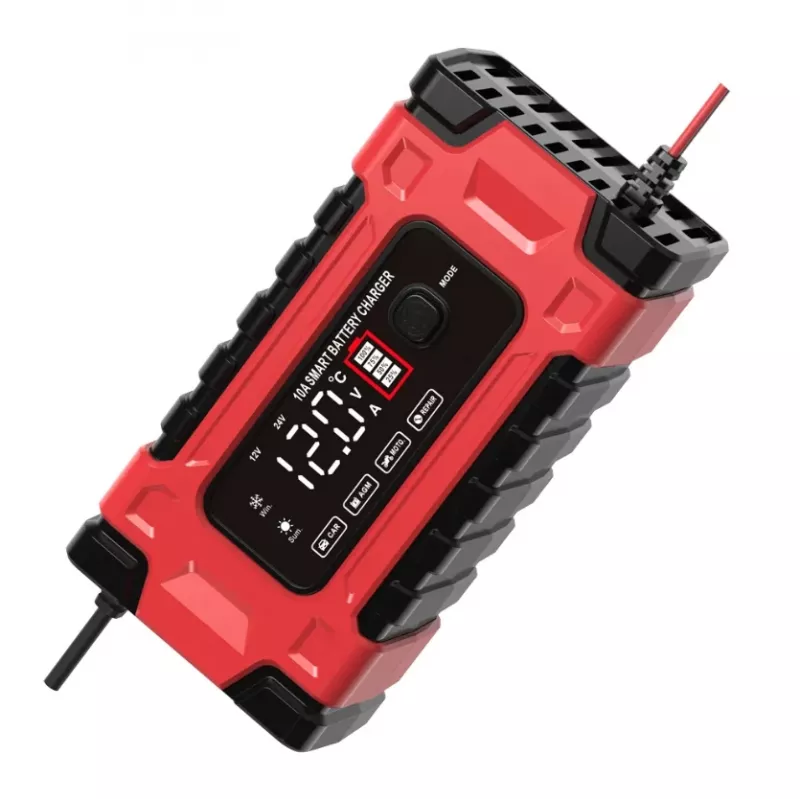

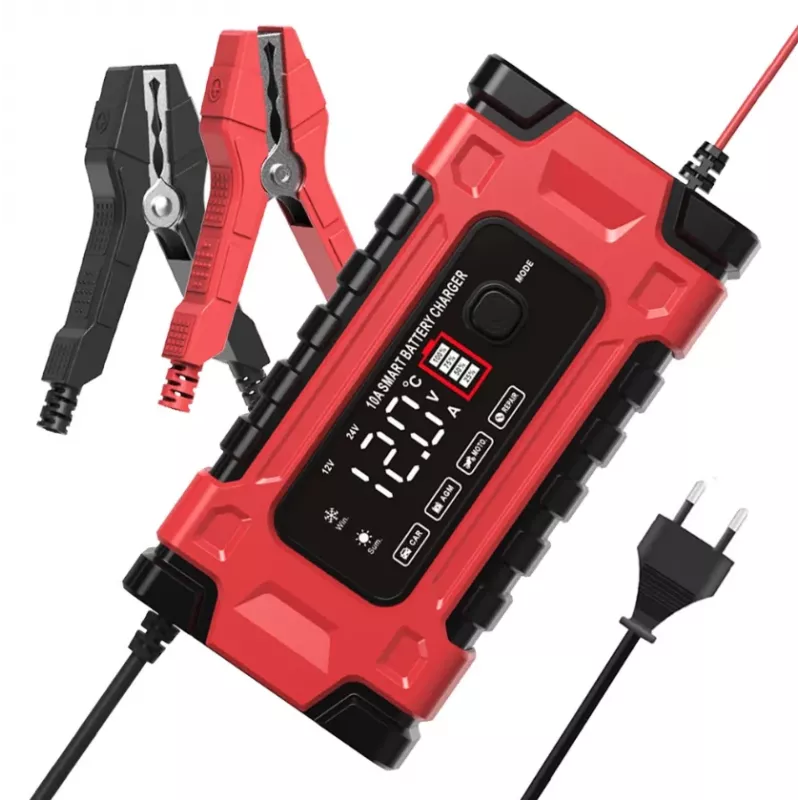

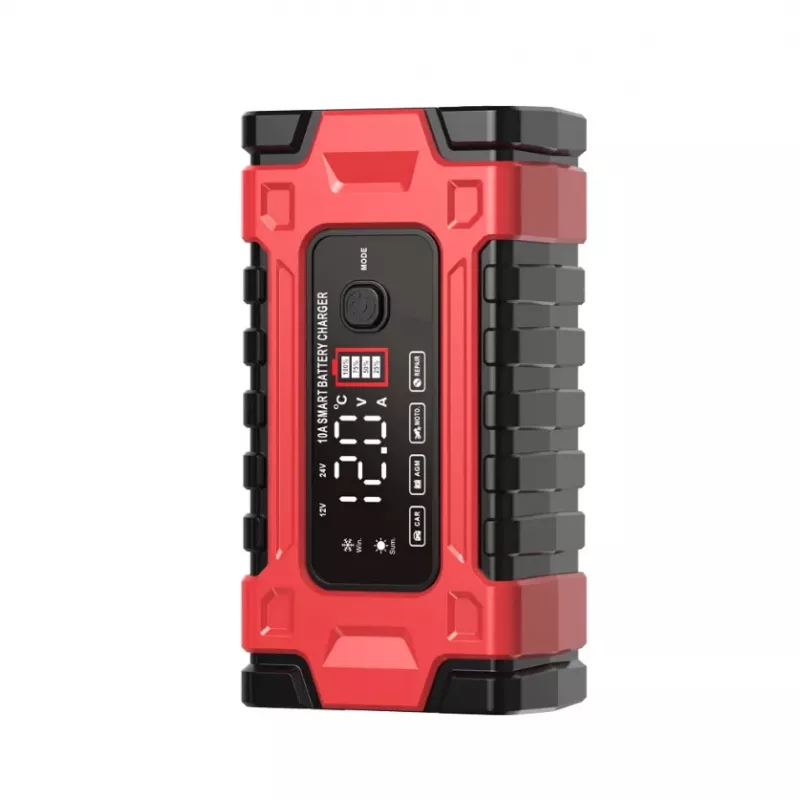

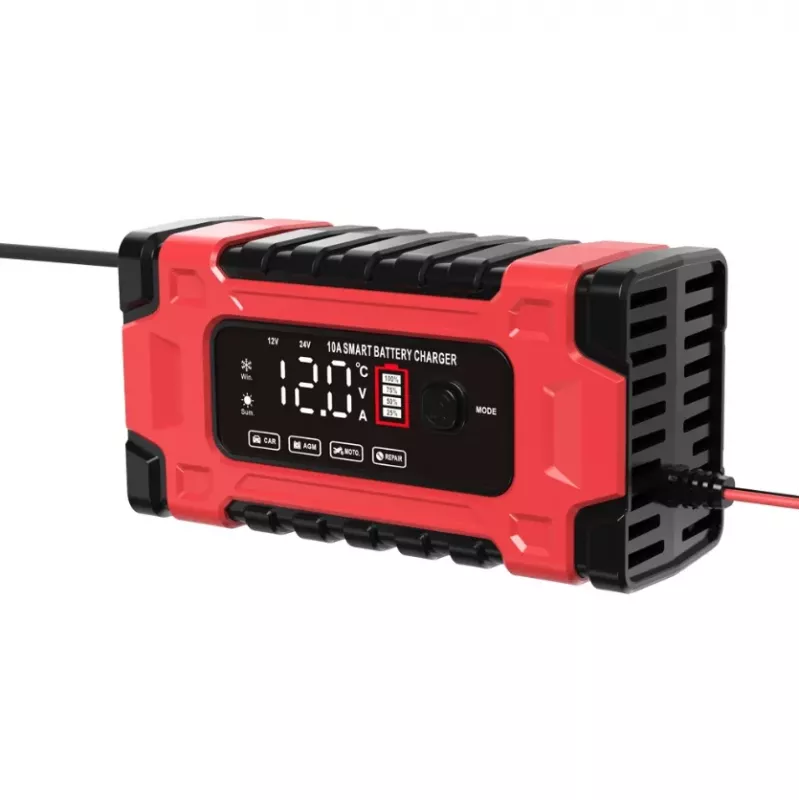

Extralink Caricabatterie automatico per batteria 12/24V 10A

The Extralink Automatic Charger is a versatile and intelligent battery charger designed for 12V and 24V lead-acid batteries. With a maximum charging current of 10A at 12V and 5A at 24V, it automatically detects the battery voltage and selects the appropriate charging mode. This charger features a 7-stage smart charging process including desulfation, soft start, bulk, absorption, analysis, float, and maintenance stages, ensuring optimal battery health and longevity. It is equipped with multiple protection features such as reverse polarity, short circuit, overcharge, over-current, over-voltage, and over-temperature protection. The built-in LCD digital display provides real-time charging status, and the pulse repair function helps rejuvenate sulfated batteries. The charger is housed in an ABS flame retardant shell with a built-in cooling fan for efficient heat dissipation. It is compatible with a wide range of lead-acid batteries including AGM, GEL, SLA, Wet, Deep Cycle, Calcium, and EFB, with recommended capacities of 6Ah to 180Ah at 12V and 6Ah to 90Ah at 24V. Safety certified with CE, RoHS, and FCC, this charger also features winter mode and automatic temperature compensation for reliable performance in various conditions.

Advantages

Automatic voltage detection for 12V and 24V batteries, 7-stage smart charging for optimal battery care, pulse repair function to extend battery life, comprehensive protection features for safe operation, and a clear LCD display for easy monitoring.

Suitable for

• Automotive batteries (cars, motorcycles, trucks)
• Marine and boat batteries
• RV and caravan batteries
• Deep cycle batteries for solar systems
• AGM, GEL, SLA, Wet, Calcium, and EFB batteries

Key specifications

• Input Voltage: AC 100-240V, 50/60Hz
• Output Voltage: DC 12V / 24V (Automatic Detection)
• Max Charging Current (12V): 10A
• Max Charging Current (24V): 5A
• Rated Input Power: 180W
• Battery Type Compatibility: Lead-Acid (AGM, GEL, SLA, Wet, Deep Cycle, Calcium, EFB)
• Charging Stages: 7-Stage Smart Charging
• Protection Features: Reverse Polarity, Short Circuit, Overcharge, Over-current, Over-voltage, Over-temperature
• Display Type: LCD Digital Display
• Cooling System: Built-in Cooling Fan
• Housing Material: ABS Flame Retardant Shell
• Operating Temperature: -10°C to 45°C
• Charging Efficiency: >85%
• Recommended Battery Capacity (12V): 6Ah - 180Ah
• Recommended Battery Capacity (24V): 6Ah - 90Ah
• Safety Certifications: CE, RoHS, FCC
• Special Features: Pulse Repair Function, Winter Mode, Automatic Temperature Compensation
• Output Cable Type: Alligator Clips

Recommendations

For best results, use with lead-acid batteries within the recommended capacity range. Ensure proper ventilation during charging and avoid charging frozen batteries. The pulse repair function is ideal for maintaining and restoring sulfated batteries.
