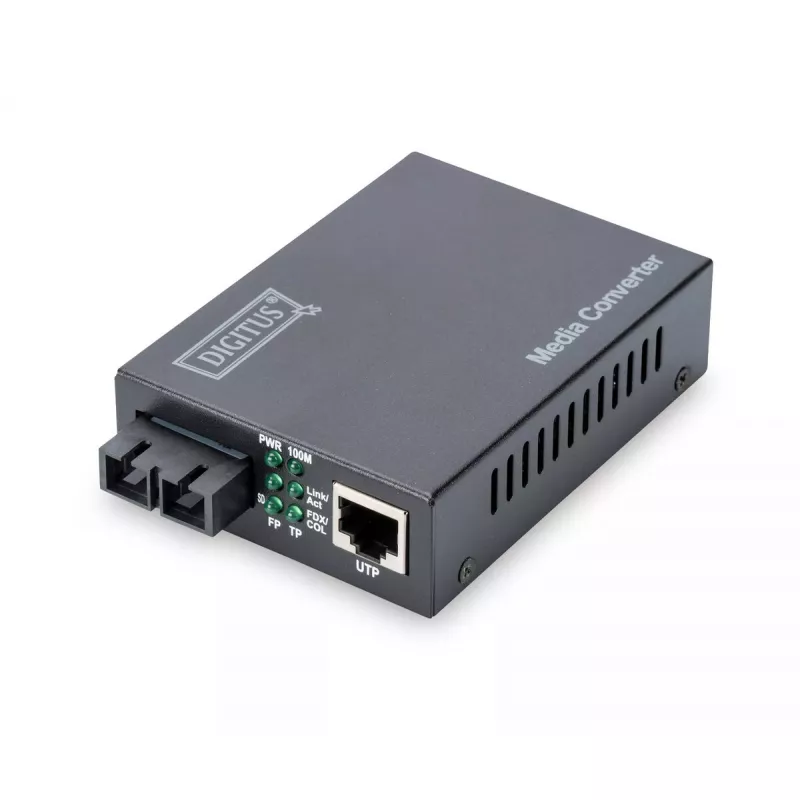

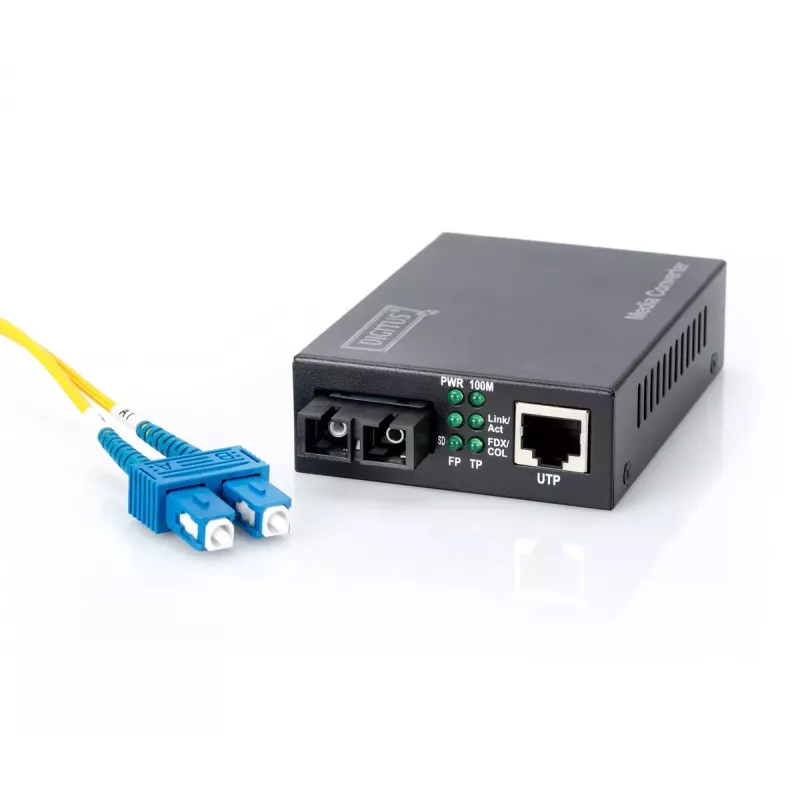

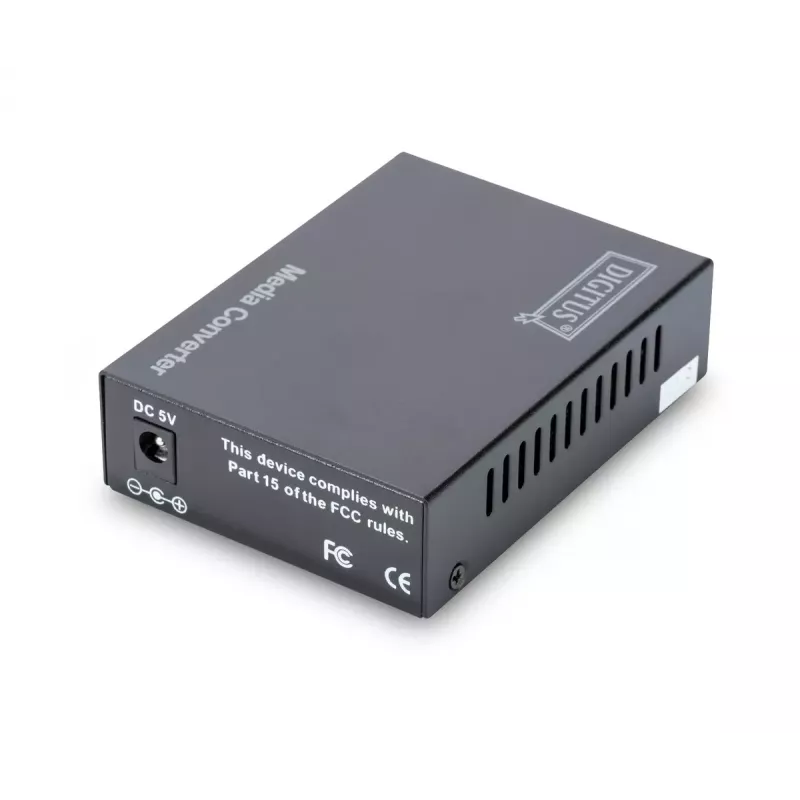

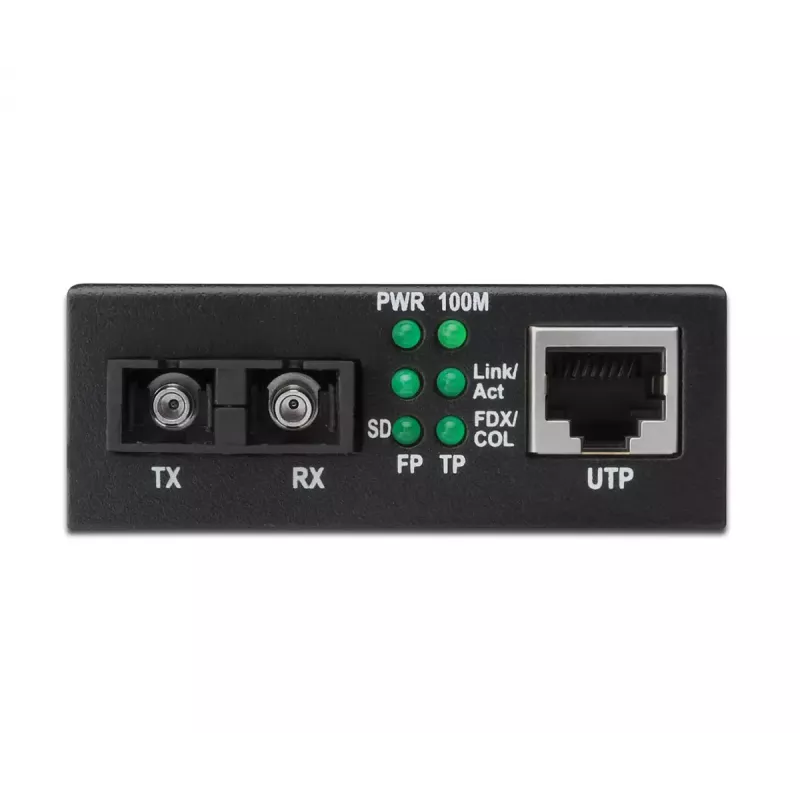

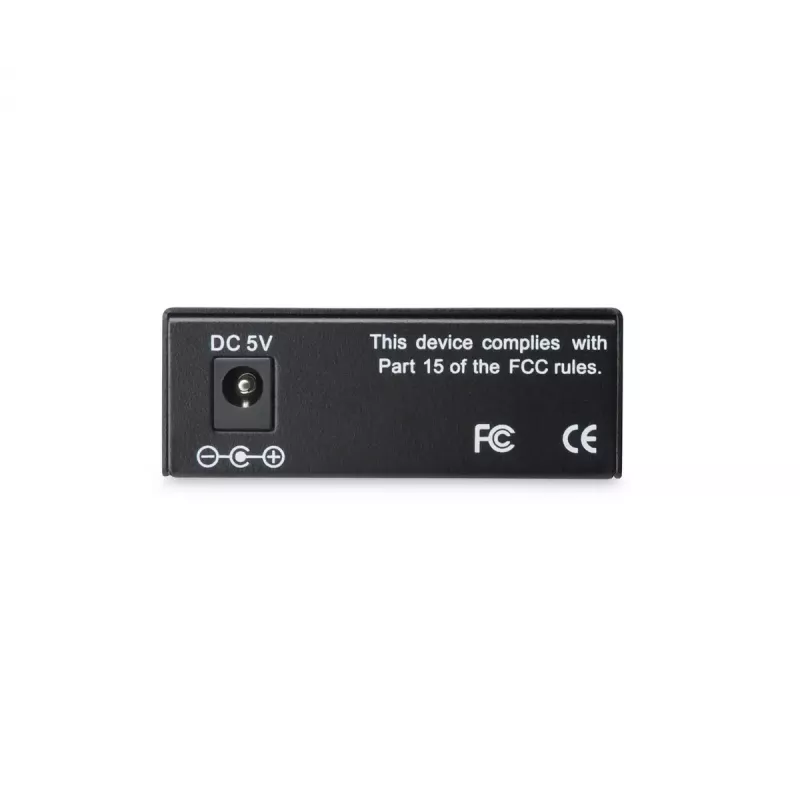

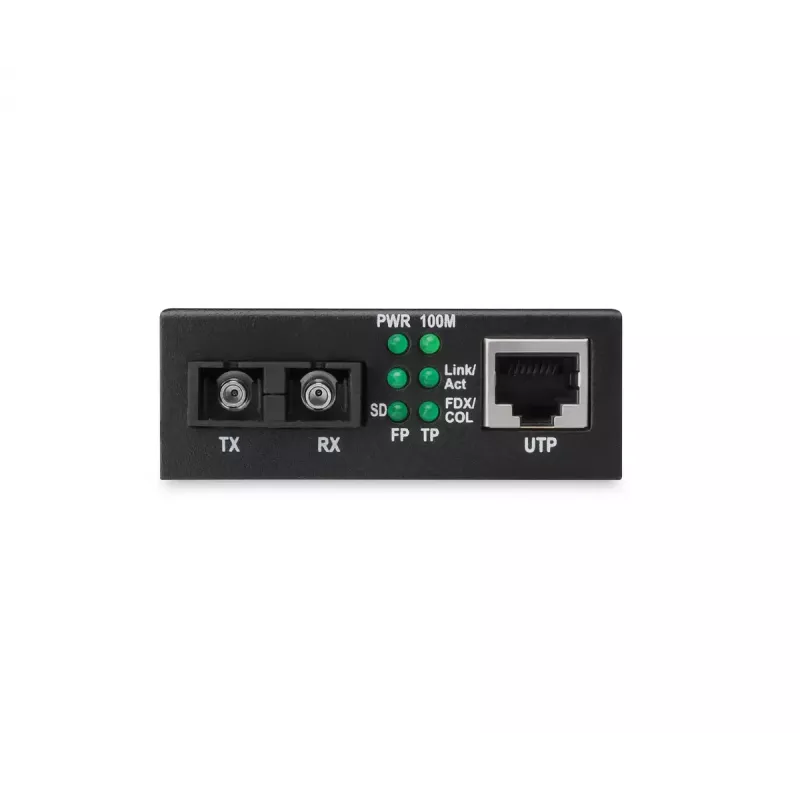

Convertitore multimediale Digitus DN-82021-1

Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
Convertitore multimediale Digitus DN-82021-1
37,63 €
PDF
PDF
Stock 1 Codice 356582 Modello DN-82021-1 Garanzia 2 anni

Spedizioni e resi

Consegna stimata venerdì 4 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

The DIGITUS Media Converter DN-82021-1 converts 100Base-TX (copper) to 100Base-FX (fiber), allowing transmission of Fast Ethernet signals over single-mode fiber up to 20 km. Compliant with IEEE 802.3 and IEEE 802.3u standards, this compact black unit uses an SC fiber connector and operates at a wavelength of 1310 nm. It is powered by 5 V with low power consumption (approx. 2.5 W) and includes LED indicators for activity, link and status to assist with monitoring.

Advantages

The converter provides reliable long-distance data transfer up to 20,000 m while preserving Fast Ethernet performance. Its compliance with established IEEE standards ensures interoperability with existing network equipment. The device is compact, energy-efficient and equipped with status LEDs for easy troubleshooting. Link Fault Pass Through functionality aids network diagnostics by propagating link failures to connected devices.

Suitable for

  • Extending Fast Ethernet links over single-mode fiber up to 20 km
  • Migrating copper-based network segments to fiber without replacing existing switches
  • Connecting distant network devices in campus, industrial or telecom environments

Key specifications

  • Model: DIGITUS DN-82021-1
  • Ethernet: 1 × RJ-45 (10/100 Mbps)
  • Fiber: 1 × SC (100Base-FX), wavelength 1310 nm
  • Maximum transfer distance: 20,000 m (single-mode)
  • Power: 5 V, approx. 2.5 W
  • Indicators: Activity, Link, Status
  • Colour: Black; Weight: 0.2 kg

How to use

Connect the RJ-45 port to the copper Ethernet device (switch, router or NIC) and insert the single-mode SC fiber cable into the SC fiber port. Apply the 5 V power supply and verify LED indicators for link and activity. The converter operates transparently and requires no software configuration; data is forwarded between the copper and fiber interfaces at Fast Ethernet speeds.

Recommendations

Install the converter in a dry, ventilated location and use single-mode SC fiber rated for 1310 nm. Keep fiber connectors clean to maintain signal quality. Use Link Fault Pass Through during troubleshooting to quickly locate link issues, and ensure connected devices support 10/100 Mbps operation.
Punti salienti
  • Extending Fast Ethernet links over single-mode fiber up to 20 km
  • Migrating copper-based network segments to fiber without replacing existing switches
  • Connecting distant network devices in campus, industrial or telecom environments
  • Model: DIGITUS DN-82021-1
  • Ethernet: 1 × RJ-45 (10/100 Mbps)
  • Fiber: 1 × SC (100Base-FX), wavelength 1310 nm
  • Maximum transfer distance: 20,000 m (single-mode)
  • Power: 5 V, approx. 2.5 W
  • Indicators: Activity, Link, Status
  • Colour: Black; Weight: 0.2 kg

Specifiche

Specifiche
Alimentatore esterno
Sì
Alimentazione via Ethernet (PoE)
No
Auto MDI/MDI-X
Sì
Codice Sistema Armonizzato (HS)
85176990
Codice tariffario doganale UK
85176200
Colore del prodotto
Nero
Connettore in fibra ottica
SC
Consumo energetico (tipico)
2.5 W
Diametri del cavo in fibra supportati (nucleo/rivestimento)
9/125
Dimensione buffer
128 KB
Dimensioni (L x A x P)
95 x 70 x 26
Distanza di trasmissione (max.)
20 km
Distanza massima di trasferimento
20000 m
Guida utente
Sì
Indicatori LED
Stato, collegamento, attività
Interfaccia di ingresso del convertitore
100Base-TX
Interfaccia di uscita del convertitore
100Base-FX
Interno
Sì
Jack DC-in
Sì
Larghezza confezione
216 mm
Lunghezza d'onda
1310 nm
Modalità della fibra
Monomodale
Numero di porte in fibra
1
Paese di origine
China
Peso
0.2 kg
Peso confezione
450 g
Porte Ethernet LAN (RJ-45)
1
Potenza Rx (min.)
-38 dBmW
Potenza Tx (max.)
-8 dBmW
Potenza Tx (min.)
-15 dBmW
Profondità confezione
60 mm
Sistema duplex
Half, Full
Standard di rete
IEEE 802.3u, IEEE 802.3
Tecnologia di connettività
Con filo
Temperatura di esercizio (T-T)
0 - 55
Tensione di ingresso
5
Tipo di interfaccia Ethernet
Fast Ethernet
Velocità di trasferimento Ethernet LAN
100, 10
Volume della confezione
2086.56 cm³
