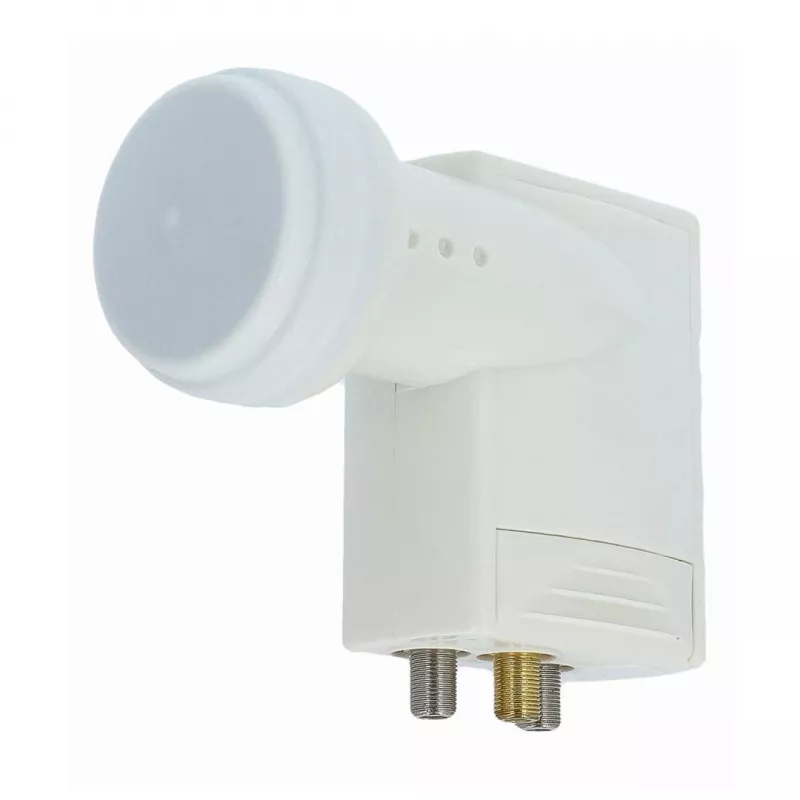

Convertitore SCR 24UB 2LEGACY Opticum Red Robust

With 24 user bands and 2 legacy outputs, this SCR converter delivers exceptional flexibility for large satellite distribution systems. The Opticum Red Robust supports both Unicable II and dCSS standards, enabling a single cable to feed up to 24 tuners simultaneously.

Overview

The Opticum SCR Converter 24UB 2LEGACY is a high-performance satellite channel router designed for modern multi-dwelling units and single-family homes with multiple receivers. It converts a universal LNB signal into 24 independent user bands, allowing each connected receiver to tune to any transponder independently. The two legacy outputs provide compatibility with traditional receivers, making it a versatile solution for mixed environments.

What stands out

• 24 user bands for extensive distribution
• 2 legacy outputs for older receivers
• Compliant with EN50494 and EN50607
• Low noise figure of 0.1 dB
• Wide input frequency range 10.7–12.75 GHz
• Robust red housing for outdoor durability

Technical details

• Input frequency: 10.7–12.75 GHz
• Low band LO: 9.75 GHz, high band LO: 10.6 GHz
• Conversion gain: 50–65 dB
• Feedhorn diameter: 40 mm
• Polarization switching: 13V/18V
• Band switching: 22 kHz tone
• DiSEqC 1.0, 1.1, 1.2, USALS on legacy outputs
• F-type connectors
• Operating temperature: -30°C to +60°C
• Power consumption: max 200 mA

Our verdict

The Opticum SCR Converter 24UB 2LEGACY is a future-proof choice for satellite distribution, offering massive capacity and backward compatibility in a rugged package.
