Cordial EM 3 MV cavo audio XLR su jack TRS 6,3 mm, 3 m, nero 14812

Connecting a microphone or balanced line-level source to a device with a 6.3mm stereo jack input often forces you to use adapters or compromise on signal quality. The Cordial EM 3 MV solves this by providing a direct, reliable link between a 3-pin XLR male connector and a 6.3mm TRS jack male connector in a single 3-meter cable.

Who is it for

This cable is for musicians, audio technicians, and home studio owners who need a dependable connection between microphones, mixers, audio interfaces, and other equipment with XLR and 6.3mm jack ports. It suits both live sound and recording environments where a balanced or stereo signal path is required.

Main features

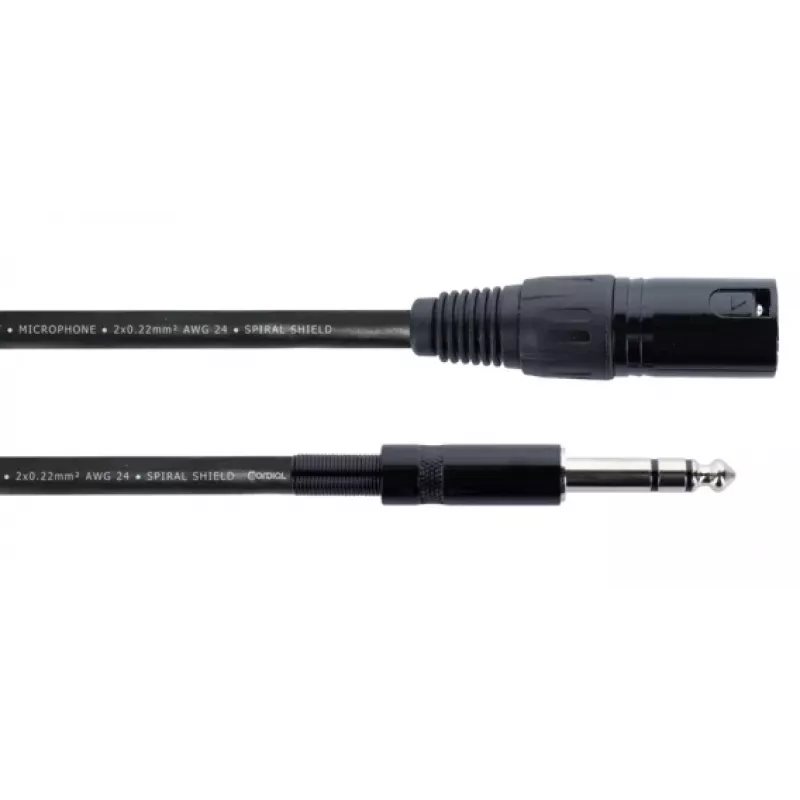

• 3-pin XLR male to 6.3mm TRS jack male connectors
• 3-meter length for flexible setup
• Oxygen-free copper (OFC) conductors, 2 x 0.22 mm² (AWG 24)
• Spiral copper shield for noise rejection
• Durable PVC jacket, black colour
• Nickel-plated REAN (by Neutrik) connectors
• Low capacitance of 60 pF/m (wire-to-wire)
• Conductor resistance: 85 Ohm/km
• Outer diameter: 6.4 mm
• Operating temperature: -20°C to +70°C

Specifications

• Brand: Cordial
• Model: EM 3 MV
• MPN: 14812
• EAN: 4250197658270
• Cable type: Audio interconnect cable
• Connector A: XLR male (3-pin)
• Connector B: 6.3mm TRS jack male
• Cable length: 3 m
• Colour: Black
• Conductor material: Oxygen-free copper (OFC)
• Conductor cross-section: 2 x 0.22 mm² (AWG 24)
• Shielding: Spiral copper shield
• Jacket material: PVC
• Connector brand: REAN (by Neutrik)
• Connector plating: Nickel
• Capacitance (wire/wire): 60 pF/m
• Outer diameter: 6.4 mm
• Operating temperature: -20°C to +70°C
• Conductor resistance: 85 Ohm/km

Tips

For best results, avoid sharp bends near the connectors and use cable ties to manage excess length. When connecting a balanced mono source, the TRS jack carries a balanced signal; for stereo unbalanced use, ensure your equipment matches the wiring configuration.
