Cornice a parete con passaggio a spazzole InLine 78501 per TV, plastica, bianco RAL9010, 80×80 mm

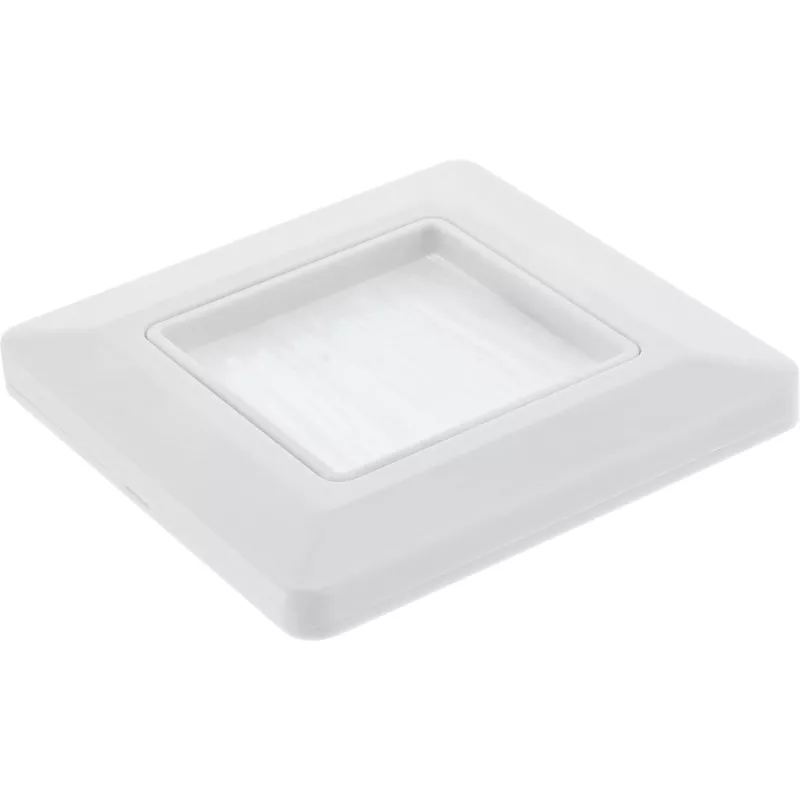

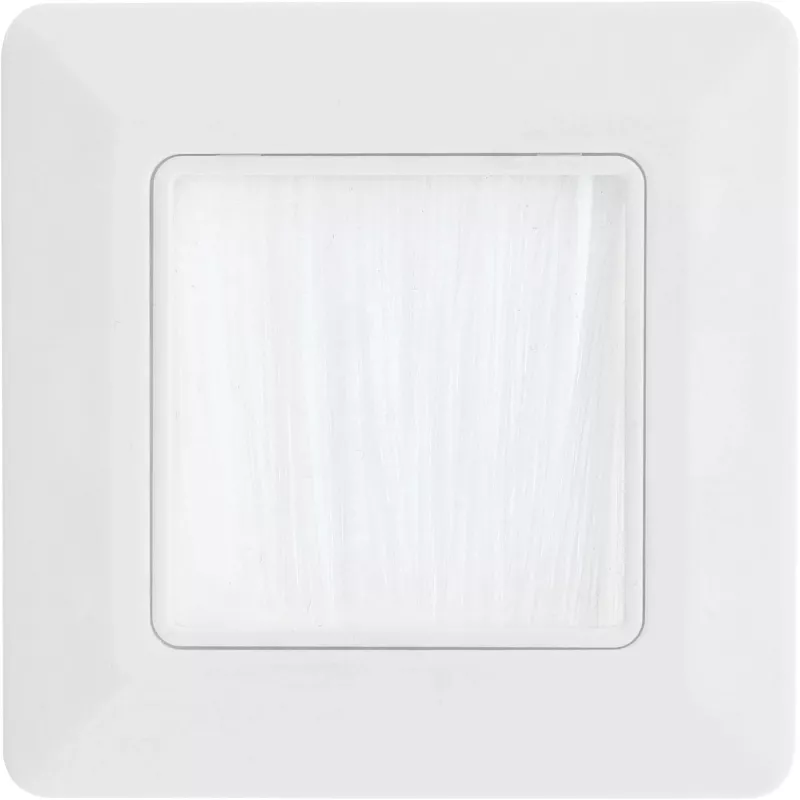

InLine wall frame with brush pass model 78501 for TV cable routing is a compact plastic frame in white (RAL9010) designed for tidy cable exits behind wall-mounted TVs and other AV installations. With outer dimensions of 80×80 mm and compatibility with standard flush-mounted boxes (80 mm format / 60 mm screw spacing), the frame provides a brush opening that allows coaxial, HDMI and power cables to pass through walls or panels while reducing visible gaps and limiting dust ingress. Supplied as a single unit in a polybag, the frame suits both domestic and office fitting requirements where a discreet cable finish is required.

Advantages

The brush insert conceals cable edges and prevents dust from entering the opening while maintaining easy access for cable insertion or removal. The plastic construction is lightweight, resists common indoor wear and offers a neutral white finish (RAL9010) that integrates with most interior surfaces. The frame’s standard dimensions and screw spacing allow direct mounting onto common flush-mounted electrical boxes, simplifying installation and reducing the need for additional wall modifications.

Suitable for (tasks / use cases)

Key specifications

How to use

Install the frame by aligning it to the flush-mounted box and securing with screws to the 60 mm screw spacing. Feed the required cables (HDMI, coaxial, power, network) through the brush opening so that the bristles close around the cables and reduce the visible gap. The brush pass allows easy insertion and removal of cables without dismantling the frame. Verify cable routing and secure any internal cable management within the wall or recessed box before finalising the frame fitment.

Recommendations

For best results, use with a compatible 80 mm format flush-mounted box and avoid forcing large connector heads through the brush; where connectors are too wide, disconnect them, pass the cable, then reconnect behind the wall. Clean the brush bristles gently if dust accumulates. The product is intended for indoor use only and should be installed in accordance with local electrical regulations when power cables are present.
