Cremagliera PSG Premium 60.050 per cancelli scorrevoli - 10 mm

The Premium PSG 60.050 toothed rack is a high-quality gear rack designed specifically for sliding gate systems. Manufactured by PSG, this rack features a durable polyamide (nylon) body with a steel core, ensuring long-lasting performance and reliability. With a module of M4 and a length of 1000 mm, it is compatible with standard sliding gate mechanisms. The rack includes three mounting holes with metal sleeves for easy installation and secure fastening. Its black color and weather-resistant properties make it suitable for outdoor use, while the low-noise operation ensures quiet gate movement.

Advantages

This toothed rack offers high mechanical strength and durability, thanks to its steel core reinforced nylon construction. It is UV and weather resistant, making it ideal for outdoor applications. The rack operates quietly, reducing noise pollution in residential areas. Easy installation with pre-drilled mounting holes saves time and effort.

Suitable for

• Sliding gate systems
• Automatic gate openers
• Industrial and residential gates

Key specifications

• Product Type: Toothed Rack / Gear Rack
• Application: Sliding Gates
• Material: Polyamide (Nylon) with Steel Core
• Module: M4
• Length: 1000 mm
• Steel Core Thickness: 10 mm
• Overall Width: 20 mm
• Overall Height: 48 mm

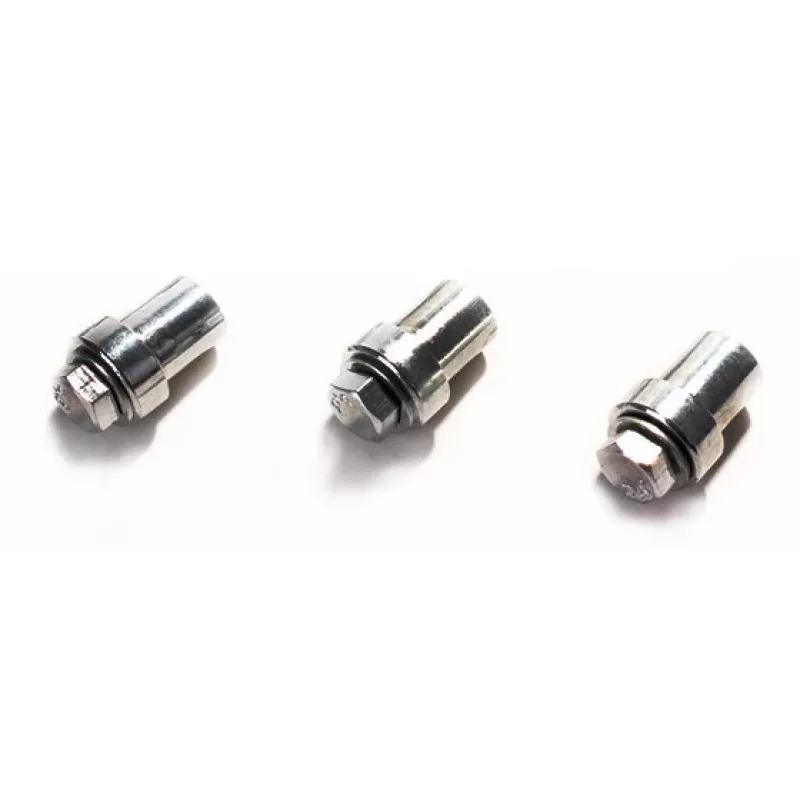

• Mounting Holes: 3 (with metal sleeves)
• Color: Black
• Operating Temperature Range: -20°C to +50°C
• Resistance: UV Resistant, Weather Resistant
• Noise Level: Low Noise Operation
• Durability: High Mechanical Strength
• Installation: Easy Installation
• Compatibility: Universal (M4 standard)

Recommendations

For optimal performance, ensure that the rack is properly aligned with the gate's drive gear. Use all three mounting holes to secure the rack firmly. Regularly inspect for wear and tear, especially in harsh weather conditions.
